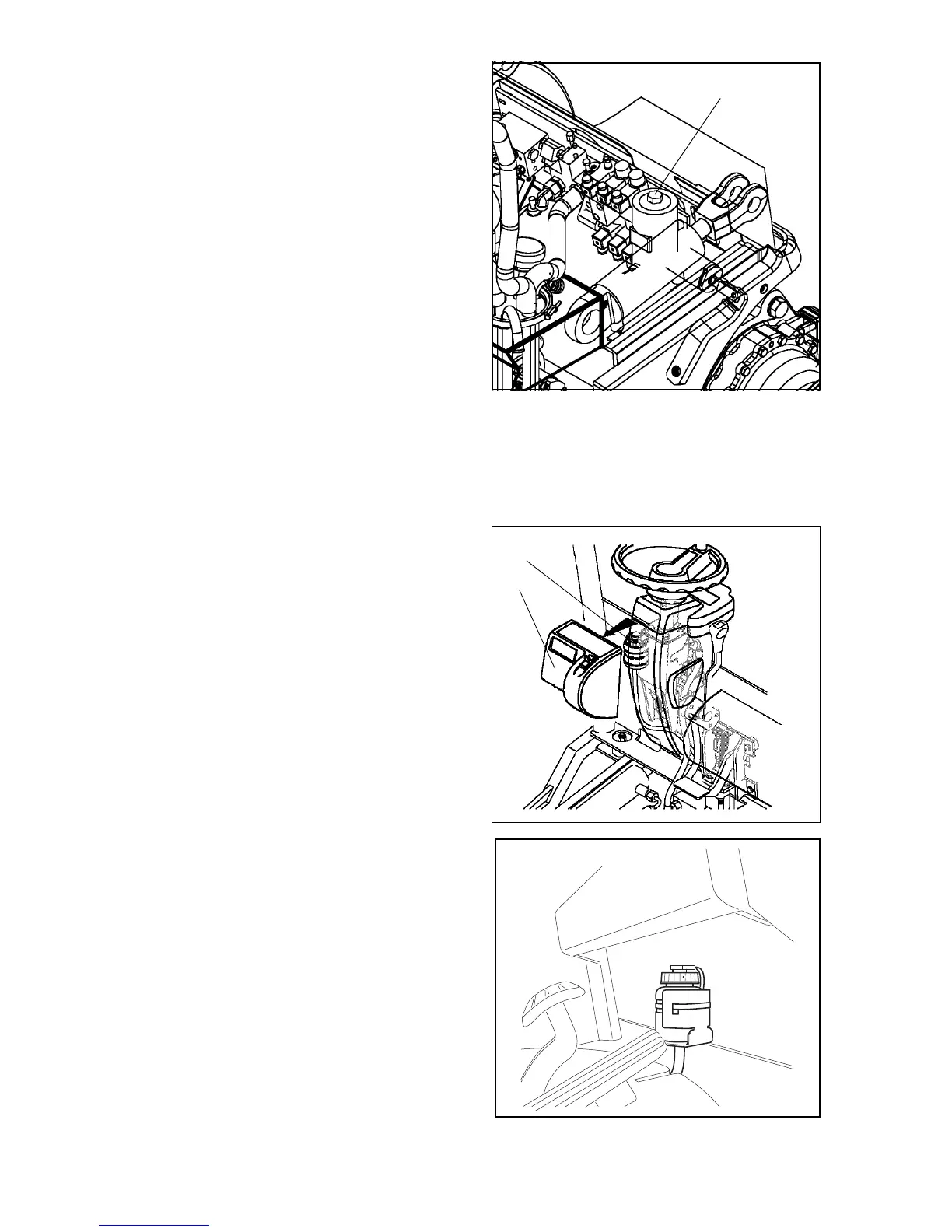

6.5 Replacing the hydraulic oil filter

The hydraulic oil filter is located on the

left hand side of the tilt cylinder and can

be accessed by removing the base

plate.

– Unscrew the hydraulic oil filter cap (5).

– Replace the filter cartridge; if the

O-ring is damaged, it must also be

replaced. Lightly oil the O-ring on

installation.

– Screw in the cap again.

6.6 Checking the brake system oil level

The brake oil container can be seen from the right side when the steering column is

tilted back.

To refill or change the mineral oil, the cover (6) must first be removed.

Do not use conventional brake fluid, refill only with prescribed mineral oil.

– Park the truck securely (See Chapter

E).

– Remove the cover (6) after loosening

the screws.

– Visually inspect the oil level on the

expansion tank (7), if necessary ( add

transmission oil (see section 5.1).

The oil level must lie between the „Min.“

and „Max.“ levels.

Used parts, oils and fuels must be

disposed of in accordance with the

applicable environmental protection

regulations.

On rotary seat trucks the brake fluid con-

tainer is clearly visible on the pedal plate.
