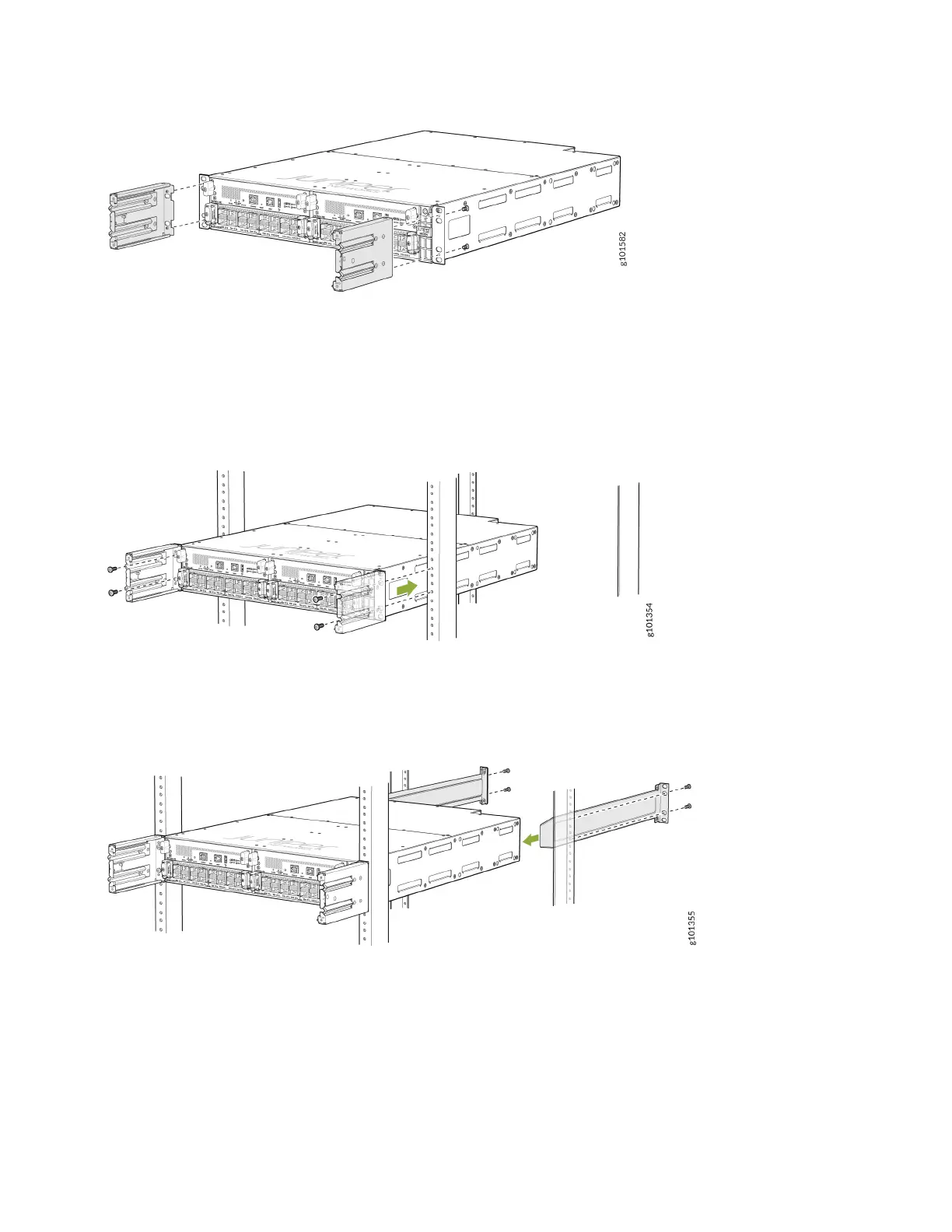

3. (Oponal) Install the cable management brackets on each side of the front of the chassis. Secure each bracket with
screws at the boom and top of the bracket as shown:
4. Posion the router in front of the four-post rack or the cabinet.
5. With one person holding on to each side of the chassis, carefully li the boom of the chassis so that rack mounng
brackets (with oponal cable management brackets) contact the rack rails.
6. Aach the chassis to the front of the rack as shown:
7. On the rear of the chassis, slide the rear-mounng brackets on both sides of the chassis unl they contact the rack
rails. Insert the rack mounng screws through the mounng brackets and mounng holes on the rack and ghten
them. Be sure to ghten the screws in the two boom holes rst, and then ghten the screws in the top two holes.
