Chapter 3: Hardware and Servicing
To remove the cable from the transceiver port:
1. Make sure the transceiver latch is in a secured locked position (the latch is flat
against the front of the transceiver). Otherwise, when you attempt to remove
the cable, the transceiver might come out with the cable still attached.

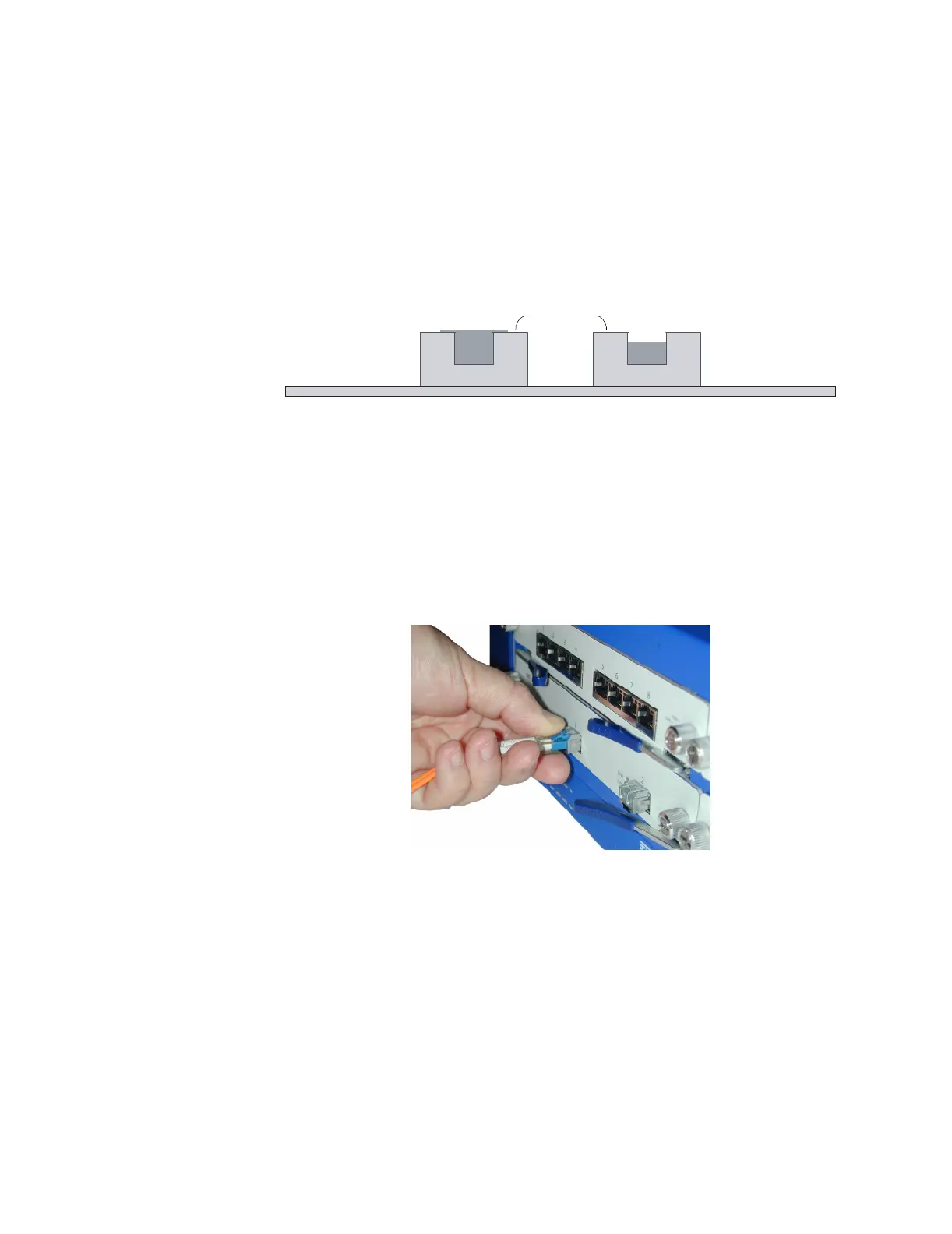

Figure 22: Checking that the Transceiver Latch is Locked
2. Hold the connector between your thumb and forefinger, with your thumb on
top and your forefinger underneath.
3. Using your thumb, press the connector release down, then forward. This action
loosens the connector from the transceiver port.
Figure 23: Ejecting the Cable
4. Gently, but firmly, pull the clip from the transceiver port.
Locked Position
Latch is fully extended.
Unlocked Position
Latch is pressed in.
View of transceiver
from below
Latch
Latch
Transceiver Transceiver
Front Edge
