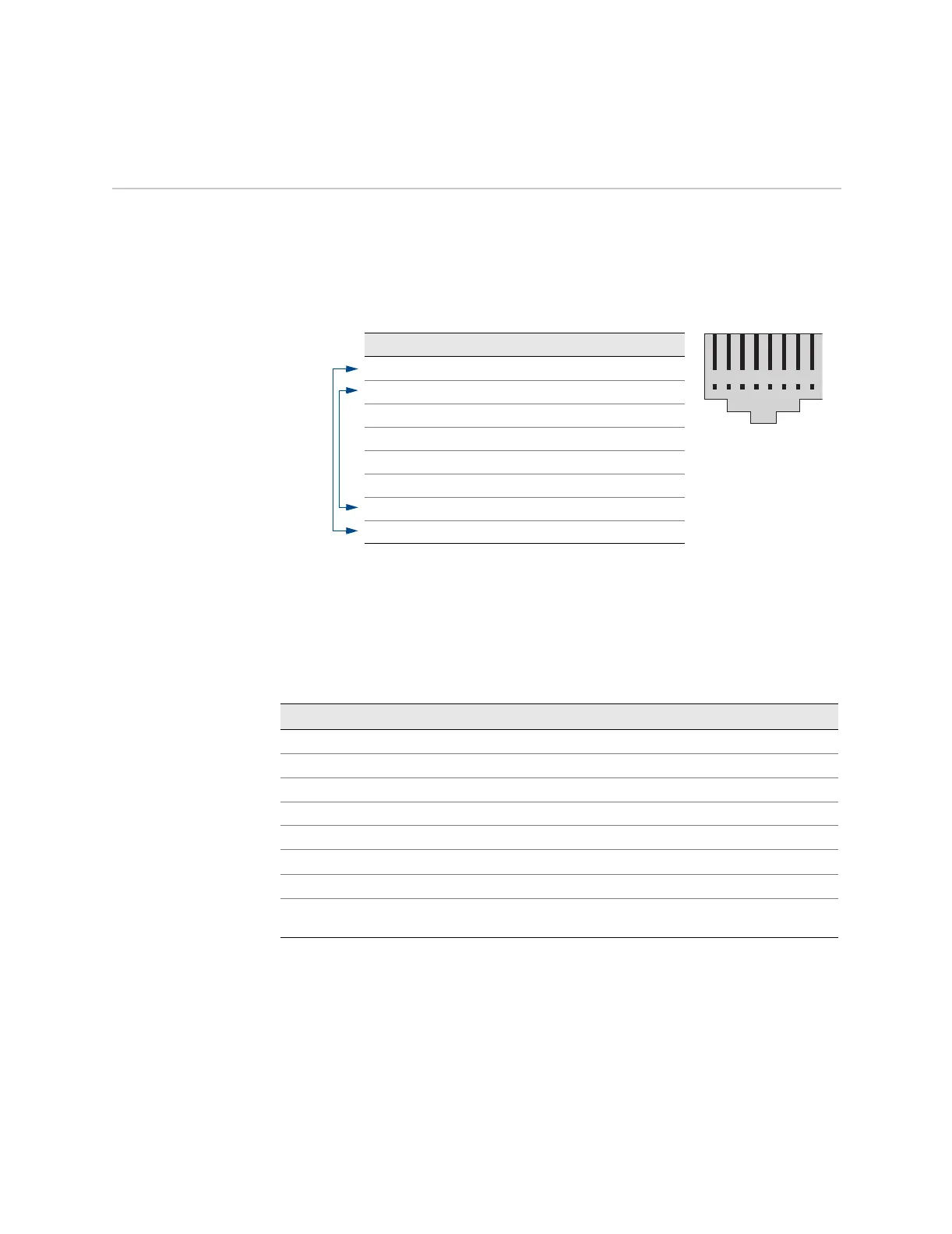

The following table lists the RJ-45 connector pinout for both the console and
modem ports.
Table 2: Console and Modem Port Pinouts
The mini-gigabit transceivers are compatible with the IEEE 802.3z Gigabit Ethernet
standard. The following table lists media types and distances for the different types
of interfaces used in the NetScreen-ISG 2000.
Table 3: Interface Media Types and Maximum Distances
Standard Media Type Maximum Distance
1000 Base-SX 50/125 m Multimode Fiber 500 meters
50/125 m Multimode Fiber 550 meters
62.5/125 m Multimode Fiber 220 meters
62.5/125 m Multimode Fiber 275 meters
1000 Base-LX 50/125 m Multimode Fiber 550 meters
62.5/125 m Multimode Fiber 550 meters
9/125 Single-mode Fiber 10,000 meters
100 Base-TX Category 5 and higher
Unshielded Twisted Pair (UTP) Cable
100 meters
81234567
Pin Signal Abbreviation DCE
1 Request to Send RTS IN
2 Data Terminal Ready DTR IN
3 Transmitted Data TX IN
4 Signal Ground SGDN N/A
5Open
6 Received Data RX OUT
7 Data Set Ready DSR OUT
8 Clear to Send CTS OUT
Loop
Back
