The LTE Mini-PIM ships with a SIM slot cover as shown in Figure 2 on page 3.

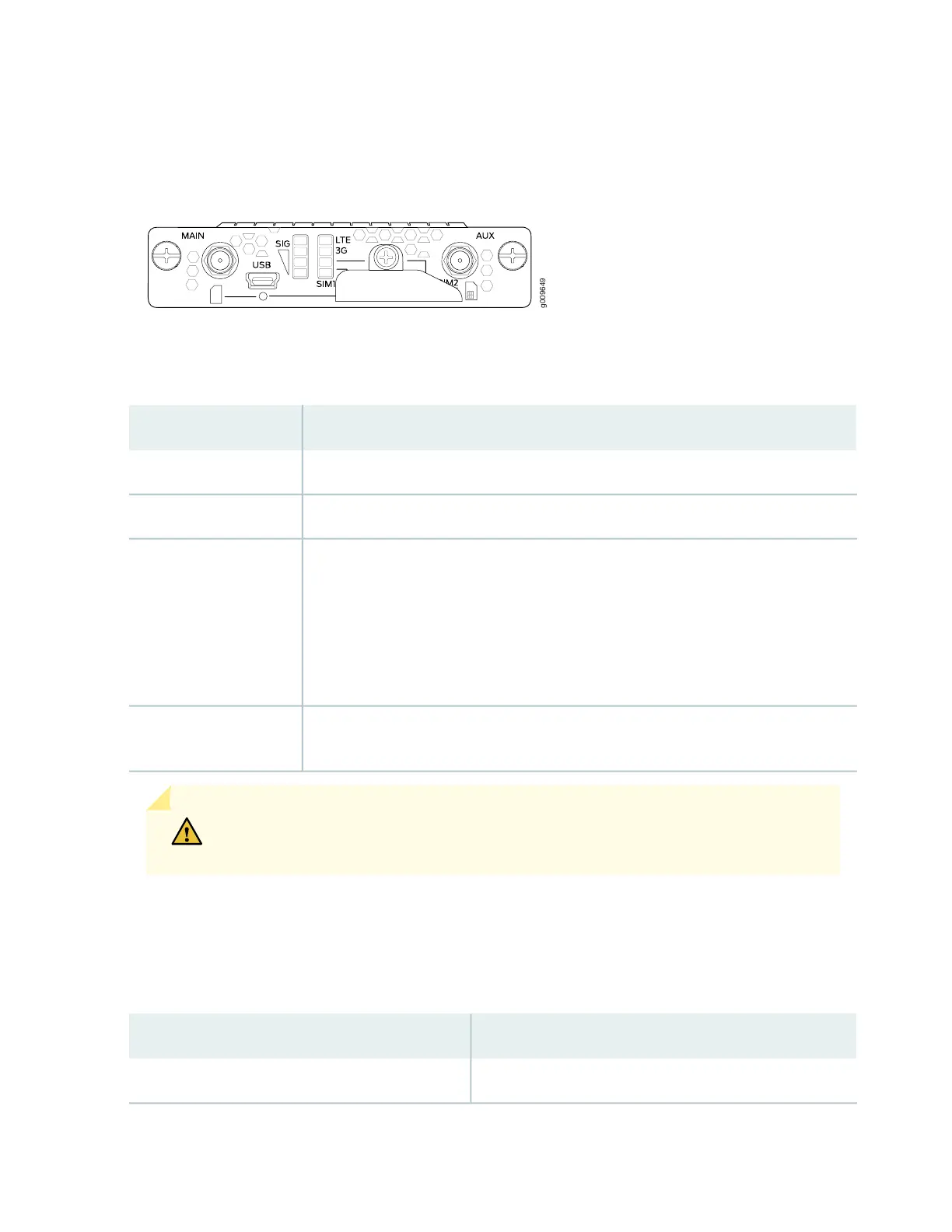

Figure 2: LTE Mini-PIM Front Panel (with the SIM Slot Cover)
g009649
Table 3 on page 3 lists the components on the front panel of the Mini-PIM.
Table 3: LTE Mini-PIM Front Panel Components
DescriptionComponent
Two SubMiniature version A (SMA) connectors.Antenna connectors
Mini-USB Type-B port for monitoring and troubleshooting.Mini-USB port
Two slots, SIM1 and SIM2, for inserting the SIM cards. The LTE Mini-PIM supports mini,
micro, and nano SIMs. The mini-SIM can be inserted directly in the SIM slot. To insert
micro and nano SIMs, use the SIM adapters supplied with the Mini-PIM. The Mini-PIM is
shipped with two SIM adapters.
CAUTION: SIM cards are not hot-swappable. You must power off the services gateway
before removing or inserting a SIM card.
SIM slots
Indicate the status at a glance. For details on the LED indications, see LTE Mini-Physical
Interface Module LEDs.
LEDs
CAUTION: The LTE Mini-PIM is not hot-swappable. You must power off the services
gateway before removing or installing the Mini-PIM.
The LTE Mini-PIM supports two multi-band swivel-mount dipole antennas, which can be rotated 360 °.
You can rotate the antennas and select the angle at which the signal strength is high. Table 4 on page 3
lists the specifications for the antenna.
Table 4: Specifications for the LTE Mini-PIM Antenna
ValueSpecification
EDA-2010-4G0R2-A2 (Vendor: MAG.LAYERS)Part number
