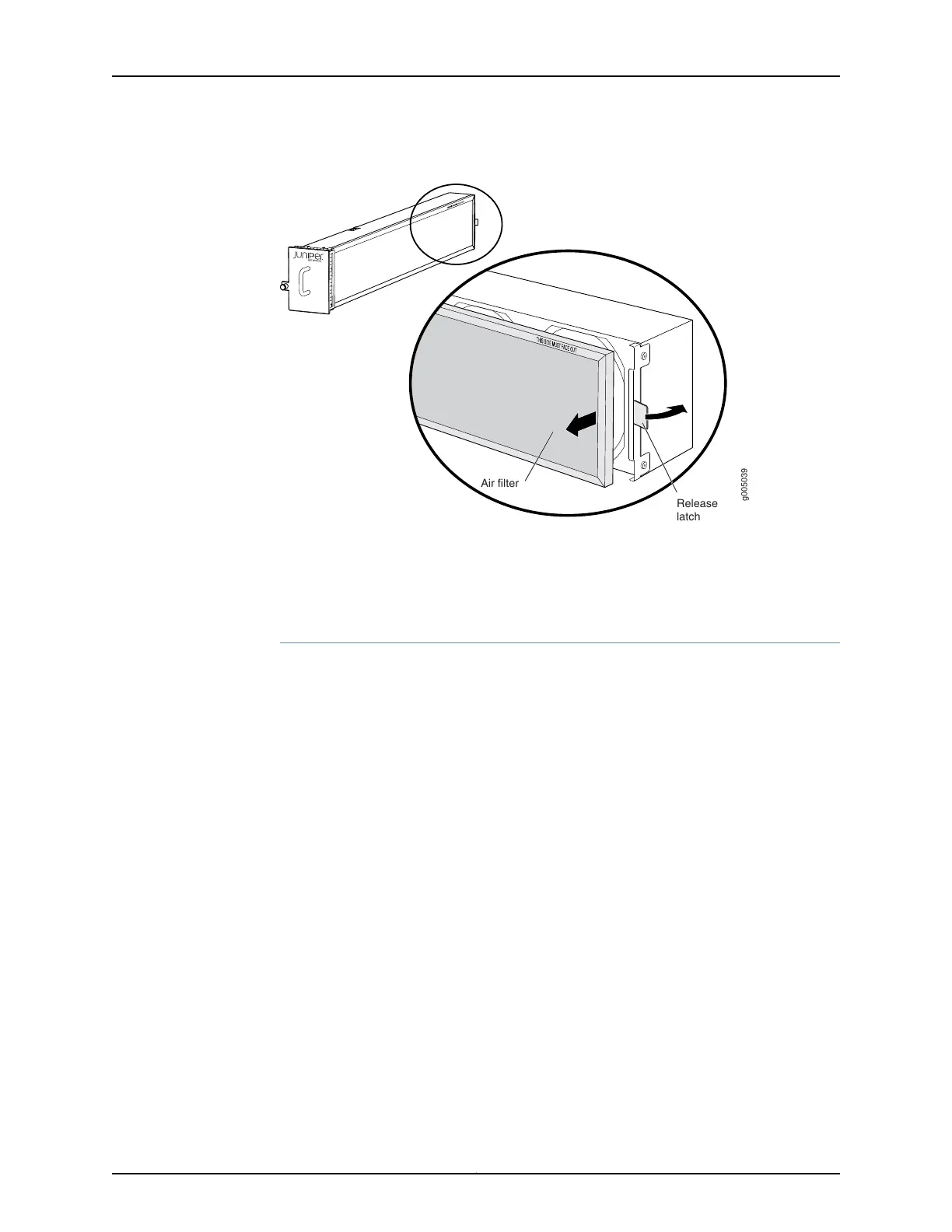

Figure 39: Removing the Air Filter

g005039

Air filter

Release

latch

See Also Preventing Electrostatic Discharge Damage to an MX5, MX10, MX40, and MX80 Router

on page 146

•

Installing an MX5, MX10, MX40, and MX80 Air Filter

The air filter installs on the right side of the fan tray. To install the air filter (see

Figure 40 on page 101):

1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the

ESD points on the chassis.

2. Locate the THIS SIDE MUST FACE OUT label, and ensure that the air filter is right side

up.

3. Insert the air filter into the groove located toward the front of the fan tray.

4. Press the tab on the rear of the fan tray to allow the air filter to slide into place.

5. Release the tab to secure the air filter.

MX5, MX10, MX40, and MX80 Universal Routing Platforms Hardware Guide
