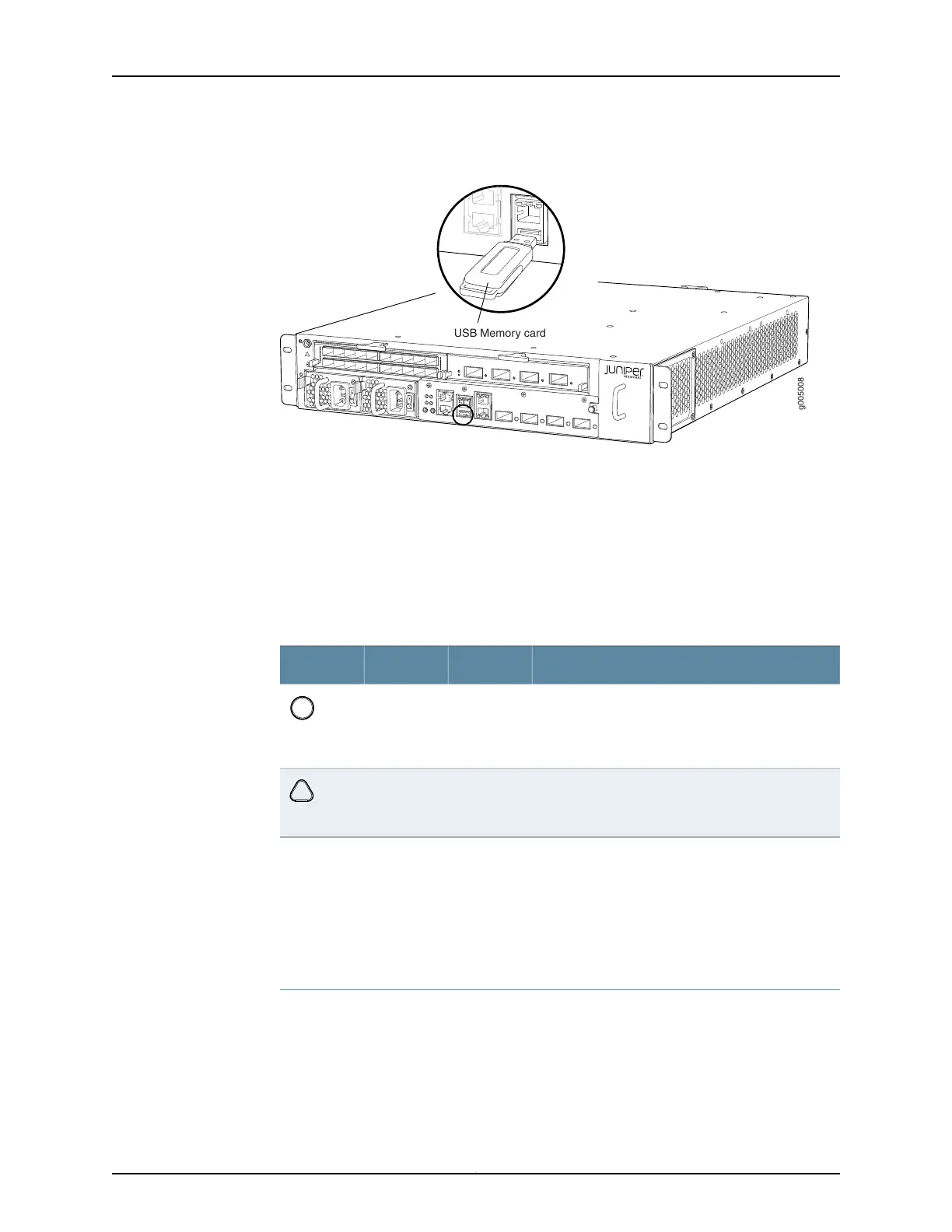

Figure 14: USB Memory Device in an MX5, MX10, MX40, and MX80 Router
g005008
USB Memory card
Alarm LEDs on the MX5, MX10, MX40, and MX80 Front Panel
Two alarm LEDs are located at the left of the front panel. The circular red LED lights to
indicate a critical condition that can result in a system shutdown. The triangular yellow
LED lights to indicate a less severe condition that requires monitoring or maintenance.
Both LEDs can be lit simultaneously.
Table 8 on page 30 describes the alarm LEDs in more detail.
Table 8: Alarm LEDs on the MX5, MX10, MX40, and MX80 Front Panel
DescriptionStateColorShape
Critical alarm LED—Indicates a critical condition that
can cause the router to stop functioning. Possible
causes include component removal, failure, or
overheating.
On steadilyRed
Warning alarm LED—Indicates a serious but nonfatal
error condition, such as a maintenance alert or a
significant increase in component temperature.
On steadilyYellow
Component LEDs on the MX5, MX10, MX40, and MX80 Front Panel
Link LEDs on the Front Panel on page 30
Routing Engine LED on the Front Panel on page 31
System LED on the Front Panel on page 31
Link LEDs on the Front Panel
The front panel has a 10-Gigabit Ethernet MIC with four ports for uplink connections.
Each port has one LINK LED located to the right of the port. Table 9 on page 31 describes
the link LEDs in more detail.
Copyright © 2019, Juniper Networks, Inc.30
MX5, MX10, MX40, and MX80 Universal Routing Platforms Hardware Guide
