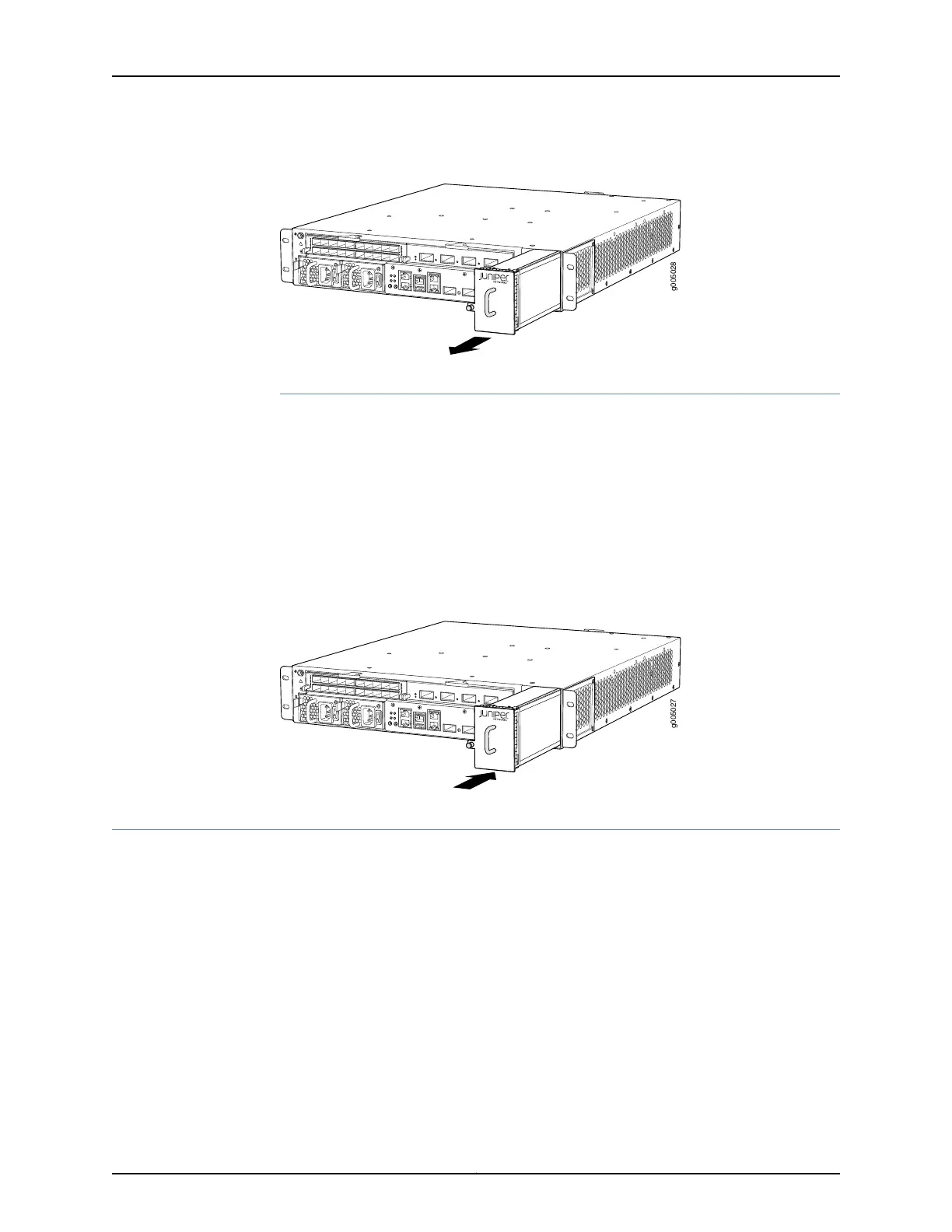

Figure 41: Removing the Fan Tray
g005028
Installing an MX5, MX10, MX40, and MX80 Fan Tray
To install the fan tray (see Figure 42 on page 103):
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Grasp the fan tray handle, and insert it straight into the chassis.
3. Tighten the captive screw on the fan tray faceplate to secure it in the chassis.
Figure 42: Installing the Fan Tray
g005027
Maintaining the MX5, MX10, MX40, and MX80 MICs and Transceivers
•
Maintaining the MX5, MX10, MX40, and MX80 MICs on page 103
•
Replacing an MX5, MX10, MX40, and MX80 MIC on page 104
•
Replacing an MX5, MX10, MX40, and MX80 SFP or XFP Transceiver on page 111
•
Maintaining Cables That Connect to MX5, MX10, MX40, and MX80 MICs on page 113
Maintaining the MX5, MX10, MX40, and MX80 MICs
Purpose For optimum router performance, verify the condition of the MICs.
103Copyright © 2019, Juniper Networks, Inc.
Chapter 4: Maintaining Components

Juniper MX5 Specifications

General

Model	MX5
Category	Network Router
Throughput	20 Gbps
Operating System	Junos OS
Product Type	Modular Router
Switching Capacity	80 Gbps
MPLS	Yes
IPv6 Support	Yes
Power Supply	AC or DC
Routing Protocols	BGP, OSPF, IS-IS, RIP
Operating Temperature	0°C to 40°C
Memory	4 GB
Redundancy	Power supply redundancy
Storage	8 GB
