Juniper MX5 Hardware Guide

•
MX5 router: Allows usage of the MIC slot labeled 1/MIC 0, which comes prepopulated
with the Gigabit Ethernet MIC with SFP.

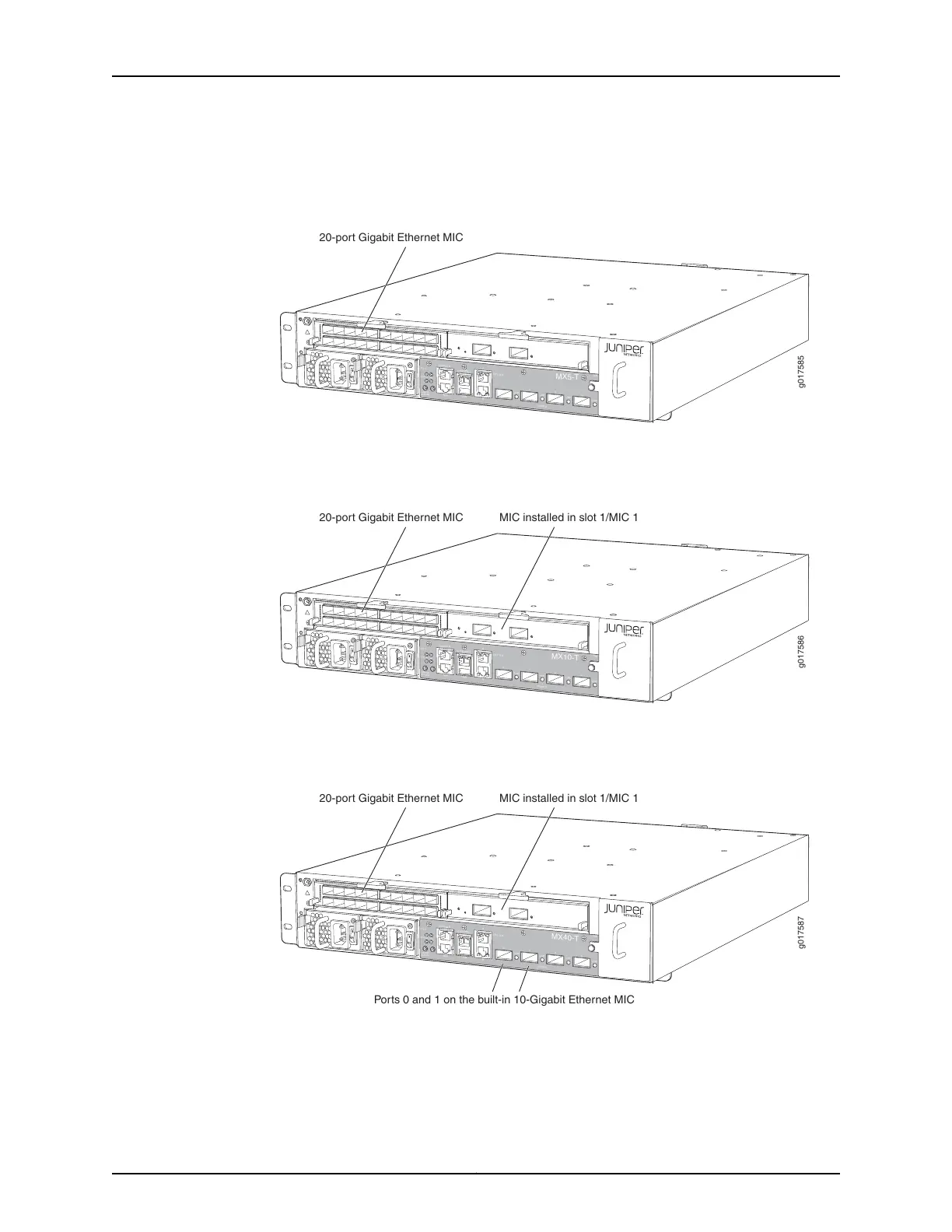

Figure 1: MX5 Router
g017585
MX5-T
SYS OK
ONLINE
OFFLINE
RE
CONSOLE
ETHERNET
A
B
AUX
USB
EXT CLK
FAN
0/ MIC 0
PS 1
0
1
2
3
LINK
LINK
LINK
LINK
20-port Gigabit Ethernet MIC
•
MX10 router: Allows usage of the MIC slot labeled 1/MIC 0, which comes prepopulated
with the Gigabit Ethernet MIC with SFP and the second MIC slot labeled 1/MIC 1.
Figure 2: MX10 Router
g017586
SYS OK
ONLINE
OFFLINE
RE
CONSOLE
ETHERNET
A
B
AUX
USB
EXT CLK
FAN
0/ MIC 0
PS 1
0
1
2
3
LINK
LINK
LINK
LINK
MX10-T
20-port Gigabit Ethernet MIC
MIC installed in slot 1/MIC 1
•
MX40 router: Allows usage of the front MIC slots and ports 0 and 1 of the built-in
10-Gigabit Ethernet MIC (labeled 0/MIC 0).
Figure 3: MX40 Router
g017587
SYS OK
ONLINE
OFFLINE
RE
CONSOLE
ETHERNET
A
B
AUX
USB
EXT CLK
FAN
0/ MIC 0
PS 1
0
1
2
3
LINK
LINK
LINK
LINK
MX40-T
20-port Gigabit Ethernet MIC
MIC installed in slot 1/MIC 1
Ports 0 and 1 on the built-in 10-Gigabit Ethernet MIC
•
MX80 router: Allows usage of all MIC slots (front and back) and all four ports of the
built-in 10-Gigabit Ethernet MIC (labeled 0/MIC 0).
21Copyright © 2019, Juniper Networks, Inc.
Chapter 1: Overview

Juniper MX5 Specifications

General

Model	MX5
Category	Network Router
Throughput	20 Gbps
Operating System	Junos OS
Product Type	Modular Router
Switching Capacity	80 Gbps
MPLS	Yes
IPv6 Support	Yes
Power Supply	AC or DC
Routing Protocols	BGP, OSPF, IS-IS, RIP
Operating Temperature	0°C to 40°C
Memory	4 GB
Redundancy	Power supply redundancy
Storage	8 GB
