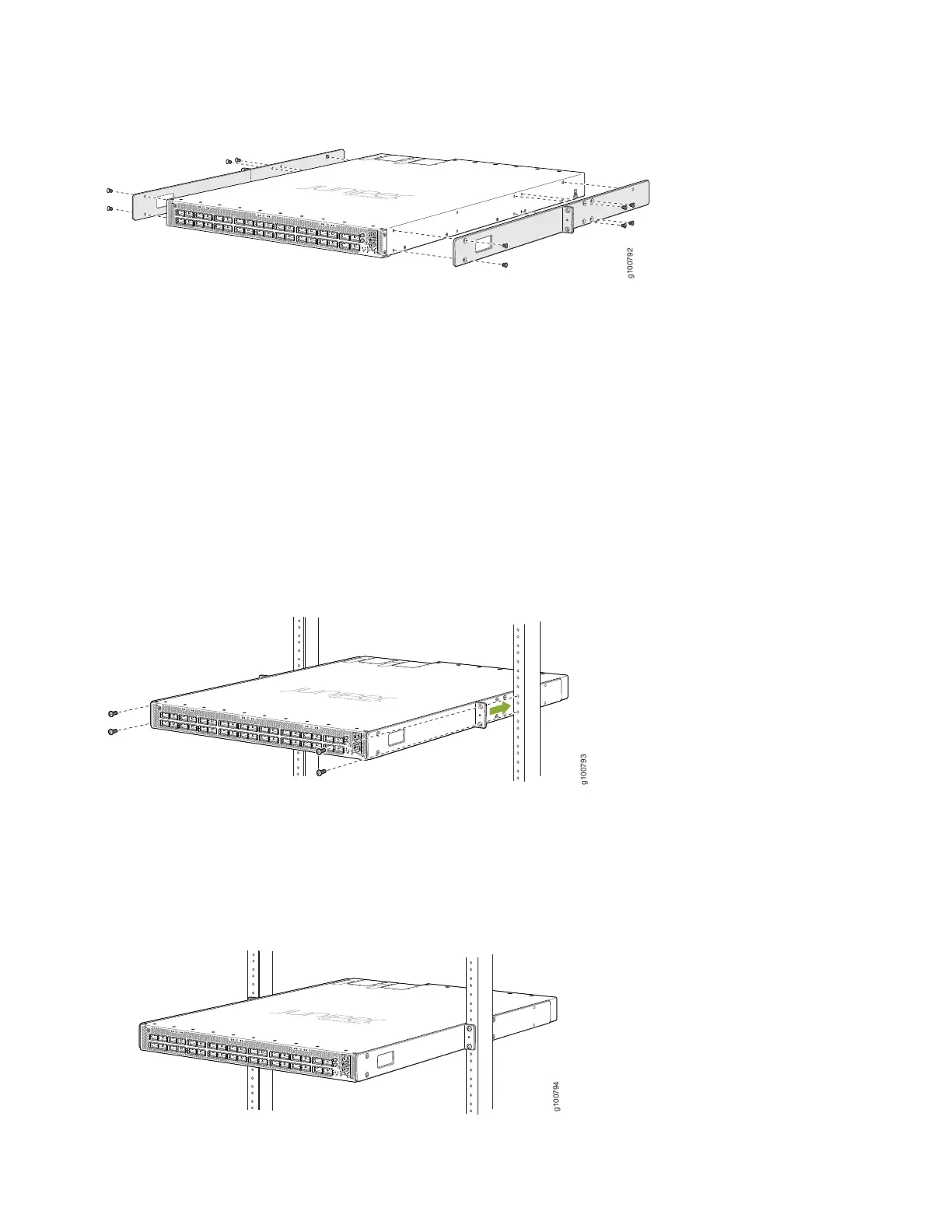

Figure 5: Attach the Two Post Mounting Brackets to the PTX10001-36MR
4. Attach the mounting bracket to the device using the mounting screws. Tighten the screws.
5. Repeat Step 3 and Step 4 on the opposite side of the device.
6. Have one person grasp both sides of the device, lift it, and position it in the rack so that the bracket is aligned with the
rack holes.
7. Have a second person secure the device to the rack by using the appropriate mounting screws (and cage nuts and
washers if your rack requires them). Tighten the screws. See Figure 6.
Figure 6: Attach the PTX10001-36MR to a Two-Post Rack
8. Ensure that the device is level by verifying that all the screws on one side of the rack are aligned with the screws on
the other side of the rack.
Figure 7: The PTX10001-36MR Secured in a Two-Post Rack
