Task 2: Connect the Power Cable and a Power Source
Connect the power cable to the device and a power source. We recommend using a
surge protector. Note the following indications:
POWER LED (green): The device is receiving power.
STATUS LED (green): The device is operating normally.
ALARM LED (amber): The device is operating normally, and may glow amber as a
rescue configuration has not been set. This is not a panic condition.
NOTE: After a rescue configuration has been set, an amber ALARM LED indicates a
minor alarm, and a solid red ALARM LED indicates a major problem on the services
gateway.
You must allow the device between 5 and 7 minutes to boot up after you power it on.
Wait until the STATUS LED is solid green before proceeding to the next task.
Task 3: Connect the Management Device
Connect the management device to the services gateway using either of the following
methods:
Connect an RJ-45 cable (Ethernet cable) from any one port between the
ports labeled 0/1 and 0/7 (interfaces fe-0/0/1 through fe-0/0/7) on the front
panel to the Ethernet port on the management device (workstation or laptop):
We recommend this connection method. If you are using this method to
connect, proceed with Task 4.
Connect an RJ-45 cable (Ethernet cable) from the port labeled CONSOLE to
the supplied DB-9 adapter, which then connects to the serial port on the
management device. (Serial port settings: 9600 8-N-1.)
If you are using this method to connect, proceed with the CLI configuration
instructions in the Getting Started Guide for the Branch SRX Series at
http://www.juniper.net/techpubs/en_US/junos12.1x46/information-products
/topic-collections/security/software-all/getting-started-guide/
security-getting-started-guide.pdf.

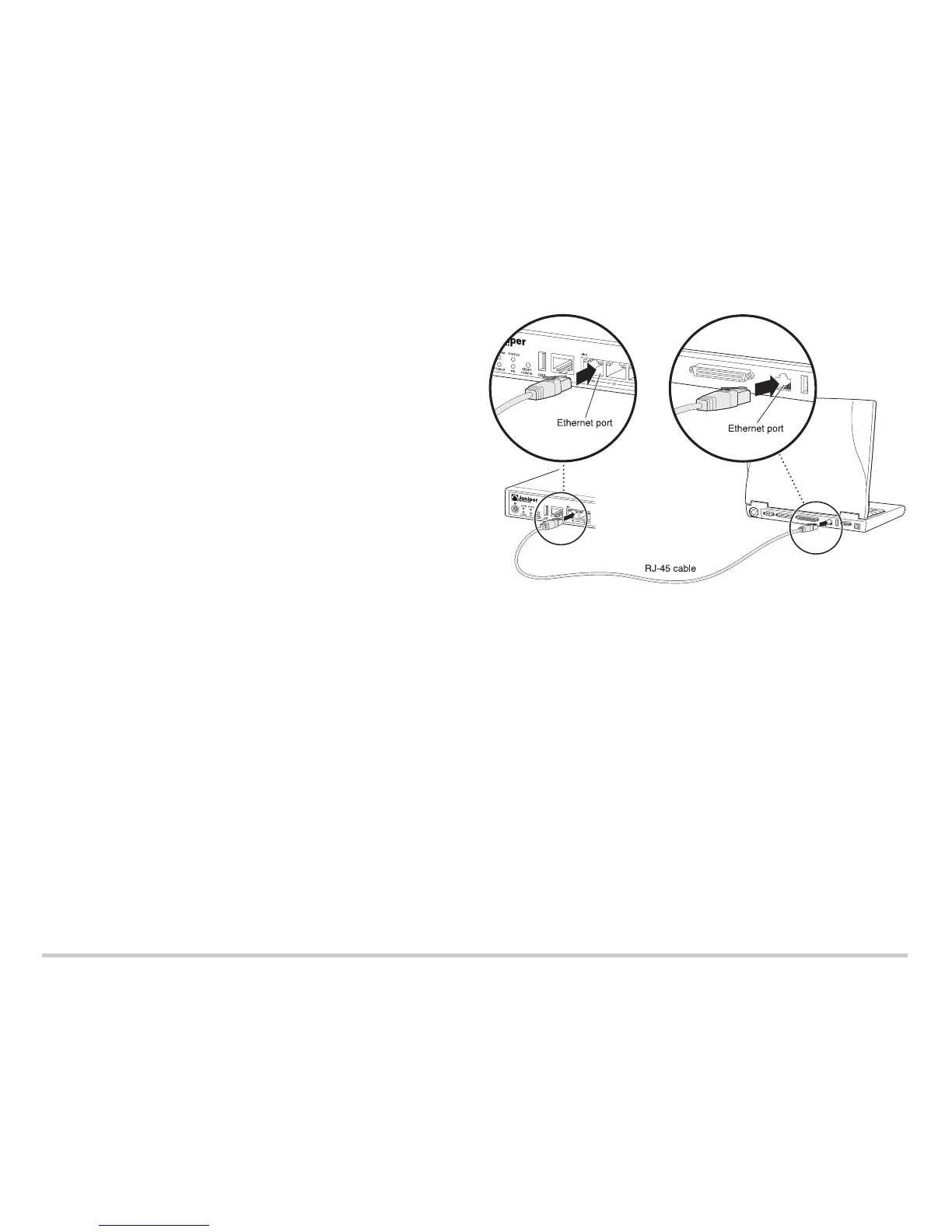

See the illustration below for details on connecting a management interface.
Task 4: Ensure That the Management Device Acquires an IP Address
After you connect the management device to the services gateway, the DHCP server
process on the services gateway will assign an IP address automatically to the
management device. Ensure that the management device acquires an IP address on the
192.168.1.0/24 subnetwork (other than 192.168.1.1) from the device.
NOTE: The services gateway functions as a DHCP server and will assign an IP address
to the management device.
If an IP address is not assigned to the management device, manually configure an
IP address in the 192.168.1.0/24 subnetwork. Do not assign the 192.168.1.1 IP
address to the management device, as this IP address is assigned to the services
gateway. By default, the DHCP server is enabled on the L3 VLAN interface, (IRB)
vlan.0 (interface fe-0/0/1 to fe-0/0/7), which is configured with an IP address of
192.168.1.1/24.
When an SRX100 Services Gateway is powered on for the first time, it boots using
the factory-default configuration.
