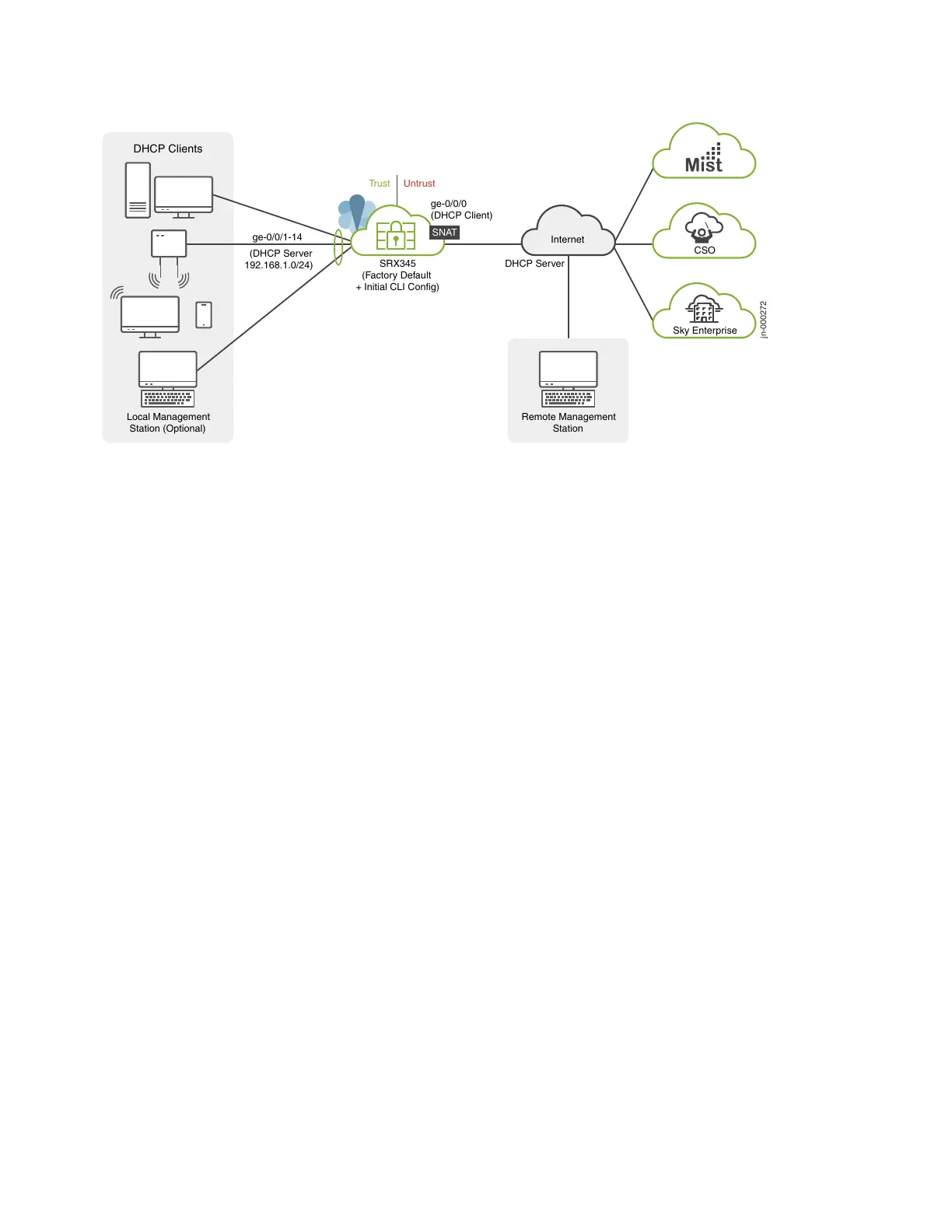

Juniper SRX345 User Manual

jn-000272
Sky Enterprise
Remote Management
Station
SRX345
(Factory Default
+ Initial CLI Config)
DHCP Clients
Internet
CSO
DHCP Server
UntrustTrust
ge-0/0/0
(DHCP Client)
SNAT
(DHCP Server
192.168.1.0/24)
Local Management
Station (Optional)
ge-0/0/1-14
A few things to keep in mind about your new SRX345 branch network:
•
You access the SRX CLI or J-Web user interface locally using the 192.168.1.1 address. To access the SRX remotely,
specify the IP address assigned by the WAN provider. Simply issue a show interfaces ge-0/0/0 terse CLI command to
confirm the address in use by the WAN interface.
•
The management interface is configured as a DHCP server for the 192.168.1.0/24 subnet.
•
Devices attached to the LAN ports are configured to use DHCP. They receive their network configuration from the
SRX. These devices obtain an IP address from the 192.168.2.0/24 address pool and use the SRX as their default gateway.
•
All LAN ports are in the same subnet with Layer 2 connectivity. All traffic is permitted between trust zone interfaces.
•
All traffic originating in the trust zone is permitted in the untrust zone. Matching response traffic is allowed back from
the untrust to the trust zone. Traffic that originates from the untrust zone is blocked from the trust zone.
•
The SRX performs source NAT (S-NAT) using the WAN interface’s IP for traffic sent to the WAN that originated from
the trust zone.
•
Traffic associated with specific system services (HTTPS, DHCP, TFTP, and SSH) is permitted from the untrust zone to
the local host. All local host services and protocols are allowed for traffic that originates from the trust zone.
10

Juniper SRX345 Specifications

General

USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	8
Flash memory	8000 MB
Internal memory	4000 MB
Certification	FCC A, RoHS 2
Rack capacity	1U
Heat dissipation	420 BTU/h
Power consumption (typical)	122 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Routing protocols	BGP, CLNS, MPLS, OSPF, RIP-1, RIP-2
Supported network protocols	IPv4, IPv6
Firewall security	Yes
Security algorithms	IPSEC, SSL/TLS
Networking standards	IEEE 802.1p
Ethernet LAN data rates	10, 100, 1000 Mbit/s

Weight and Dimensions

Weight	4900 g
Dimensions (WxDxH)	440.9 x 370.1 x 43.6 mm
