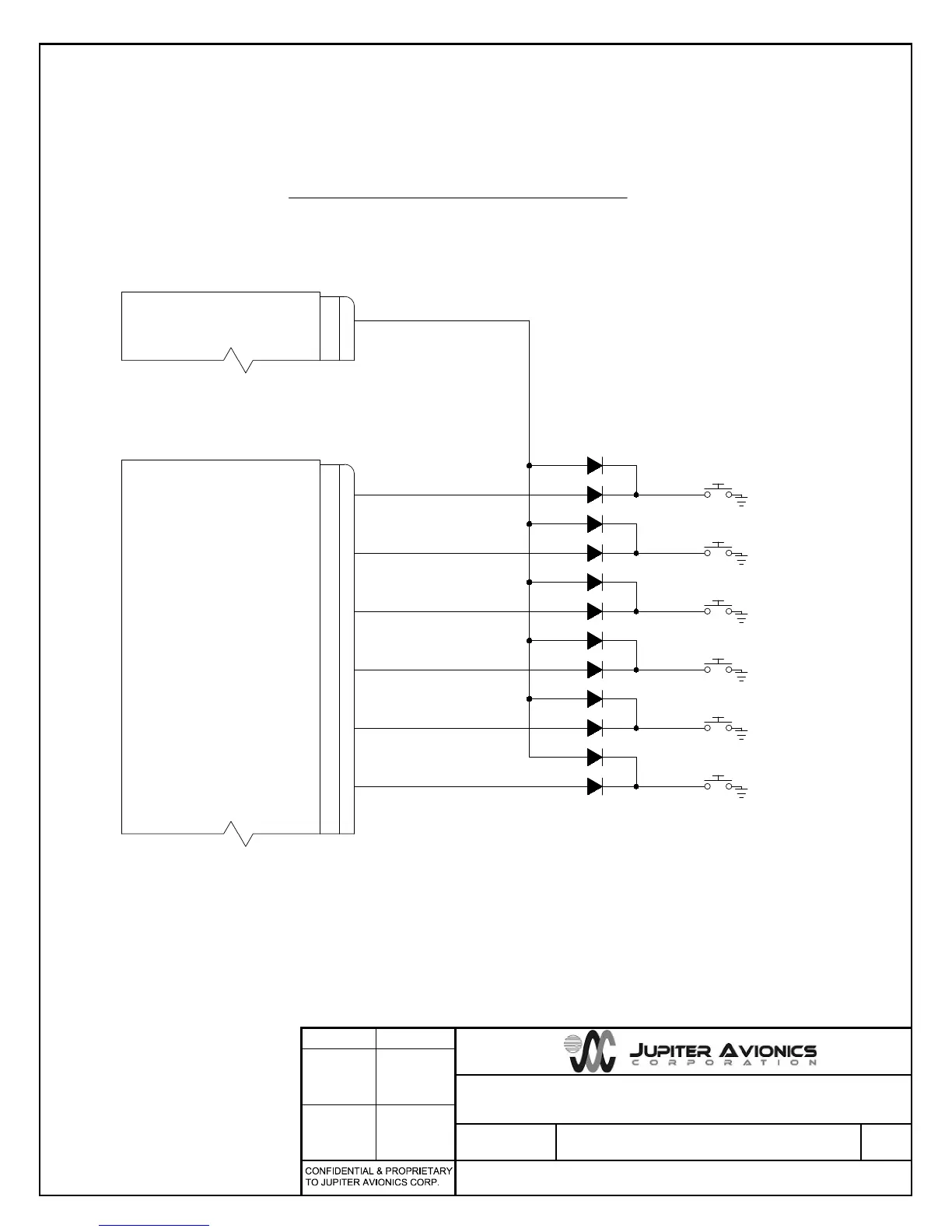

Dual Audio Controller - NVG
Interconnect Options
JA94-N01A 6/6
JA94-N01A Interconnect Rev A.dwg
TAT
COM 1 REMOTE TX SELECT 1
JA94-N01A
P/O P3
15 PIN FEMALE DMIN
MATING CONNECTOR
J3
COM 2 REMOTE TX SELECT 2
COM 3 REMOTE TX SELECT 3
COM 4 REMOTE TX SELECT 4
COM 5 REMOTE TX SELECT 5
COM 6 REMOTE TX SELECT 6
COM 1
COM 2
COM 3
COM 4
COM 5
COM 6
OPTION: MULTIPLE DISCRETE TX SELECT AND PTT
JA94-N01A J2
P/O P2
50 PIN FEMALE DMIN
MATING CONNECTOR
RIGHT USER TX PTT
7
RIGHT USER TX SELECT AND PTT
DIODES: IN4005 OR EQUIVALENT
