jurop LC User Manual

SPARE PART DATA SHEET – LC 750 HYD
REV. 12
10-12-2021
36 / 44
Jurop SpA
Via Crosera n° 50
33082 Azzano Decimo, PN (Italia)
TEL. +39 0434 636811 FAX. +39 0434 636812
http://www.jurop.it
e-mail: info@jurop.it
110
4026706003
FITTING 90° 6X1/8
2
115
4026910103
VENTIL PLUG
1
111
4026706101
ADJUSTABLE FITTING
2
116
4026910601
PLUG 1/8'
2
112
4026904003
PLUG 1"
6
117
4029602701
NUT M8 PROTECTION CAP
1
113
4026904005
PLUG 1"1/2
1
118
4029602806
DRIVE SHAFT PROTECTION
1
114
4026904300
VENTIL PLUG 1/4
2
18920110E0
GASKET KIT LC750
1
Pos.
Code
Description
Q.ty
Pos.
Code
Description
Q.ty
H1
14701BEBB0
HYD JOINT
1
H8
4026171304
STUD SCREW M14X40
8
H2
1610021600
HYD TRANSMISSION FLANGE
1
H9
4026308008
NUT M14 ZINC.
8
H3
1612501000
HYD TRANSMISSION BOX
1
H10
4026350505
WASHER GROWER 8 ZINC.
3
H4
16500088E0
SHAFT LC750 HYD
1
H11
4026350710
WASHER GROWER 14 ZINC.
8
H5
4024107003
HYD MOTOR
1
H12
4026359001
WASHER 33.5X40X1.5
1
H6
4026121405
SCREW TCEI M8X20 ZINC.
3
H13
4026501005
TAB 12X8X50
1
H7
4026136005
GRUB SCREW M8X12 ZINC.
2
H14
4026904003
PLUG 1" ZINC.
1
Note: refer to LC750 D parts breakdown (pages 30-31) for parts not provided in this list.

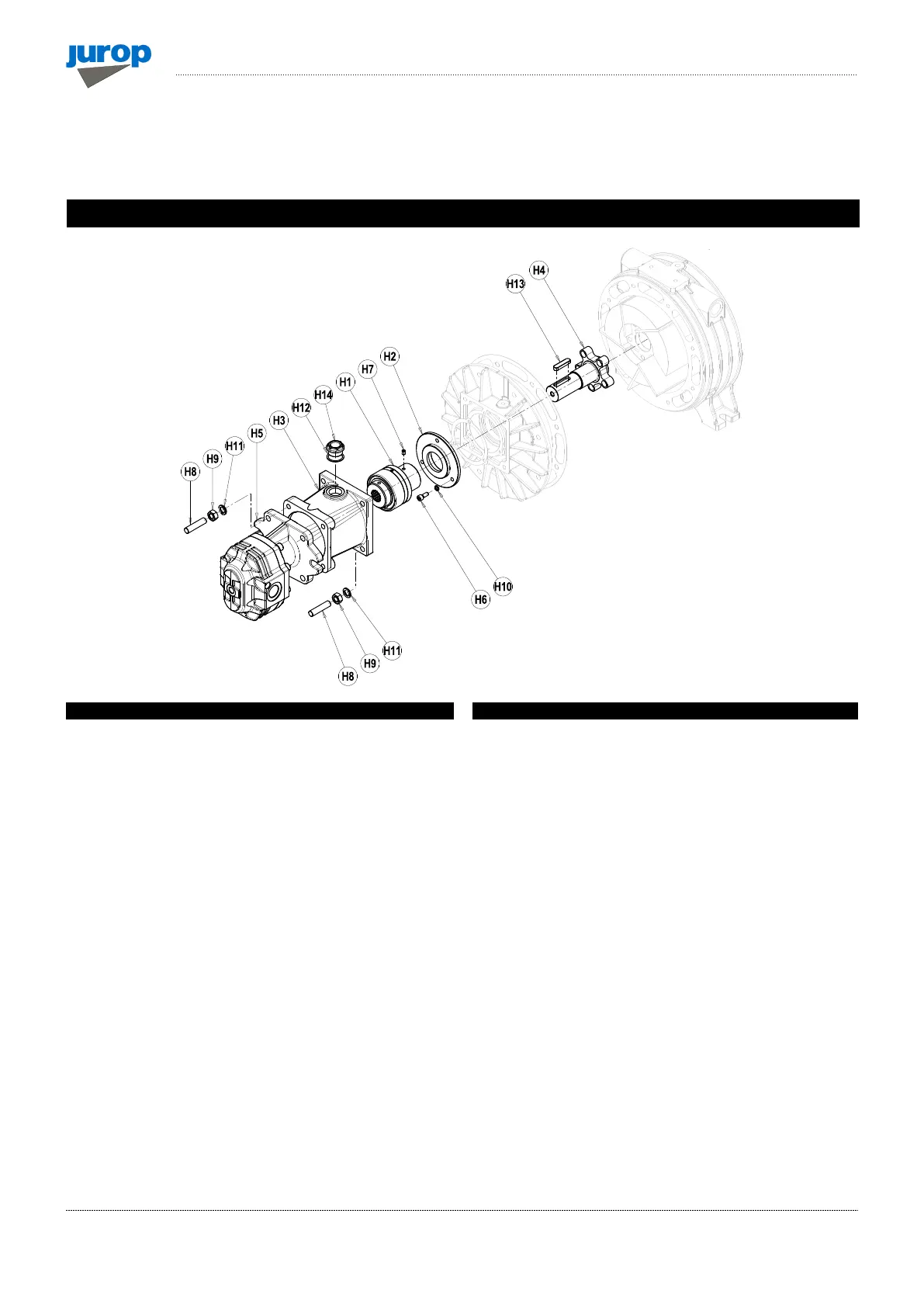

LC 750 WITH HYDRAULIC MOTOR
IN FIGURA:
LC750 HDR ROTAZIONE DX - CODICE: E758109440
