JVA ELECTRIC FENCE SYSTEMS
36
Remote Control Unit
9.2 Installation
The Remote control receiver unit requires 12V and 0V (GND) from the keypad bus,
and its output is shown wired to IN1.
Mount the receiver on the right hand side of the Z114 energizer. Connect +12V and
the receiver, as per the diagram above.
connections coming from the left side of the energizer.

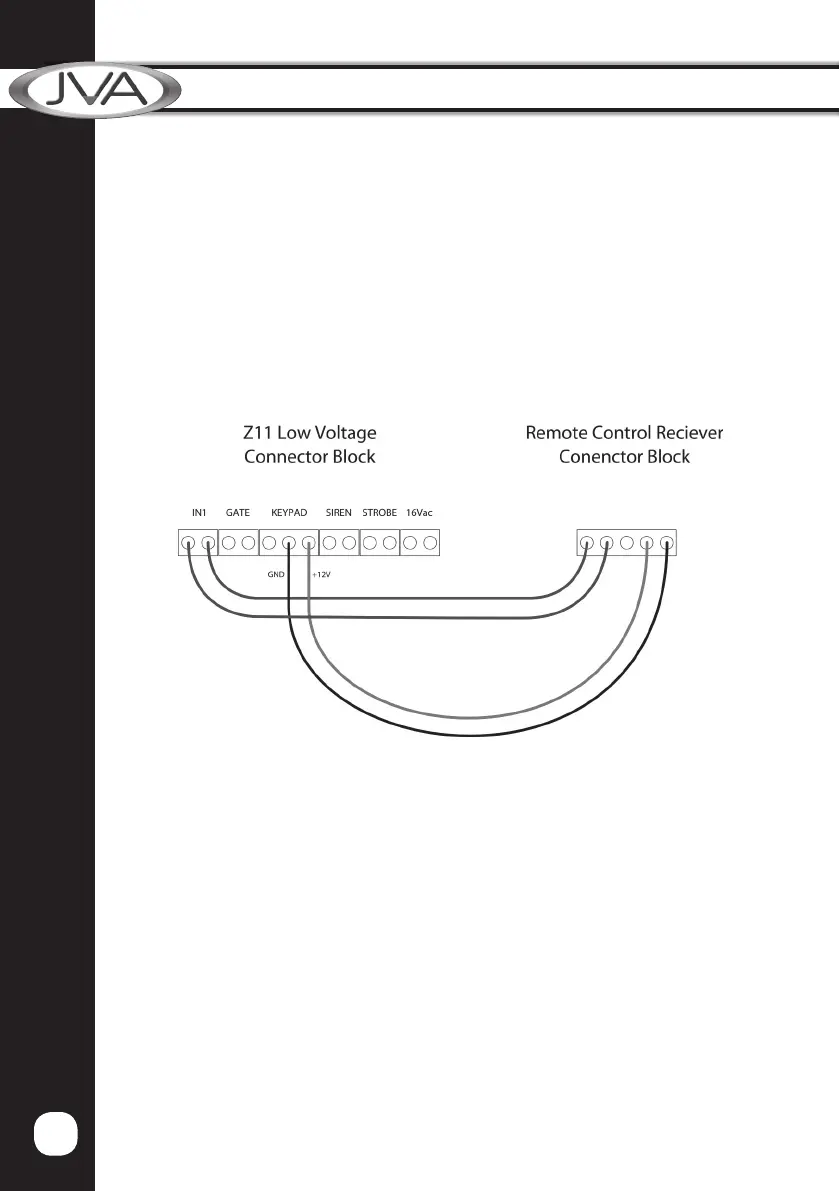

Remote Control Receiver Wiring Diagram
9.3 Operationandconguration
LOCK key to arm the energizer. Press the UNLOCK key to disarm.
Should a remote control become lost or stolen, it is possible to disassociate the
receiver with all remotes. To do this, press the button on the bottom right corner of
the receiver unit and hold for approximately 10 seconds. When the red light goes off
the receiver has wiped all associated remote controls from its memory.
To associate a remote control, press the button on the receiver once. The light will
come on momentarily. Next, press a button on the desired remote control. The
steps for any remaining remote controls that require (re)association.
