JVC AV-2106TE - Waveforms

2-12(No.YA394)

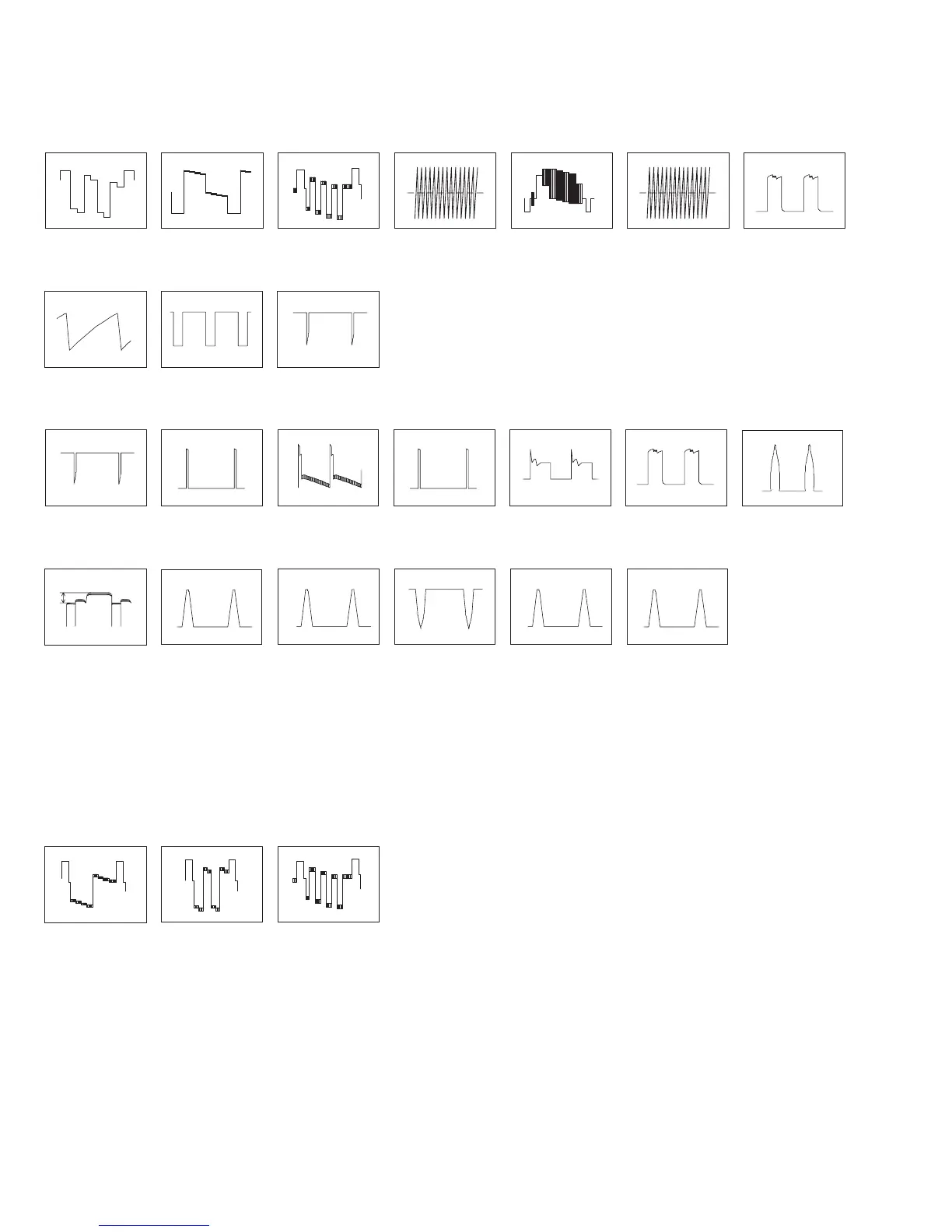

WAVEFORMS
-MAIN PWB-
(SHEET1)
-CRT SOCKET PWB-
IC301-10
3.5 Vp-p
(H)
IC301-11
3.5 Vp-p
(H)
IC301-12
4.0 Vp-p
(H)
IC301-14
0.35 Vp-p
(1µs)
IC301-36
3.0 Vp-p
(H)
IC301-40
0.5 Vp-p
(1µs)
IC301-42
2.5 Vp-p
(H)
IC301-46
2.5 Vp-p
(V)
IC701-27
5.0 Vp-p
(H)
IC701-35
5.0 Vp-p
(V)
IC421-1
0.6 Vp-p
(V)
IC421-3
30 Vp-p
(V)
IC421-5
60 Vp-p
(V)
IC421-6
30 Vp-p
(V)
Q521-C
38 Vp-p
(H)
Q521-B
1.5 Vp-p
(H)
Q522-C
1000Vp-p
(H)
Q522-B
2.0 Vp-p
(H)
T522-1
1000 Vp-p
(H)
T522-3
55Vp-p
(H)
(H)
(H)
T522-5
220 Vp-p
T522-9
220Vp-p
(H)
T522-7
25 Vp-p
Q351-C Q352-C Q353-C
110 Vp-p
(H)
120 Vp-p
(H) (H)
120 Vp-p
(SHEET2)
(SHEET2)
