JVC CA-C55BK - Disassembly Procedures; Front CB and Cassette Mechanism Removal

on B
- &

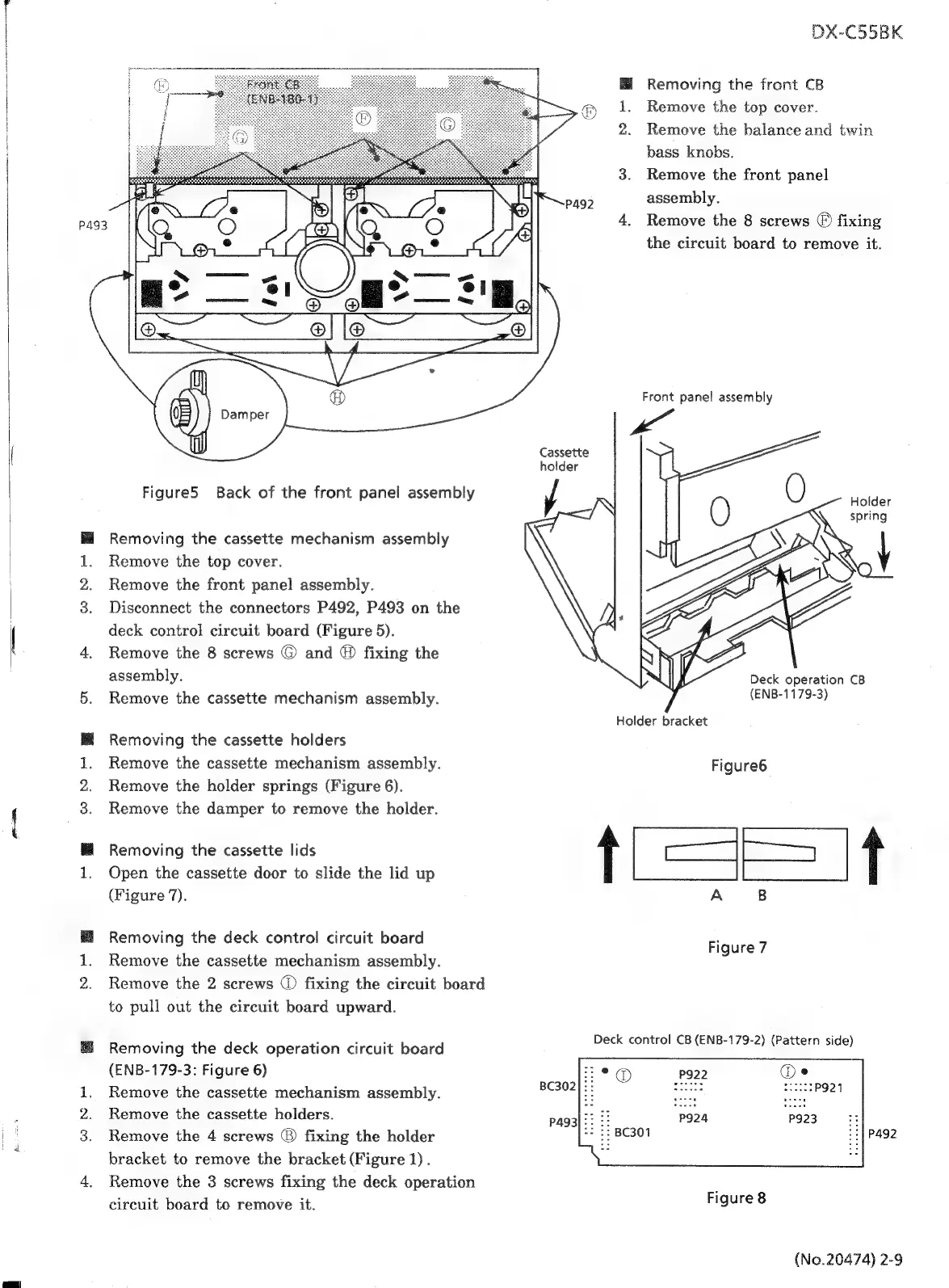

Figure5 Back of the front panel assembly
Removing the cassette mechanism assembly
Remove the top cover.
Remove the front panel assembly.
Disconnect the connectors P492, P493 on the
deck control circuit board (Figure 5).
Remove the 8 screws @ and @ fixing the
assembly.
Remove the cassette mechanism assembly.
Removing the cassette holders
Remove the cassette mechanism assembly.
Remove the holder springs (Figure 6).
Remove the damper to remove the holder.
Removing the cassette lids
Open the cassette door to slide the lid up
(Figure 7).
Removing the deck control circuit board
Remove the cassette mechanism assembly.
Remove the 2 screws © fixing the circuit board
to pull out the circuit board upward.
Removing the deck operation circuit board
(ENB-179-3: Figure 6)
Remove the cassette mechanism assembly.
Remove the cassette holders.
Remove the 4 screws ® fixing the holder
bracket to remove the bracket (Figure 1).
Remove the 3 screws fixing the deck operation
circuit board to remove it.
Cassette
holder
y
B® 1.
2.
3.
4,
DX-CS55BK
H Removing the front CB
Remove the top cover.
Remove the balance and twin
bass knobs.
Remove the front panel
assembly.
Remove the 8 screws © fixing
the circuit board to remove it.
Front panel assembly
Holder
spring
Deck operation CB
(ENB-1179-3)
Holder bracket
Figure6
{=i
Figure 7
Deck control CB (ENB-179-2) (Pattern side)
11] Pag2
Figure 8
(No.20474) 2-9
