G-L (plp0Z ON)

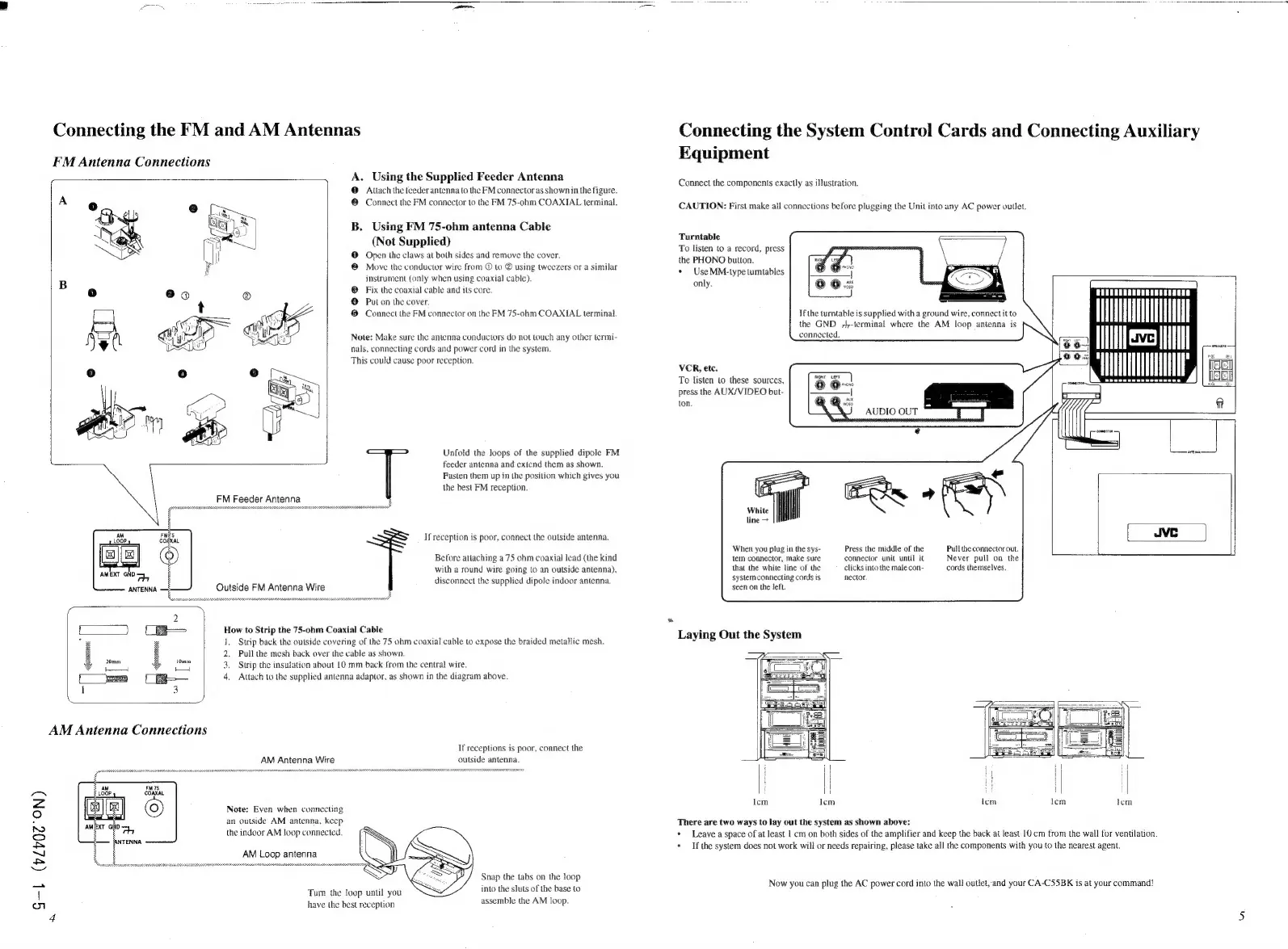

Connecting the FM and AM Antennas
FM Antenna Connections
A. Using the Supplied Feeder Antenna
A
@ Attach the feeder antenna to the FM connector as shown in the figure.
® Connect the FM conncctor to the FM 75-ohm COAXIAL terminal.
B. Using FM 75-ohm antenna Cable
(Not Supplied)
@ Open the claws at both sides and remove the cover.
@® Move the conductor wire from © to @ using tweezers or a similar
instrument (only when using coaxial cable).
® Fix the coaxial cable and ils core.
@ Put on the cover.
@® Connect the FM connector on the FM 75-ohm COANIAL terminal.
Note: Make sure the antenna conductors do not touch any other termi-
nals, connecting cords and power cord in the system.
This could cause poor reception
Unfold the loops of the supplied dipole FM
feeder antenna and extend them as shown.
Fasten them up in the position which gives you
the best FM reception.
FM Feeder Antenna
poncccssonccenssreccqnossneceennoseeces007006
cteotemsecegpancnensin
eessersstey
bor By If reception is poor, connect the outside antenna.
AMEXT GND Th
Betore attaching a 75 ohm coaxial lead (the kind
with a round wire going to an outside antenna),
disconnect the supplied dipole indoor antenna.
ANTENNA Outside FM Antenna Wire
How to Strip the 75-ohm Coaxial Cable
1. Swip back the outside covering of the 75 ohm coaxial cable to expose the braided metallic mesh.
2. Pull the mesh back over the cable as shown.
3. Strip the insulation about 10 mm back from the central wire.
4. Attach to the supplied antenna adaptor, as shown in the diagram above.
If receptions is poor, connect the
outside antennz
AM Antenna Wire
Note: Even when connecting
an outside AM antenna, keep
the indoor AM loop connected.
AM Loop antenna | =e
Snap the tabs on the loop
into the sluts of the base to
assemble the AM loop.
Turn the loop until you
have the best reception
Connecting the System Control Cards and Connecting Auxiliary
Equipment
Connect the components exactly as illustration.
CAUTION: First make all connections before plugging the Unit into any AC power outlet.
Turntable
To listen to a record, press
the PHONO button.
« UseMM-type tumtables
‘=
only.
t MERREBEROSGES
If the turntable is supplied with a ground wire, connectit to FAANANENAEAUAGALUAIT
the GND ,},-terminal where the AM loop antenna is
as ewes
fl
UW
VCR, ete.
To listen to these sources, ® &
press the AUX/VIDEO but-
ton.
AUDIO OUT
White |
line >
When you plug in the sys- Press the middle of the Pull the connector out.
tem connector, make sure connector unit until it Never pull on the
that the white line of the clicks into the male con- cords themselves.
system connecting cords is nector.
seen on the left.
*
Laying Out the System
lcm lem Icm tem tom
There are two ways to lay out the system as shown above:
* Leave a space of at least 1 cm on both sides of the amplifier and keep the back at least 10 cm from the wall for ventilation.
+ Ifthe system does not work will or needs repairing, please take all the components with you to the nearest agent.
Now you can plug the AC power cord into the wall outlet, and your CA-C55BK is at your command!
