XT-C55BK

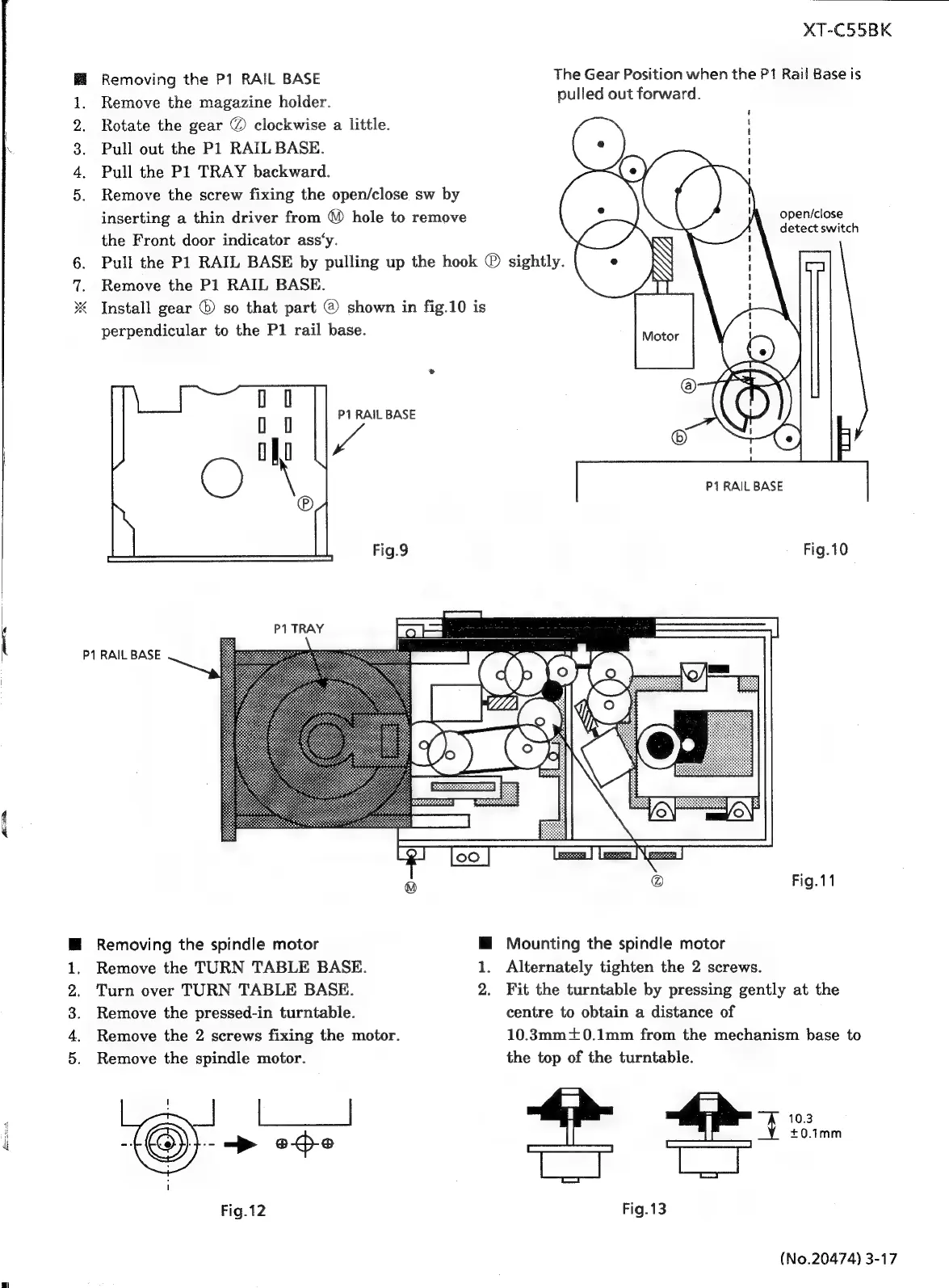

H Removing the P1 RAIL BASE The Gear Position when the Pt Rail Base is
1. Remove the magazine holder. pulled out forward.
2. Rotate the gear @ clockwise a little.
3.
Pull
out
the
Pi
RAIL
BASE.
:
4,
Pull
the
Pl
TRAY
backward.
5. Remove the screw fixing the open/close sw by
inserting
a
thin
driver
from
“
hole
to
remove
saab
4
the Front door indicator ass‘y.
6. Pull the P1 RAIL BASE by pulling up the hook © sightly.
7. Remove the P1 RAIL BASE.
%* Install gear © so that part @ shown in fig.10 is
aaron
perpendicular to the Pl rail base.
P1 RAIL BASE
P1 RAIL BASE
Fig.9 Fig.10
P1 RAIL BASE
Fig.11
Removing the spindle motor Mounting the spindle motor
Remove the TURN TABLE BASE. 1. Alternately tighten the 2 screws.
Turn over TURN TABLE BASE. 2. Fit the turntable by pressing gently at the
Remove the pressed-in turntable. centre to obtain a distance of
Remove the 2 screws fixing the motor. 10.3mm+0.1mm from the mechanism base to
Remove the spindle motor. the top of the turntable.
a
—_
-
:
+0.1mm
i
Fig. 12 Fig.13
(No.20474) 3-17
