6
English
@
Speakers

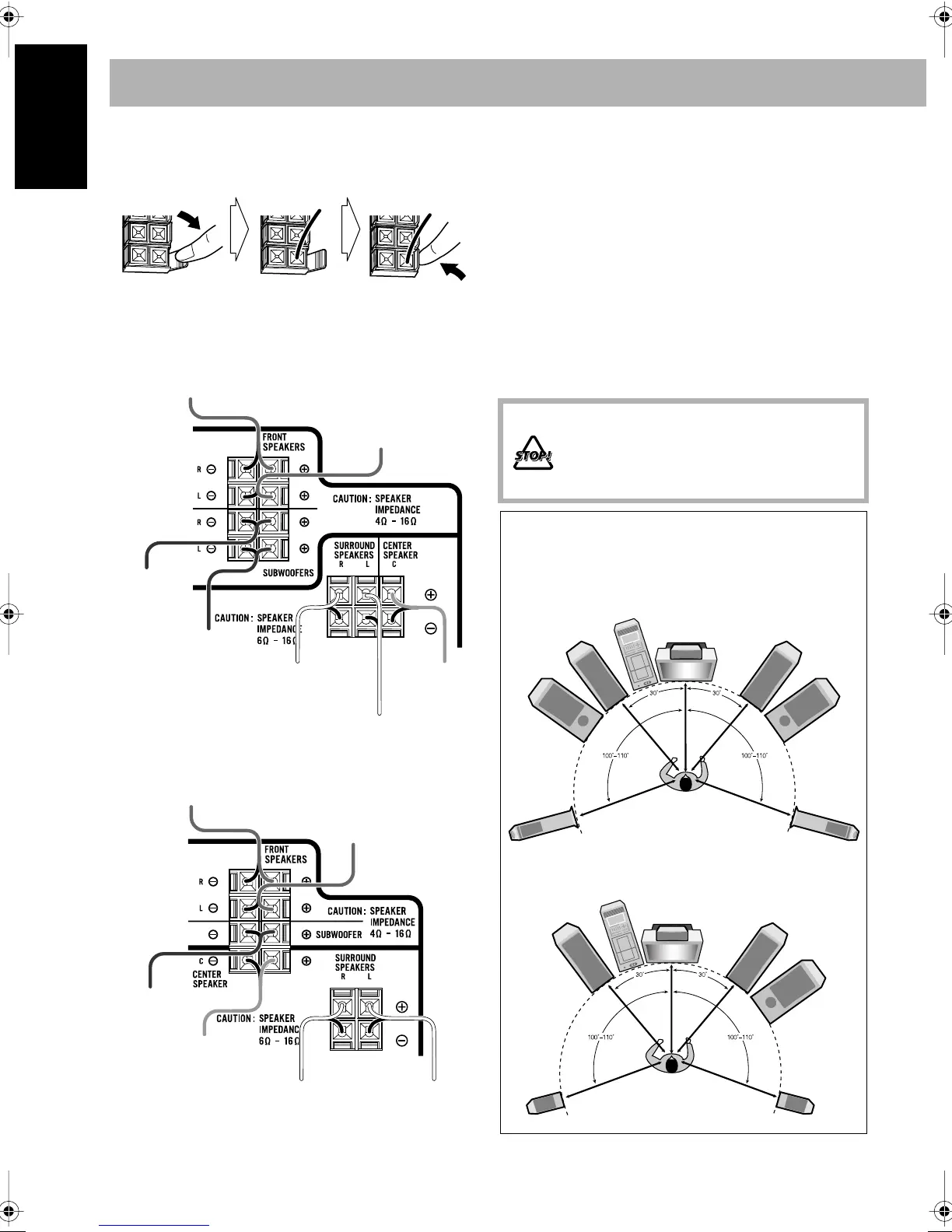

To connect the speaker cords
• When connecting the speaker cords, match their polarity
with that of the speaker terminals: blue/red/green/white/
gray to (+) and black to (–).
For CA-DXT9
For CA-DXT7
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the System.
• The front and center speakers are magnetically shielded to
avoid color distortions on TVs. However, if not installed
properly, it may cause color distortions. So, pay attention to
the following when installing the speakers.
– When placing the speakers near a TV set, turn off the
TV’s main power switch or unplug it before installing the
speakers.
Then wait at least 30 minutes before turning on the TV’s
main power switch again.
Some TVs may still be affected even though you have
followed the above instruction. If this happens, move the
speakers away from the TV.
From right front speaker (blue/black)
From left front speaker
(blue/black)
From left surround
speaker (white/black)
From right surround
speaker (white/black)
From center
speaker
(green/black)
From left subwoofer
(red/black)
From right
subwoofer
(red/black)
From right front speaker (blue/black)
From left front speaker
(blue/black)
From left surround
speaker (gray/black)
From right surround
speaker (gray/black)
From center speaker
(green/black)
From subwoofer
(red/black)
• DO NOT connect more than one speaker to
each terminal.
• DO NOT push or pull the speakers as this
will damage the foot spacers at the bottom
of the speakers.
Speaker layout
To enjoy multi-channel sound, locate the speakers as
follows. If you cannot locate like this, adjust the speaker
setting by using the Setup menu (see page 40).
For CA-DXT9
For CA-DXT7
