G-2

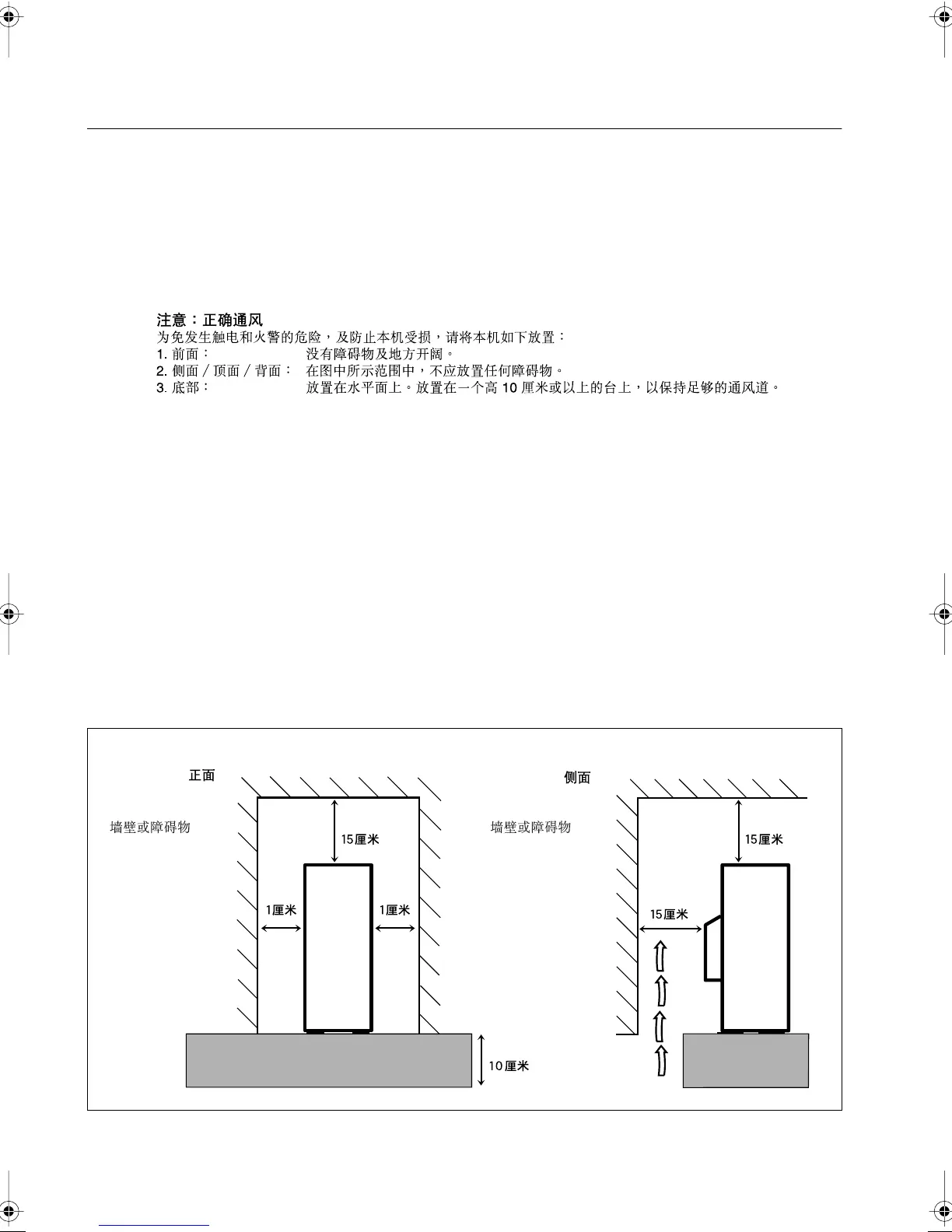

Caution: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1. Front: No obstructions and open spacing.
2. Sides/Top/Back: No obstructions should be placed in the areas shown by the dimensions below.
3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing
on a stand with a height of 10 cm or more.
15 cm
10 cm
1 cm
1 cm
15 cm 15 cm
Front view Side view
CA-DXT7
CA-DXT9
CA-DXT7
CA-DXT9
Wall or obstructions Wall or obstructions
DXT7_T9_Safty[USUN]-f.fm Page 2 Wednesday, February 16, 2005 1:23 PM
