JVC CA-DXU10 - Removing the DVD Traverse Mechanism Assembly; See Fig.

(No.MB616<Rev.002>)1-23
3.2.6 Removing the DVD traverse mechanism assembly
(See Fig.11)
• Remove the tray assemblies and DVD servo board.
(1) From the bottom side of the DVD changer mechanism as-
sembly, remove the three screws F attaching the DVD
traverse mechanism assembly.
(2) Remove the wires from the section j.
(3) Take out the DVD traverse mechanism assembly from the
DVD changer mechanism assembly.

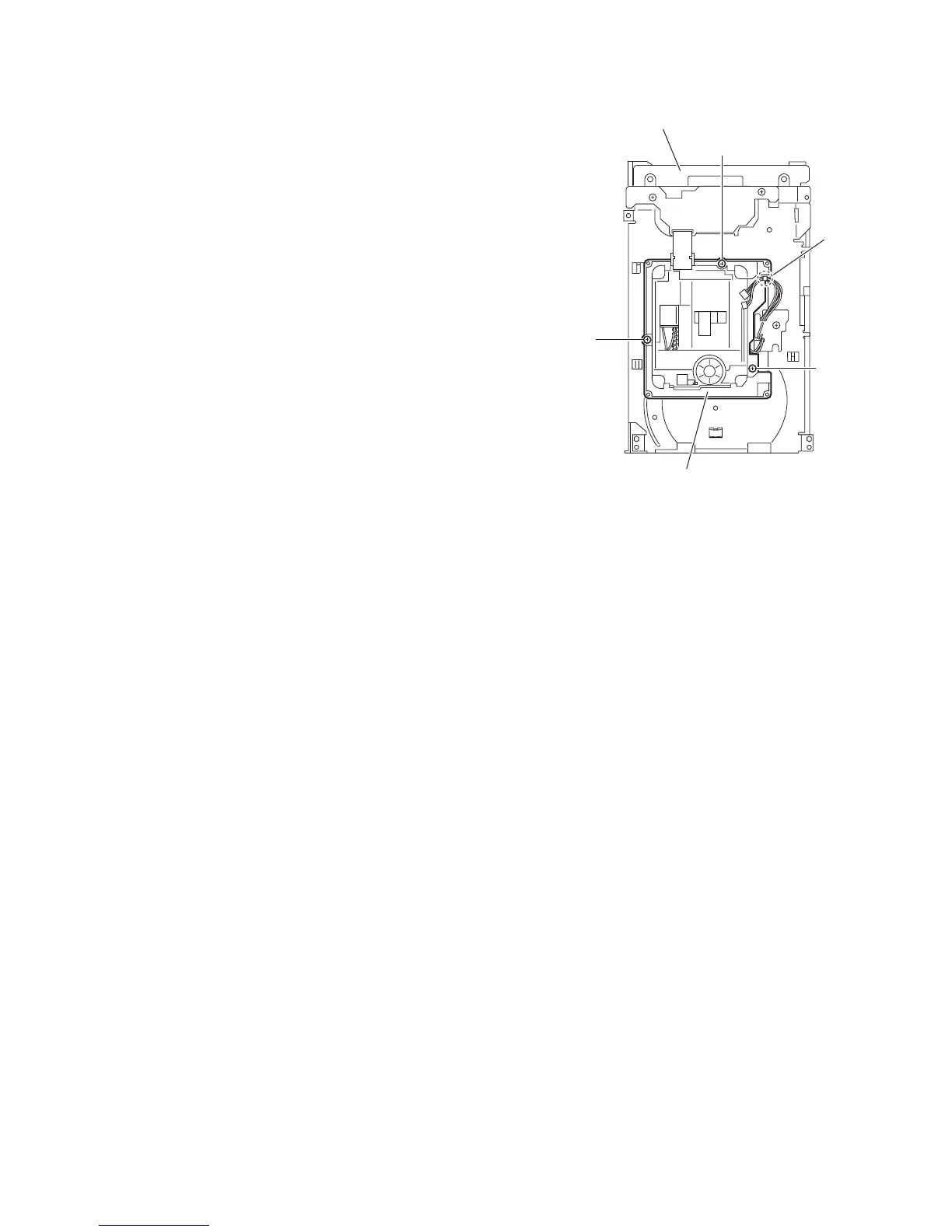

Fig.11
F
F
j
F
DVD changer mechanism assembly
DVD traverse mechanism assembly
