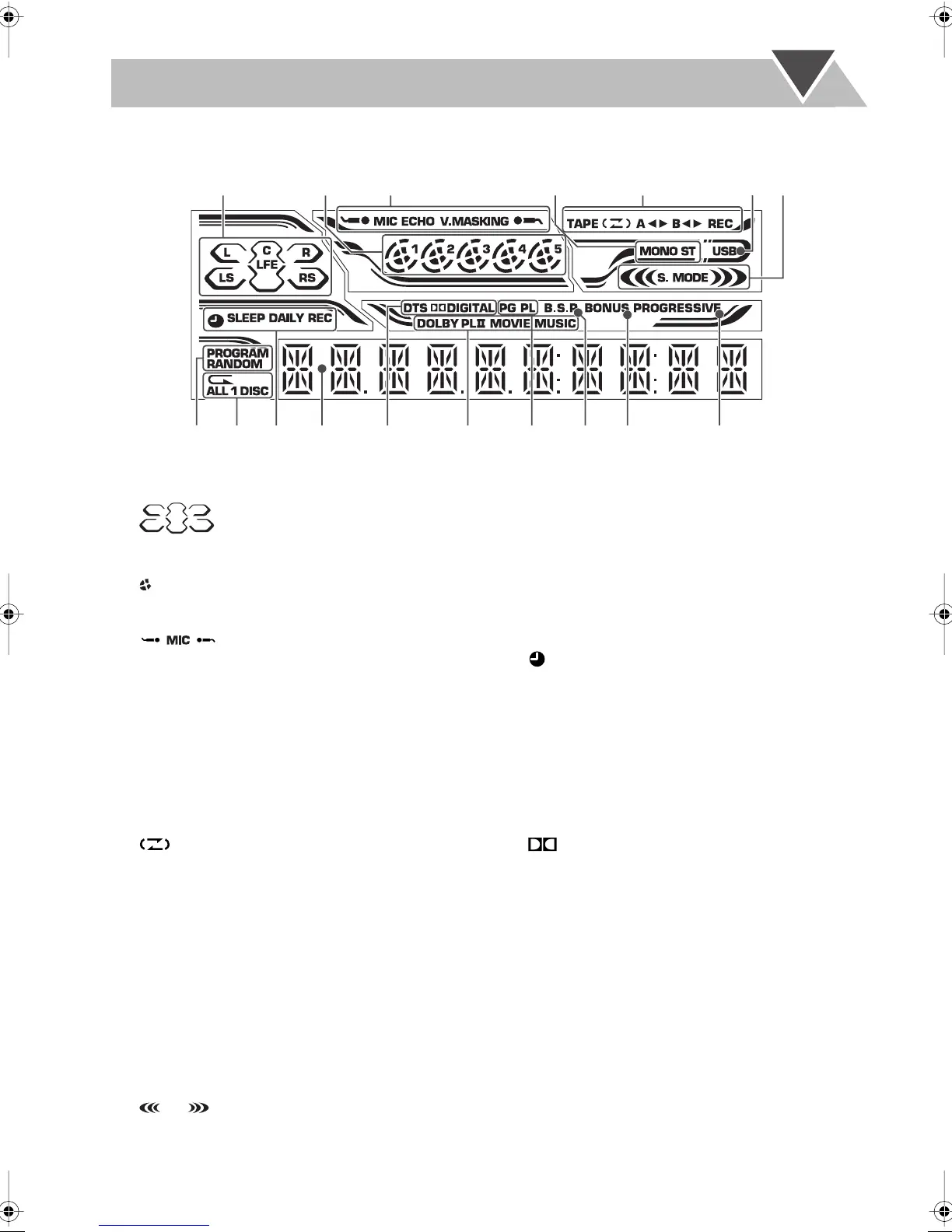

Display Indication
The indications on the display tell you a lot of things while you are operating the System.
Before operating the System, be familiar with when and how the indicator illuminates on the display.
1
Audio signal indicators
• L/R/C/LS/RS/LFE: lights to indicate the incoming audio
channel signals.
•: lights to indicate the speakers from which
sound is emitted.
2
Disc indicators
•1 – 5: lights to indicate the current disc tray.
•: lights when a disc is detected on the disc tray; rotates
during playback or pause.
3
Karaoke operation indicators
•: lights when Mic Mixing is activated;
flashes when Karaoke Scoring is in use.
• ECHO: lights when Echo is activated.
• V.MASKING: lights when Vocal Masking is activated.
4
FM reception indicators
• ST (stereo): lights while an FM stereo station with
sufficient signal strength is tuned in.
• MONO: lights while receiving an FM stereo station in
monaural.
5
Tape operation indicators
• TAPE: lights when a tape is loaded in either deck A or B.
• (Reverse Mode): indicates the current Reverse
Mode.
• A: lights when a tape is in deck A.
• B: lights when a tape is in deck B.
•
2
3
(tape direction):
– Lights to indicate the current tape running direction.
– Flashes slowly during playback and recording.
– Flashes quickly while rewinding a tape.
• REC: lights while recording.
6
USB indicator
• Lights when “USB” is selected as the source.
7
Sound Mode/Surround mode indicators
• S. MODE: lights when one of the Sound Mode is
activated.
•: lights when one of the Surround Mode is
activated.
8
Play mode indicators
• PROGRAM: lights when Program Play is activated.
• RANDOM: lights when Random Play is activated.
9
Repeat mode indicators
•
P
: lights when Repeat Play is activated.
• ALL: lights when All File Repeat is activated.
• ALL DISC: lights when All Disc Repeat is activated.
•1 DISC: lights when One Disc Repeat is activated.
• 1: lights when One Track/Chapter/File/Step Repeat is
activated.
p
Timer indicators
•: lights when Daily Timer or Recording Timer is on
standby, working, or being set.
• SLEEP: lights when Sleep Timer is activated.
• DAILY: lights when Daily Timer is on standby; flashes
while working or being set.
• REC: lights when Recording Timer is on standby; flashes
while working or being set.
q
Main display
w
Source signal indicators
• DTS: lights when DTS signals are detected.
• DIGITAL: lights when Dolby Digital signals are
detected.
e
Dolby Pro Logic II mode indicators
• Lights when Dolby Pro Logic
II
(Movie or Music) is
activated.
r
PG/PL indicator
• PG: lights when Original Program is selected for
DVD-VR playback.
• PL: lights when Play List is selected for DVD-VR
playback.
t
B.S.P. indicator
• Lights when browsable still pictures on DVD Audio are
available.
y
BONUS indicator
• Lights when DVD Audio with bonus group is detected.
u
PROGRESSIVE indicator
• Lights when the progressive scanning mode is selected.
76
132
45
rewpq ty u89
//
