Ÿ Speakers

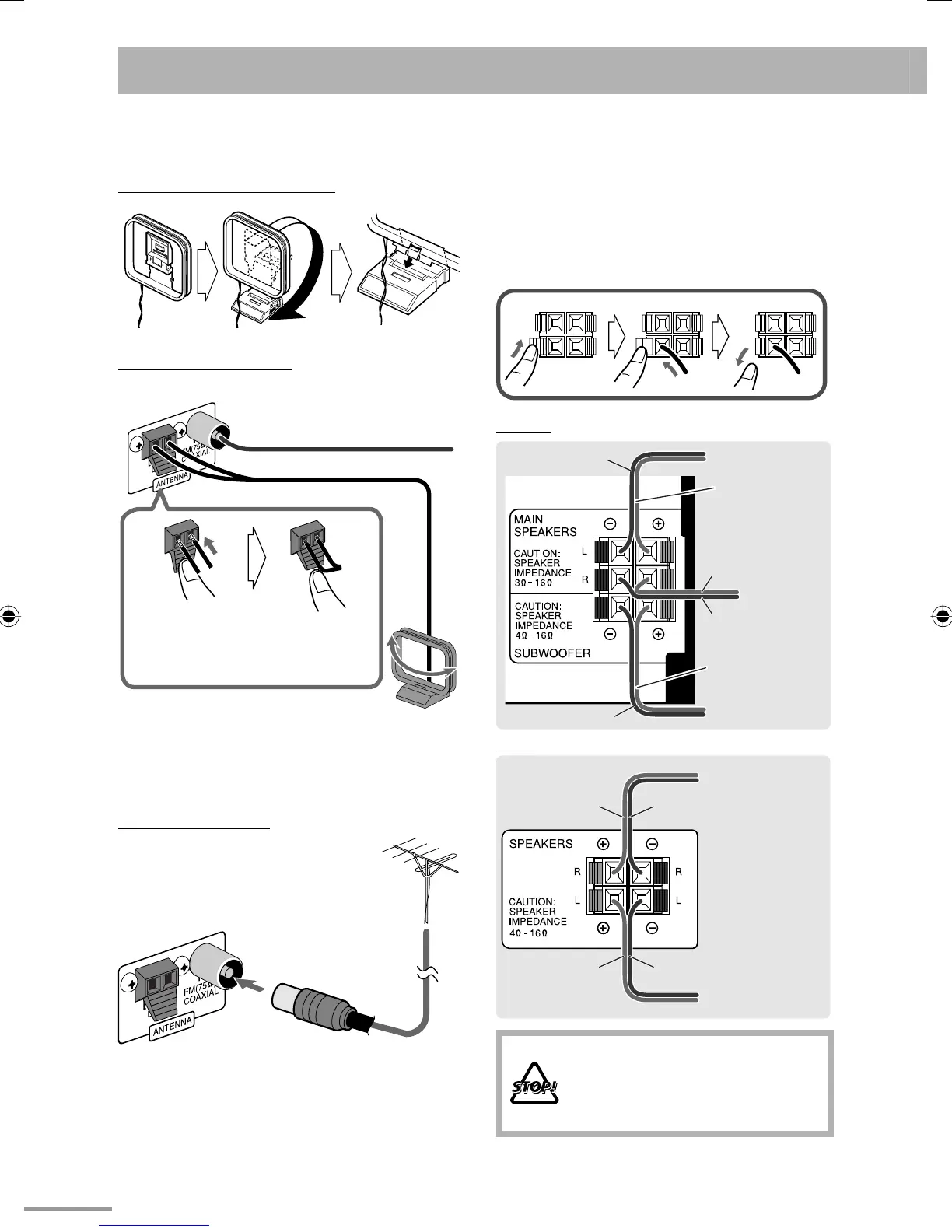

When connecting the speaker cords, match the polarity
of the speaker terminals.
CA-NXG9:
Main speakers: blue to (+) and black to (–)
Subwoofer: red to (+) and black to (–)
NX-G5: blue to (+) and black to (–)
CA-NXG9
NX-G5
• DO NOT connect more than one
speaker to each terminal.
• DO NOT push or pull the speakers
as this will damage the foot spacers at
the bottom of the speakers.
~ AM/FM antenna
To assemble the AM loop antenna
To connect AM/FM antenna
For better FM reception
Disconnect the supplied FM antenna, and connect to
an outdoor FM antenna using a 75 Ω wire with coaxial
type connector (IEC or DIN45325).
AM loop antenna (supplied)
Turn it until the best reception is
obtained.
If the cords are covered with vinyl,
remove the vinyl to expose the tip of
the cord by twisting the vinyl.
FM antenna (supplied)
Extend it so that you can obtain the
best reception.
FM outdoor antenna
(not supplied)
Red
Black
From right
speaker
From left speaker
Blue
Black
Blue Black
From right speaker
From left speaker
Blue Black
From subwoofer
Blue
Black
