JVC CD-1770 Service Manual

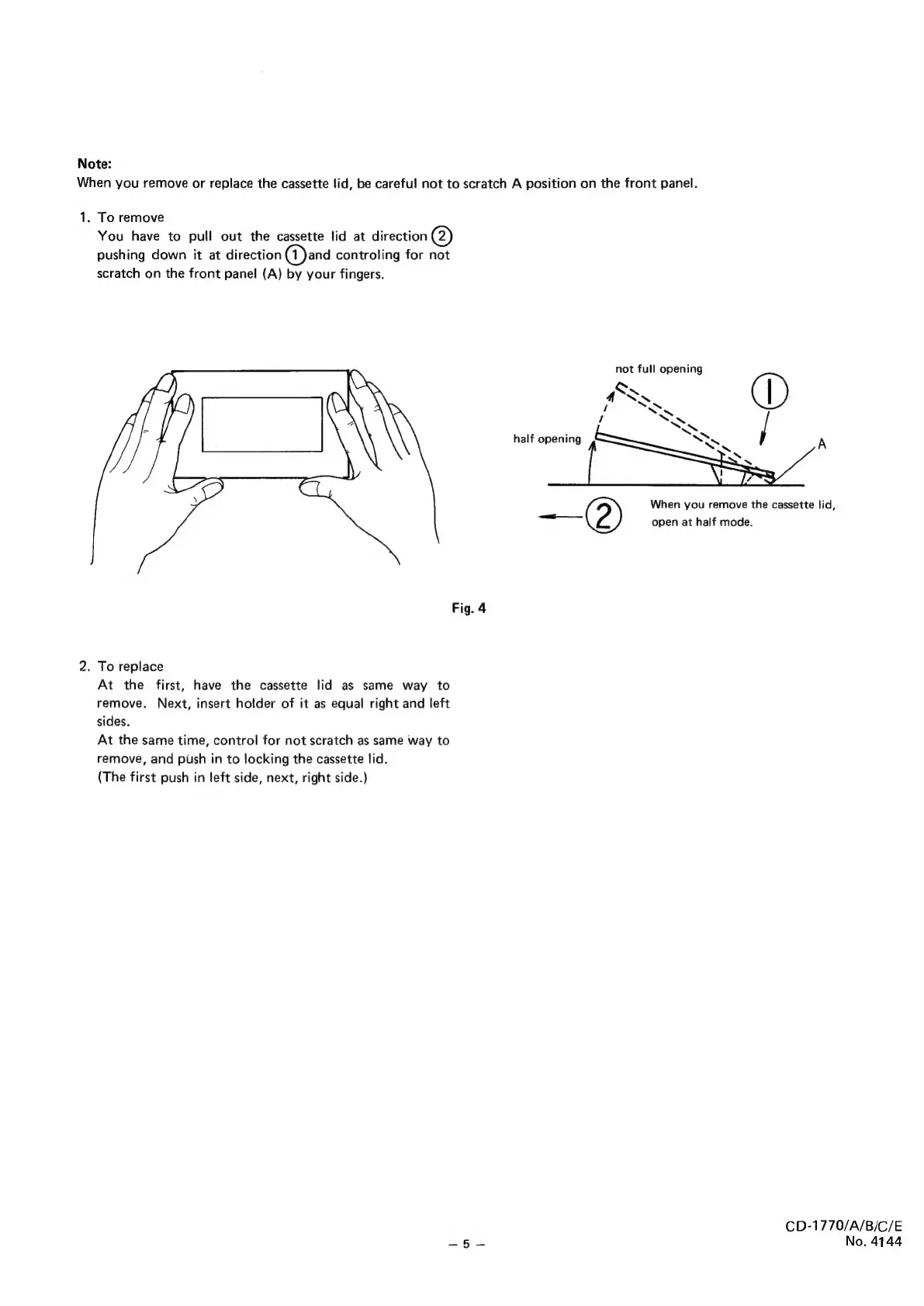

Note:
When you remove or replace the cassette lid, be careful not to scratch A position on the front panel.
1. To remove
You have to pull out the cassette lid at direction (2)
pushing down it at direction
scratch on the front panel (A) by your fingers.
2. To replace
@)and controling for not
Fig. 4
At the first, have the cassette lid as same way to
remove. Next, insert holder of it as equal right and left
sides.
At the same time, control for not scratch as same way to
remove, and push in to locking the cassette lid.
(The first push in left side, next, right side.)
not full opening
gv
2 Bae
half opening
2)
When you remove the cassette lid,
open at half mode.
CD-1770/A/B/C/E
No. 4144
