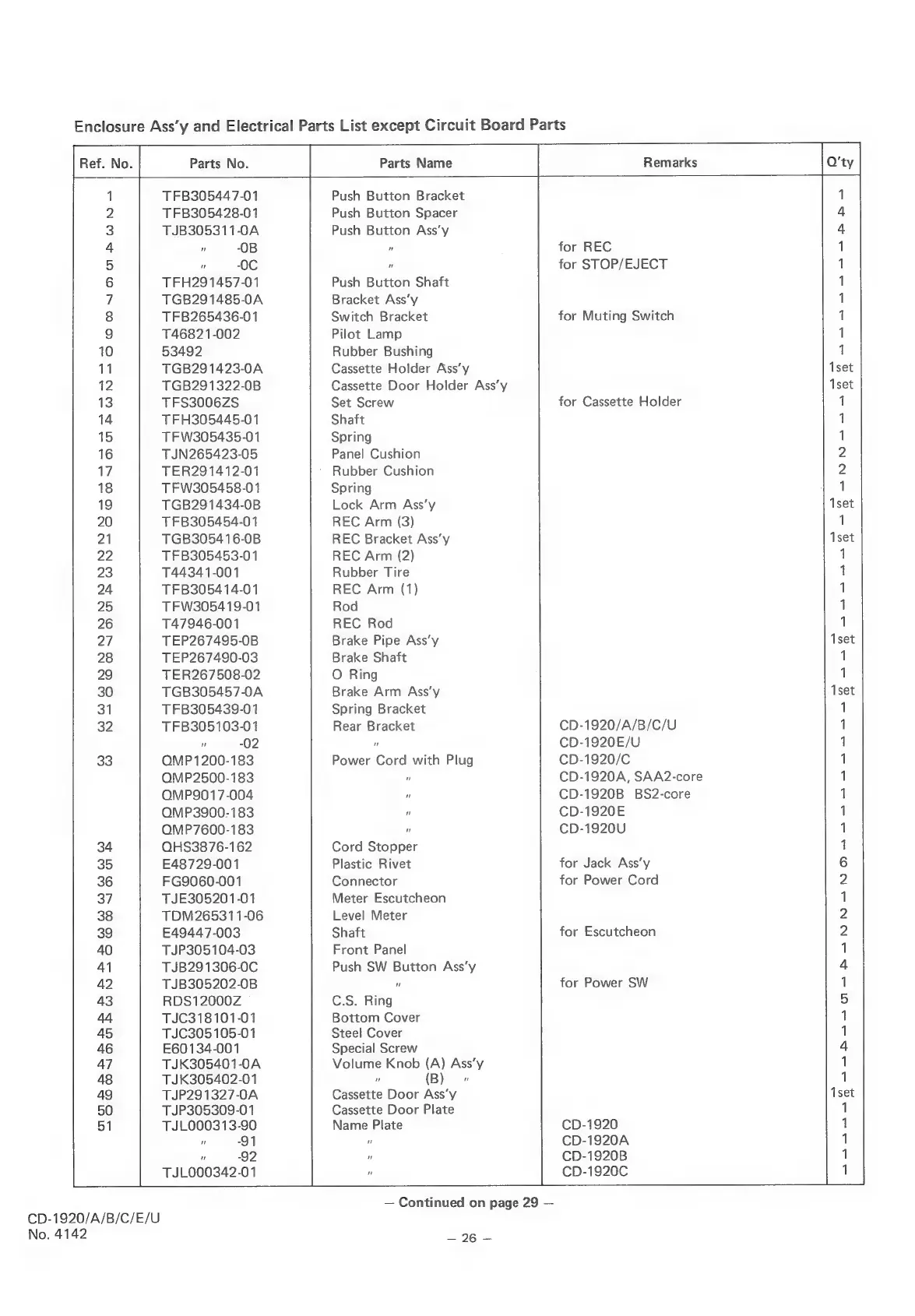

Enclosure Ass’y and Electrical Parts List except Circuit Board Parts
Ref. No. Parts No. Parts Name Remarks O’ty
1 TFB305447-01 Push Button Bracket 1
2 TFB305428-01 Push Button Spacer 4
3 TJB305311-0A Push Button Ass’y 4
4 fi -OB ” for REC 1
5 ” -O0C ” for STOP/EJECT 1
6 TFH291457-01 Push Button Shaft 1
ri TGB291485-0A Bracket Ass’y 1
8 TFB265436-01 Switch Bracket for Muting Switch 1
9 T46821-002 Pilot Lamp 1
10 53492 Rubber Bushing 1
11 TGB291423-0A Cassette Holder Ass’y iset
12 TGB291322-0B Cassette Door Holder Ass’y iset
13 TFS3006ZS Set Screw for Cassette Holder 1
14 TFH305445-01 Shaft 1
15 TFW305435-01 Spring 1
16 TJN265423-05 Panel Cushion 2
17 TER291412-01 * Rubber Cushion 2
18 TFW305458-01 Spring 1
19 TGB291434-0B Lock Arm Ass’y 1set
20 TFB305454-01 REC Arm (3) 1
21 TGB305416-0B REC Bracket Ass’y 1set
22 TFB305453-01 REC Arm (2) 1
23 T44341-001 Rubber Tire 1
24 TFB305414-01 REC Arm (1) 1
25 TFW305419-01 Rod 1
26 T47946-001 REC Rod 1
27 TEP267495-0B Brake Pipe Ass’y 1set
28 TEP267490-03 Brake Shaft 1
29 TER267508-02 O Ring 1
30 TGB305457-0A Brake Arm Ass’y 1set
31 TFB305439-01 Spring Bracket 1
32 TFB305103-01 Rear Bracket CD-1920/A/B/C/U 1
" -02 ” CD-1920E/U 1
33 OMP1200-183 Power Cord with Plug CD-1920/C 1
OMP2500-183 CD-1920A, SAA2-core 1
OMP9017-004 CD-1920B BS2-core 1
OMP3900-183 CD-1920E 1
OMP7600-183 CD-1920U 1
34 QHS3876-162 Cord Stopper 1
35 E48729-001 Plastic Rivet for Jack Ass’y 6
36 FG9060-001 Connector for Power Cord 2
37 TJE305201-01 Meter Escutcheon 1
38 TDM265311-06 Level Meter 2
39 E49447-003 Shaft for Escutcheon 2
40 TJP305104-03 Front Panel 1
41 TJB291306-0C Push SW Button Ass’y 4
42 TJB305202-0B ” for Power SW 1
43 RDS12000Z C.S. Ring 5
44 TJC318101-01 Bottom Cover 1
45 TJC305105-01 Steel Cover 1
46 E60134-001 Special Screw 4
47 TJK305401-0A Volume Knob (A) Ass’y 1
48 TJK305402-01 ” (B) 1
49 TJP291327-0A Cassette Door Ass’y 1set
50
TJP305309-01
Cassette
Door
Plate
1
51
TJLO00313-90
Name
Plate
CD-1920
1
" 91 ” CD-1920A 1
” -92 CD-1920B 1
TJLO00342-01 CD-1920C 1
CD-1920/A/B/C/E/U
No. 4142
— Continued on page 29 —
