JVC CD-1920 User Manual

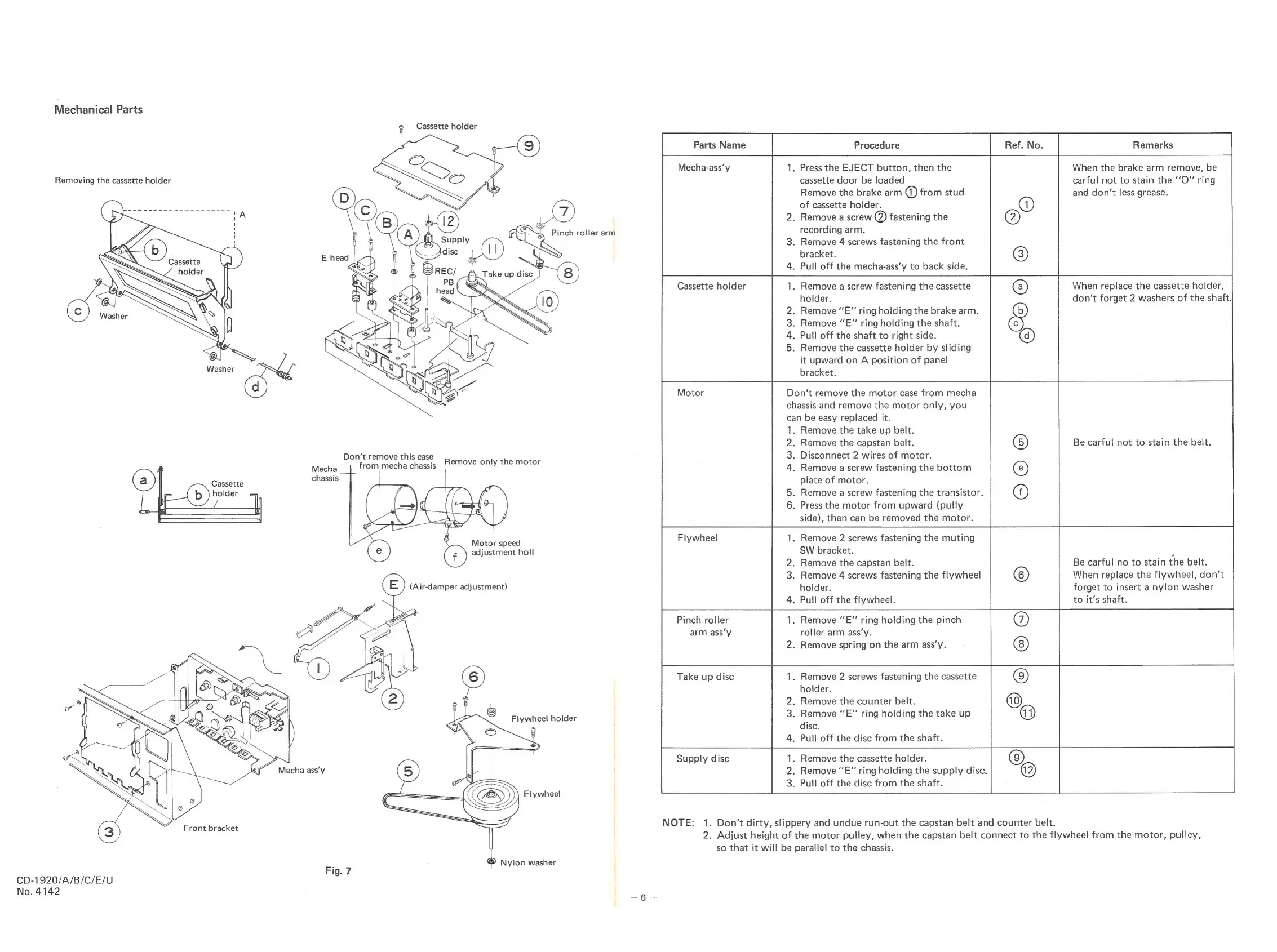

Mechanical Parts
Cassette holder
Removing the cassette holder
Don’t remove this case
froin. mecha chassis Remove only the motor
Mecha
chassis
Cassette
Motor speed
adjustment holl
Flywheel holder
®
Front bracket
. @ Nylon washer
Fig. 7
CD-1920/A/B/C/E/U
No. 4142
Remarks
. Press the EJECT button, then the
cassette door be loaded
Remove the brake arm (1) from stud
of cassette holder.
. Remove a screw @ fastening the
recording arm.
. Remove 4 screws fastening the front
bracket.
. Pull off the mecha-ass’y to back side.
Cassette holder
. Remove a screw fastening the cassette
holder.
. Remove “E” ring holding the brake arm.
. Remove “E” ring holding the shaft.
. Pull off the shaft to right side.
. Remove the cassette holder by sliding
it upward on A position of panel
bracket.
Don’t remove the motor case from mecha
chassis and remove the motor only, you
can be easy replaced it.
1. Remove the take up belt.
2. Remove the capstan belt.
3. Disconnect 2 wires of motor.
4. Remove a screw fastening the bottom
plate of motor.
. Remove a screw fastening the transistor.
. Press the motor from upward (pully
side), then can be removed the motor.
Flywheel . Remove 2 screws fastening the muting
SW bracket.
. Remove the capstan belt.
. Remove 4 screws fastening the flywheel
holder.
. Pull off the flywheel.
Pinch roller
arm ass’y
. Remove “E” ring holding the pinch
roller arm ass’y.
. Remove spring on the arm ass’y.
. Remove 2 screws fastening the cassette
holder.
. Remove the counter belt.
. Remove “E” ring holding the take up
disc.
. Pull off the disc from the shaft.
Take up disc
. Remove the cassette holder.
. Remove “E” ring holding the supply disc.
. Pull off the disc from the shaft.
Supply disc
NOTE: 1. Don’t dirty, slippery and undue run-out the capstan belt and counter belt.
When the brake arm remove, be
carful not to stain the ‘‘O” ring
and don’t less grease.
When replace the cassette holder,
don’t forget 2 washers of the shaft.
Be carful not to stain the belt.
Be carful no to stain the belt.
When replace the flywheel, don’t
forget to insert a nylon washer
to it’s shaft.
2. Adjust height of the motor pulley, when the capstan belt connect to the flywheel from the motor, pulley,
so that it will be parallel to the chassis.
