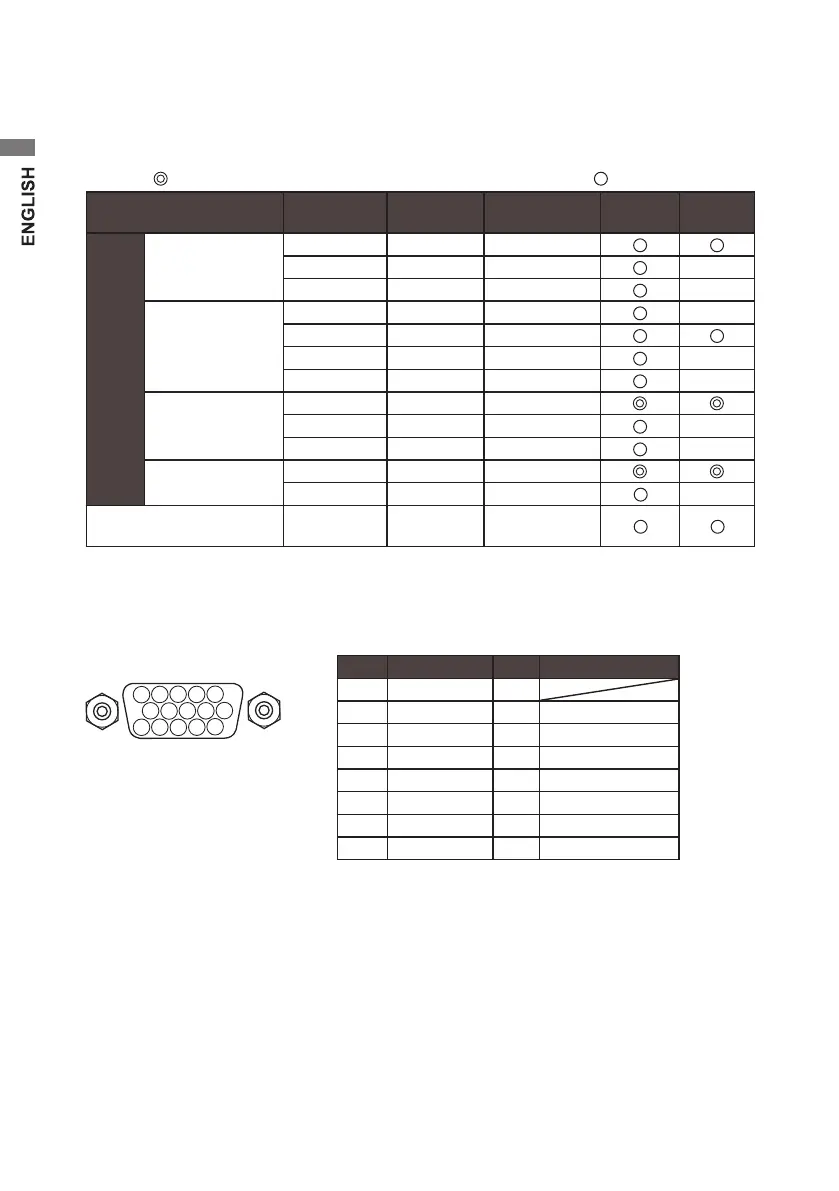

Supported signals
1
)
Supported signal timings
Note: Timings other than listed below may not display images properly.
：
Recommended
(*1: CV532PJ, *2: CV732PJ and CV932PJ)
：
Applicable
Display Mode
Horizontal
Frequency
Vertical
Frequency
Pixel
Frequency
Analog
input
Digital
input
VESA
VGA
640 × 480
31.47 kHz 59.94 Hz 25.18 MHz
37.50 kHz 75.00 Hz 31.50 MHz
37.86 kHz 72.81 Hz 31.50 MHz
SVGA
800 × 600
35.16 kHz 56.25 Hz 36.00 MHz
37.88 kHz 60.32 Hz 40.00 MHz
48.08 kHz 72.19 Hz 50.00 MHz
46.88 kHz 75.00 Hz 49.50 MHz
XGA
1024 × 768
48.36 kHz 60.00 Hz 65.00 MHz
*1 *1
56.48 kHz 70.07 Hz 75.00 MHz
60.02 kHz 75.03 Hz 78.75 MHz
SXGA
1280 × 1024*
63.98 kHz 60.02 Hz 108.00 MHz
*2 *2
79.98 kHz 75.03 Hz 135.00 MHz
*2
VGA TEXT
720 × 400
31.47 kHz 70.09 Hz 28.32 MHz
* For CV732PJ and CV932PJ only
2
)
Connector pin array
Mini D-sub 15-pin (female) connector for VGA signals
5
432
1
6
7
89
10
11
12
1314
15
Pin # Signal Pin # Signal
1 R: Red 9
2 G: Green 10 HS-GND
3 B: Blue 11 VS-GND
4 GND 12 DDC,SDT
5 GND 13 Horizontal Sync
6 R-GND 14 Vertical Sync
7 G-GND 15 DDC, SCLK
8 B-GND
