1-12 (No.PA023)

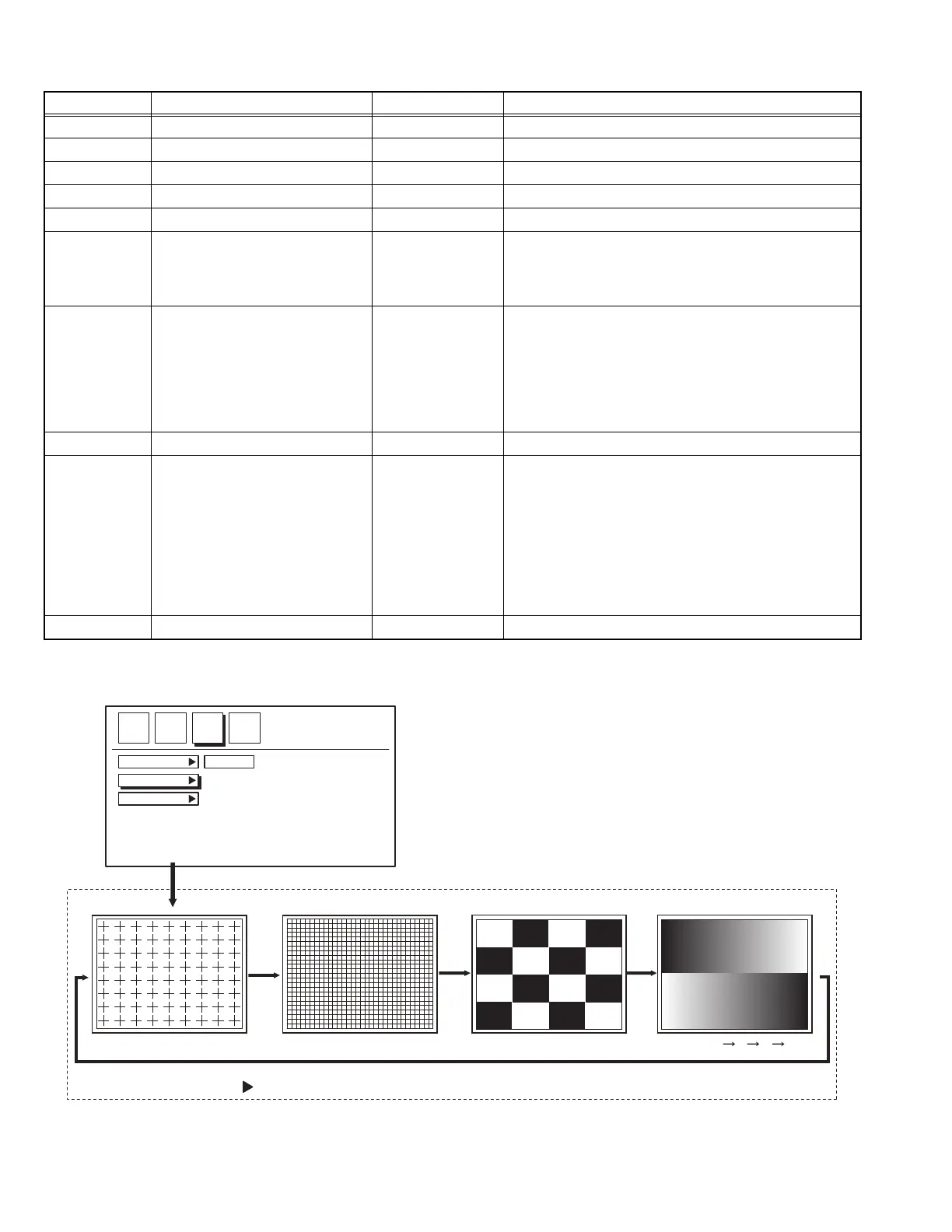

2.7.4 Setting items
NOTE: Carry out the adjustment with Pixel Adjust in the USER MENU being set to "4"
(Not factory reset item)
Item Adjustment range Initial value Function
Model Only the display - Display of model name
Main Only the display - Display of Main CPU software version
Sub Only the display - Display of Sub CPU software version
DD Only the display - Display of DD program version
OSD Only the display - Display of OSD program version
Color Temp.
Red
Green
Blue
Low /Middle/High/User1/User2
-255 - 0
-255 - 0
-255 - 0
Middle
0
0
0
Sets the color temperature of the projected image.
R-gain adjust
G-gain adjust
B-gain adjust
Pixel Shift
Horiz. Red
Horiz. Green
Horiz.Blue
Vert. Red
Vert. Green
Vert. Blue
1 - 7
1 - 7
1 - 7
1 - 5
1 - 5
1 - 5
4
4
4
3
3
3
Adjust REGI (Pixel shift) of Horizontal Red
Adjust REGI (Pixel shift) of Horizontal Green
Adjust REGI (Pixel shift) of Horizontal. Blue
Adjust REGI (Pixel shift) of Vertical Red
Adjust REGI (Pixel shift) of Verticall. Green
Adjust REGI (Pixel shift) of Vertical Blue
Protocol Cedia/Compatible Cedia Select of RS-232C communication command
Adjust Pattern 7 types
Color cross-hatch
Cross-hatch
ANSI Contras
Ramp(W/B)
Ramp(R)
Ramp(G)
Ramp(B)
Return Color cross-hatch
Color cross-hatch Select of the test pattern
Factory Reset [ENTER] - Factory shipping setting
ANSI Contras
%TQUUJCVEJ
Ramp(W/B R G B㧕
ADJUST PATTERN SCREEN
MENU SCREEN
%QNQTETQUUJCVEJ
Soft
Ver.
Adjust Option Info.
Protocol ENTER
Adjust Pattern
Factory Reset
(When the key is pressed, the screen is changed one after the other as shown in the above.)
