20 (No.PA062<Rev.001>)
5.3 LOG (SELF-DIAGONOSIS RECORD AND INDICATION)
5.3.1 OUTLINE
By using the special setting and adjustment software, data relat-
ed to abnormal operation (history) stored in the projector can be
load.
On the basis of contents "LED (INDICATOR) WARNING INDI-
CATONS" set and lamp use time, internal and external tempera-
ture, and the data prior to the previous usage time can be viewed
as a table.
READING PROCEDURE
(1) Run ServiceCommander Software
(2) Select Port, click [Connect] to connect the PC and the
projector.
(3) select Log menu
(4) Click to the [Read from set]
The first number is error code.
(5) Click the [Save to File] button and save the TEXT file to
PC.
(6) Click the [Clean Log] button and delete all data stored in
projector.

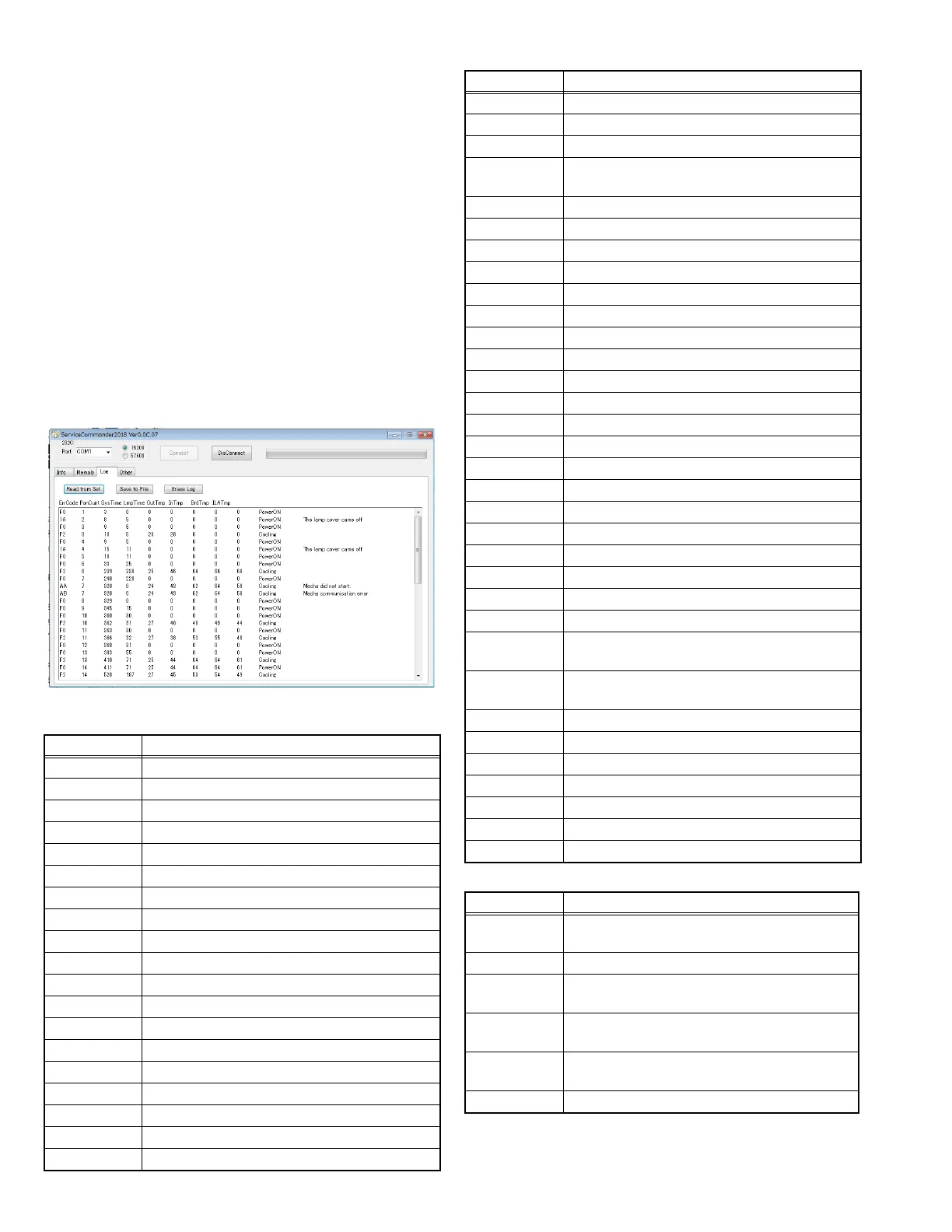

Fig.5-1 "Error log" screen
ERROR LOG
EVENT LOG
Error code Content
01 Outside air temperature abnormality
02 Inside air temperature abnormality
03 Temperature abnormality of Rch D-ILA device
04 Temperature abnormality of Gch D-ILA device
05 Temperature abnormality of Bch D-ILA device
09 Temperature abnormality of the DD PWB VPM
0A Temperature abnormality of DD ASIC
0B Temperature abnormality of DD ASIC
0F Temperature is not detected
1A Interlock of lamp door detected abnormality
30 Fan error detected
31 Power exhaust fan is abnormal (stop)
32 Power intake fan is abnormal (stop)
33 Lamp/PCS cooling fan is abnormal (stop)
34 B device cooling fan is abnormal (stop)
35 RG device cooling fan is abnormal (stop)
37 DD FPGA fan abnormal (stop)
38 DD ASIC fan abnormality (stop)
39 Lamp exhaust fan is abnormal (stop)
70 Lamp usage time over
80 CPU PWB is abnormal
86 Receiving error of HDMI
90 Device communication error (Do not transition
to emergency)
91 DD FPGA does not start up
92 DD VPM CPU does not start up
93 Communication error of DD FPGA
94 DD PWB does not start up
95 Communication error of DD ASIC
96 Communication error of DD PWB
97 Communication error of DD ASIC
98 Power supply error of D-ILA device
9A Rch D-ILA device is not connected
9B Rch D-ILA device is not connected
9C Gch D-ILA device is not connected
9D Gch D-ILA device is not connected
9E Bch D-ILA device is not connected
9F Bch D-ILA device is not connected
A1 Power PWB is abnormal
A3 Power on sequence error
A5 Communication error with C.SENS PWB
A6 Light quantity balance is abnormal
AA Mecha CPU does not start.
AB Communication error with Mecha CPU
B0 USB memory was disconnected during FW up
by USB
B1 LAN line disconnected during FW up via LAN
line
B2 Main FW up failed
B3 VPM FW up failed
B6 Mecha FW up failed
B7 HDMI_DRV FW up failed
B8 CMS_DATA FW up failed
B9 USB file format system is different
BA UP data file (number of files) is insufficient
Event code Content
F0
Recorded after power is turned on
(After D-ILA logo is displayed)
F1 Record after 1 hour after power is turned on
F2
Recorded after power OFF operation (receiv-
ing)
FA
Power OFF is executed by the Off Timer func-
tion
FB
Power OFF is executed by the ECO Mode func-
tion
E0 VP: Confirm "TMDS LOCK"
