(No.PA062<Rev.001>) 11
SECTION 3
DISASSEMBLY
3.1 CAUTION AT DISASSEMBLY
• Make sure that the power cord is disconnected from the outlet.
• Pay special attention not to break or damage the parts. Also, please pay attention to lens dirt and fingerprints.
• Make sure that there is no bent or stain on the connectors before inserting, and firmly insert the connectors.
• Be sure to reattach the wire clamps removed during the procedure to the original positions. (Attaching the wire clamps in wrong
positions may affect the performance.)
REFERENCE:
When removing each board, remove the connector if necessary. The operation is easier if you write down the connection points (con-
nector numbers) of the connector. For connection of each board, refer to the "WIRING DIAGRAM" of the Standard Circuit Diagram.
3.2 DISASSEMBLY PROCEDURE

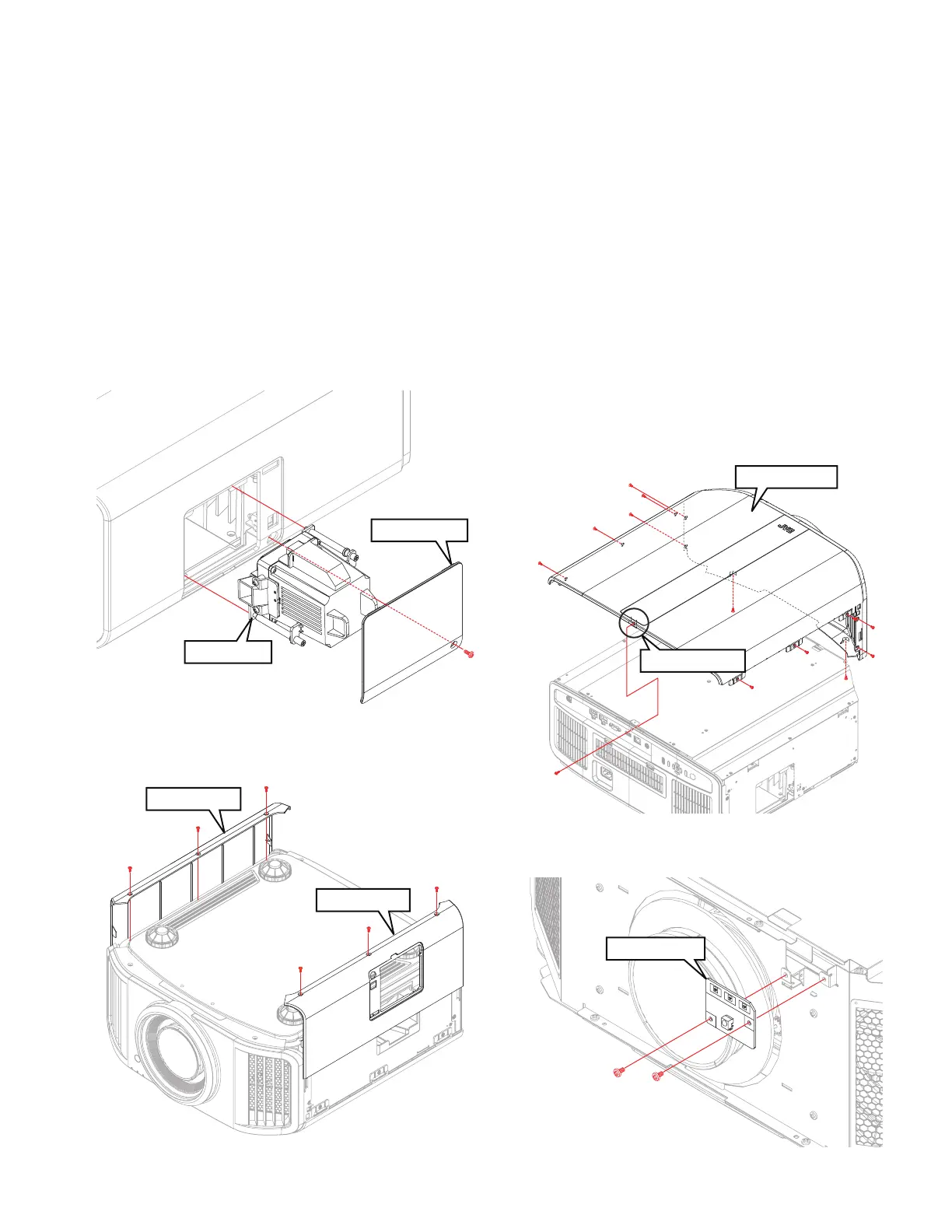

3.2.1 REMOVING THE LAMP UNIT (Fig.3-1)
(1) Remove the 1 screws (a), and remove the LAMP DOOR.
(2) Loosen the 2 screws (b), and remove the LAMP UNIT.
Fig.3-1
3.2.2 REMOVING THE SIDE PANEL (Fig.3-2)
(1) Remove the 6 screws, and remove the SIDE PANEL of
both side.
Fig.3-2
3.2.3 REMOVING THE TOP CABINET (Fig.3-3)
(1) Remove the 13 screws.
(2) Lift rear side of the TOP CABINET about 2 cm, and slide
the TOP CABINET forward to remove it.
NOTE:
Be careful as the SCREW BASE of the top cabinet is
easy to break.
Fig.3-3
3.2.4 REMOVING THE FRONT PWB (Fig.3-4)
(1) Remove the 2 screws, and remove the FRONT PWB.
Fig.3-4
SIDE PANEL
SIDE PANEL
To Next Page
