(No.PA048<Rev.002>)1-17
3.2.36 REMOVING THE POWER PWB (Fig.3-7)
(1) Remove the 5 screws [A], then remove the POWER PWB.
3.2.37 REMOVING THE AC CONNECTOR (Fig.3-7)
(1) Remove the 2 screws [B], then remove the AC CONNEC-
TOR.
3.2.38 REMOVING THE LAMP COVER PWB (Fig.3-7)
(1) Remove the 1 screw [C], then remove the LAMP COVER
PWB.
3.2.39 REMOVING THE BOTTOM CHASSIS (Fig.3-7)
(1) Remove the FOOT.
(2) Remove the 14 screws [D], then remove the BOTTOM
CHASSIS.

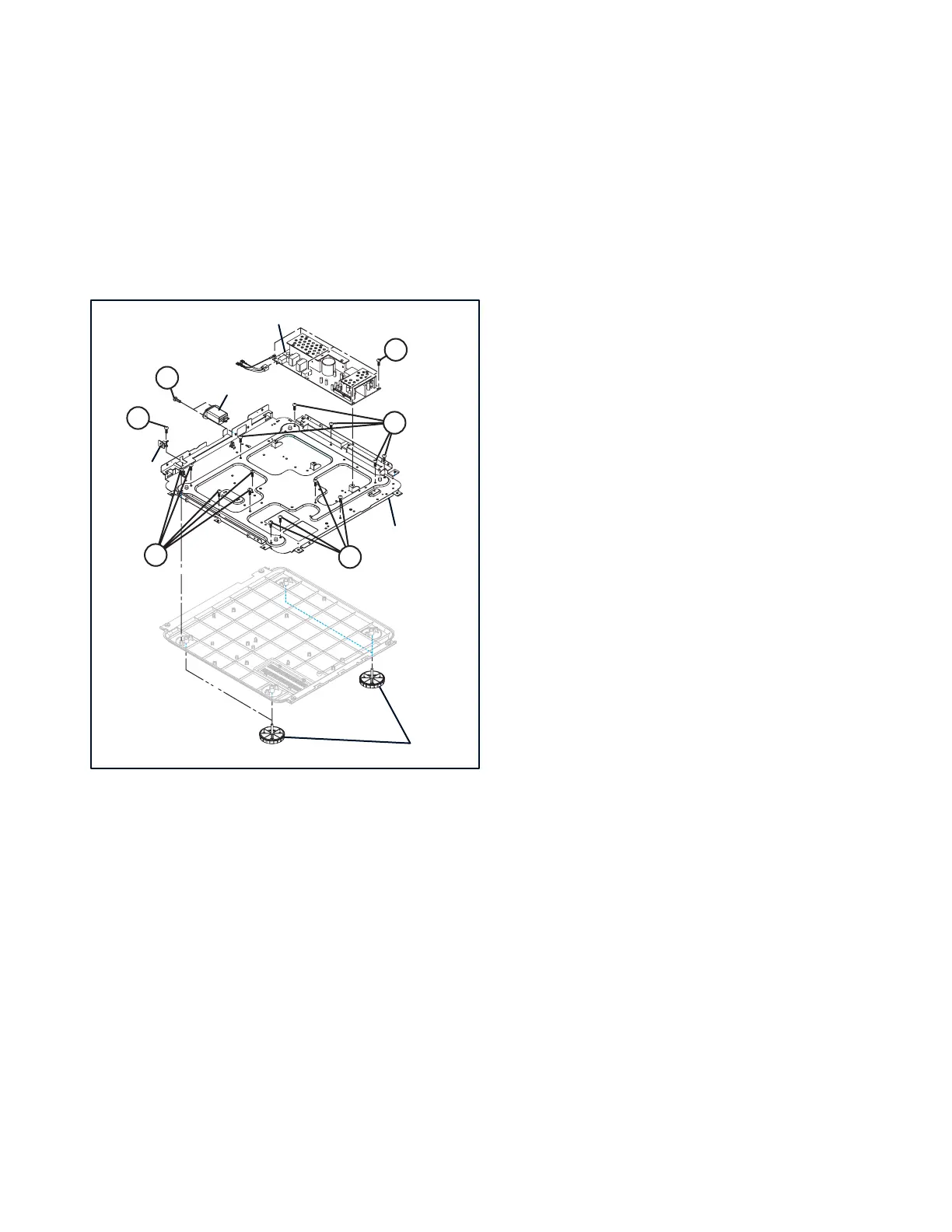

Fig.3-7
AA
BB
CC
POWER PWB
LAMP COVER PWB
AC CONNECTOR
BOTTOM CHASSIS
FOOT
DD
DD
DD
