1-16 (No.PA048<Rev.002>)
3.2.27 REMOVING THE PROCESSOR PWB (Fig.3-5)
(1) Remove the 6 screws [A], then remove the PROCESSOR
PWB.
3.2.28 REMOVING THE DD COOLING FAN (Fig.3-5)
(1) Remove the 3 screws [B], then remove the DD COOLING
FAN UNIT.
(2) Remove the 3 screws [C], then remove the DD COOLING
FAN.
3.2.29 REMOVING THE DD SUB PWB (Fig.3-5)
(1) Remove the 4 screws [D], then remove the DD SUB PWB.
3.2.30 REMOVING THE MEMC PWB (Fig.3-5)
(1) Remove the 4 screws [E], then remove the BRACKET.
(2) Remove the 4 screws [F] and 4 screws [G], then remove
the MEMC PWB.
3.2.31 REMOVING THE SHIELD RIGHT (Fig.3-5)
(1) Remove the 6 screws [H], then remove the SHIELD
RIGHT.

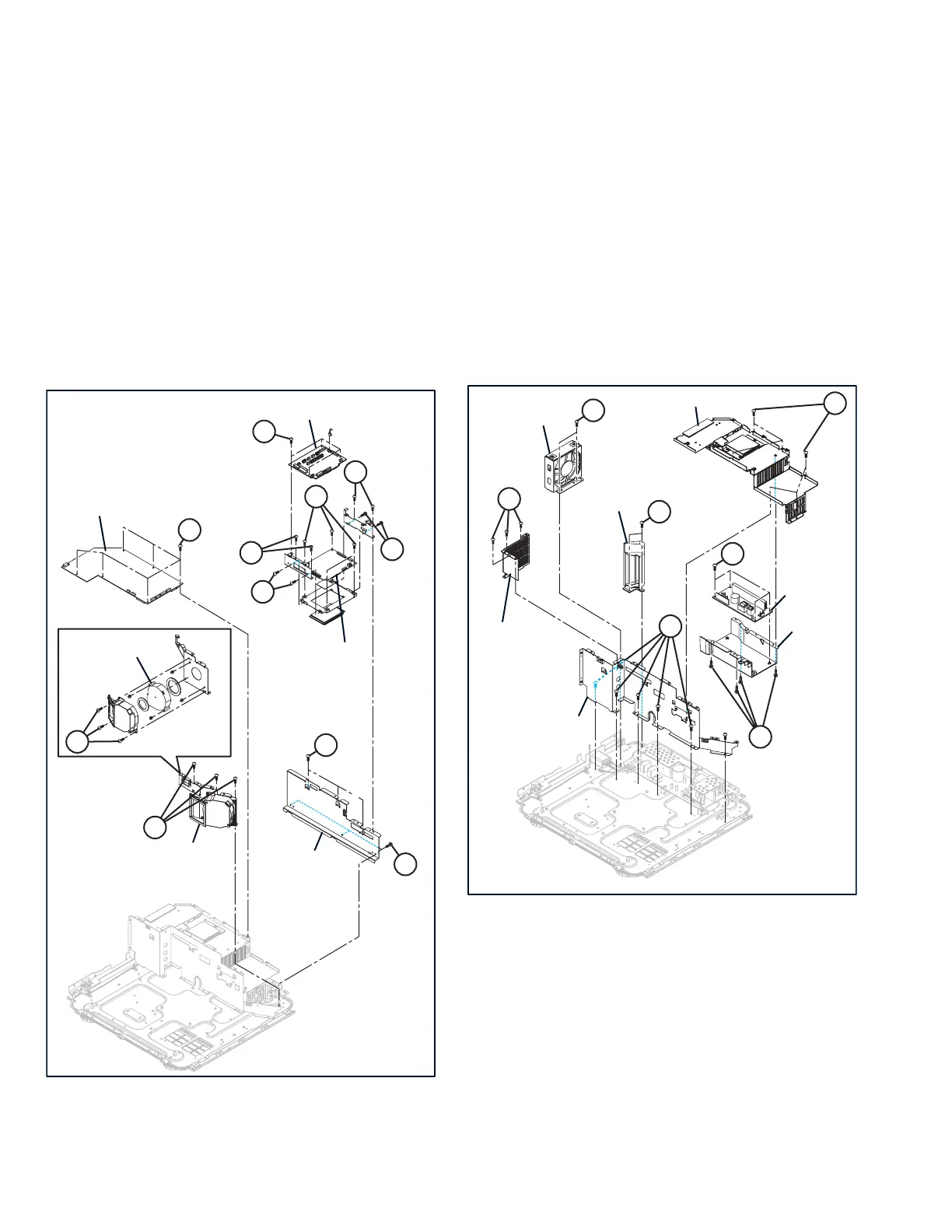

Fig.3-5
3.2.32 REMOVING THE BLIND EXHAUST (Fig.3-6)
(1) Remove the 2 screws [A], then remove the BLIND EX-
HAUST.
3.2.33 REMOVING THE EXHAUST FAN (Fig.3-6)
(1) Remove the 2 screws [B], then remove the EXHAUST
FAN.
3.2.34 REMOVING THE BALLAST PWB (Fig.3-6)
(1) Remove the 6 screws [C], then remove the SHIELD POW-
ER.
(2) Remove the 4 screws [D], then remove the DUCT BAL-
LAST.
(3) Remove the 4 screws [E], then remove the BALLAST
PWB.
3.2.35 REMOVING THE SHIELD CENTER (Fig.3-6)
(1) Remove the 3 screws [F], then remove the SHIELD FAN.
(2) Remove the 6 screws [F], then remove the SHIELD CEN-
TER.
Fig.3-6
PROCESSOR PWB
SHIELD RIGHT
DD SUB PWB
DD COOLING
FAN
DD COOLING
FAN UNIT
HH
HH
EE
EE
EE
FF
FF
DD
AA
MEMC PWB
BB
CC
EXHAUST FAN
BLIND EXHAUST
DUCT BALLAST
BALLAST PWB
SHIELD CENTER
SHIELD FAN
SHIELD POWER
BB
FF
AA
EE
CC
DD
GG
