- 16 -

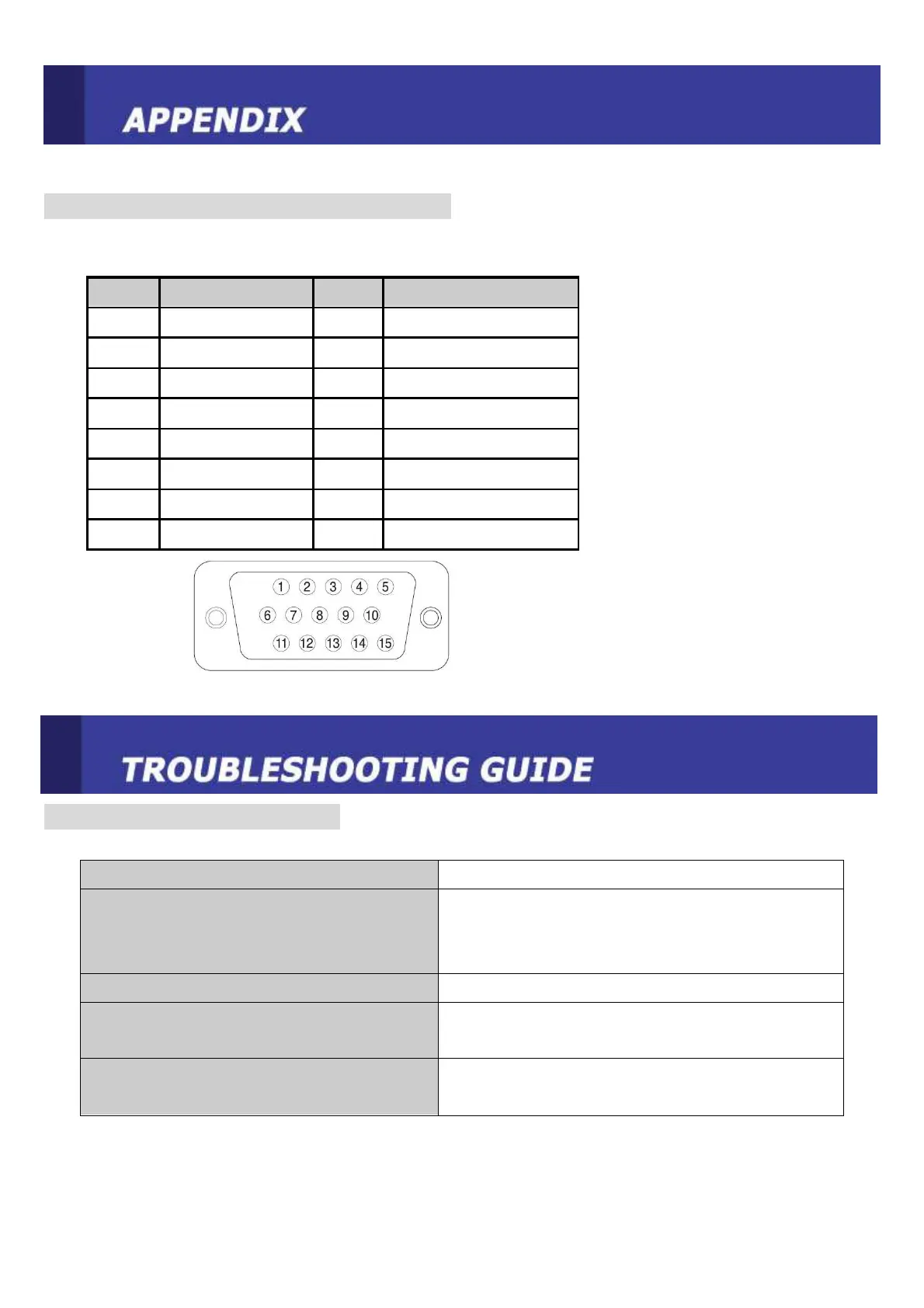

D-SUB CONNECTOR PIN ASSIGMENTS
PIN ASSIGNMENT
Pin No.
Pin Name Pin No.
Pin Name
1 RED VIDEO 9 NC
2 GREEN VIDEO 10 GROUND
3 BLUE VIDEO 11 GROUND
4 NC 12 SDA (for DDC)
5 GROUND 13 H-SYNC
6 RED GROUND 14 V-SYNC
7 GREEN GROUND 15 SCL (for DDC)
8 BLUE GROUND
TROUBLESHOOTING GUIDE
Troubleshooting Troubleshooting Tip
No picture
1. Make sure if the power supply is connected property.
2. Turn on the power.
3. Select the input signal right for the connected port.
The screen is too light or to dark Adjust the BRIGHTNESS
The screen size will not fit for the PC input
Press the AUTO button among buttons in the front.
(It is used only in the PC signal)
Strange colors using the PC input
In the FUNCTION menu of the OSD menu,
perform AUTO-ADJUST.
2010 Victor Company of Japan, Limited
