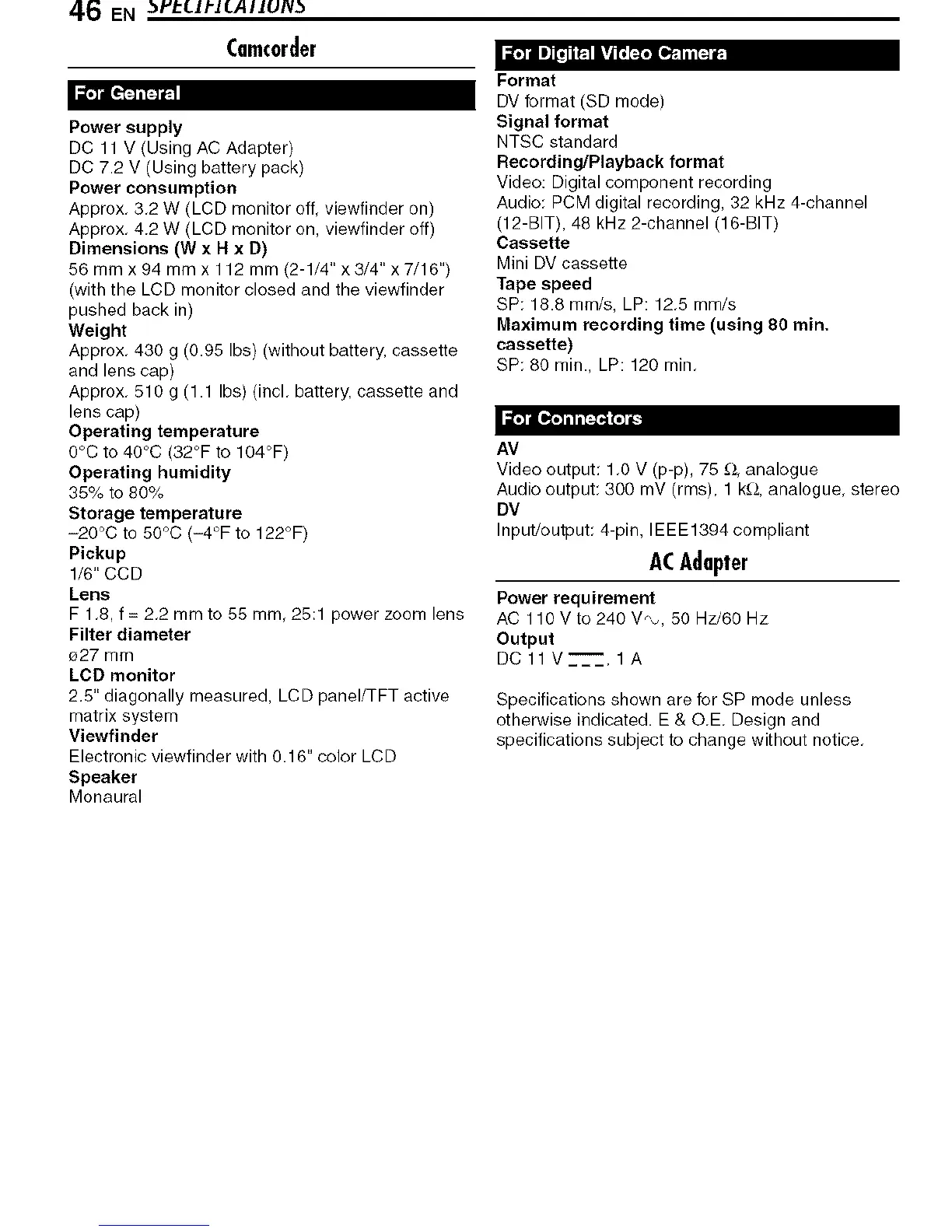

46 EN bVtUPI_AIIUIVb
Cemcorder
Power supply
DC 11 V (Using AC Adapter)
DC 7.2 V (Using battery pack)
Power consumption
Approx. 3.2 W (LCD monitor off, viewfinder on)
Approx. 4.2 W (LCD monitor on, viewfinder off)
Dimensions (W x H x D)
56 mm x 94 mm x 112 mm (2-1/4" x 3/4" x 7/16")
(with the LCD monitor closed and the viewfinder
pushed back in)
Weight
Approx. 430 g (0.95 Ibs) (without battery, cassette
and lens cap)
Approx. 510 g (1.1 Ibs) (incl. battery, cassette and
lens cap)
Operating temperature
0°C to 40°C (32°F to 104°F)
Operating humidity
35% to 80%
Storage temperature
-20°C to 50°C (-4°F to 122°F)
Pickup
1/6" CCD
Lens
F 1.8, f = 2.2 mm to 55 ram, 25:1 power zoom lens
Filter diameter
e27 mm
LCD monitor
2.5" diagonally measured, LCD panel/TFT active
matrix system
Viewfinder
Electronic viewfinder with 0.16" color LCD
Speaker
Monaural
Format
DV format (SD mode)
Signal format
NTSC standard
Recording/Playback format
Video: Digital component recording
Audio: PCM digital recording, 32 kHz 4-channel
(12-BIT), 48 kHz 2-channel (16-BIT)
Cassette
Mini DV cassette
Tape speed
SP: 18.8 ram/s, LP: 12.5 mm/s
Maximum recording time (using 80 rain.
cassette)
SP: 80 rain., LP: 120 min.
AV
Video output: 1.0 V (p-p), 75 _:_,analogue
Audio output: 300 mV (rms), 1 k_,t,analogue, stereo
DV
Input!output: 4-pin, IEEE1394 compliant
ACAdopter
Power requirement
AC 110 V to 240 V_, 50 Hz/60 Hz
Output
DC 11V__--Z__, 1A
Specifications shown are for SP mode unless
otherwise indicated. E & O.E. Design and
specifications subject to change without notice.
