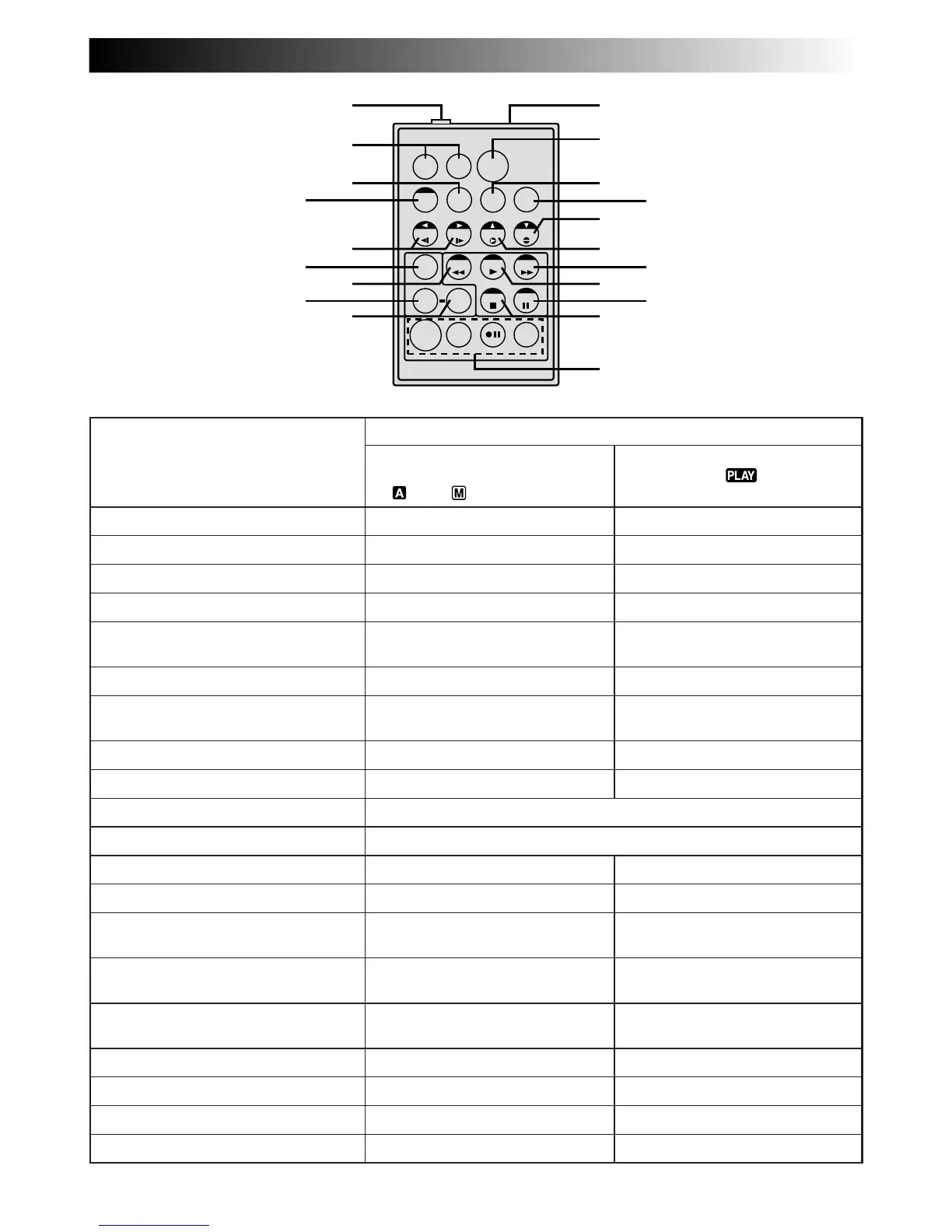

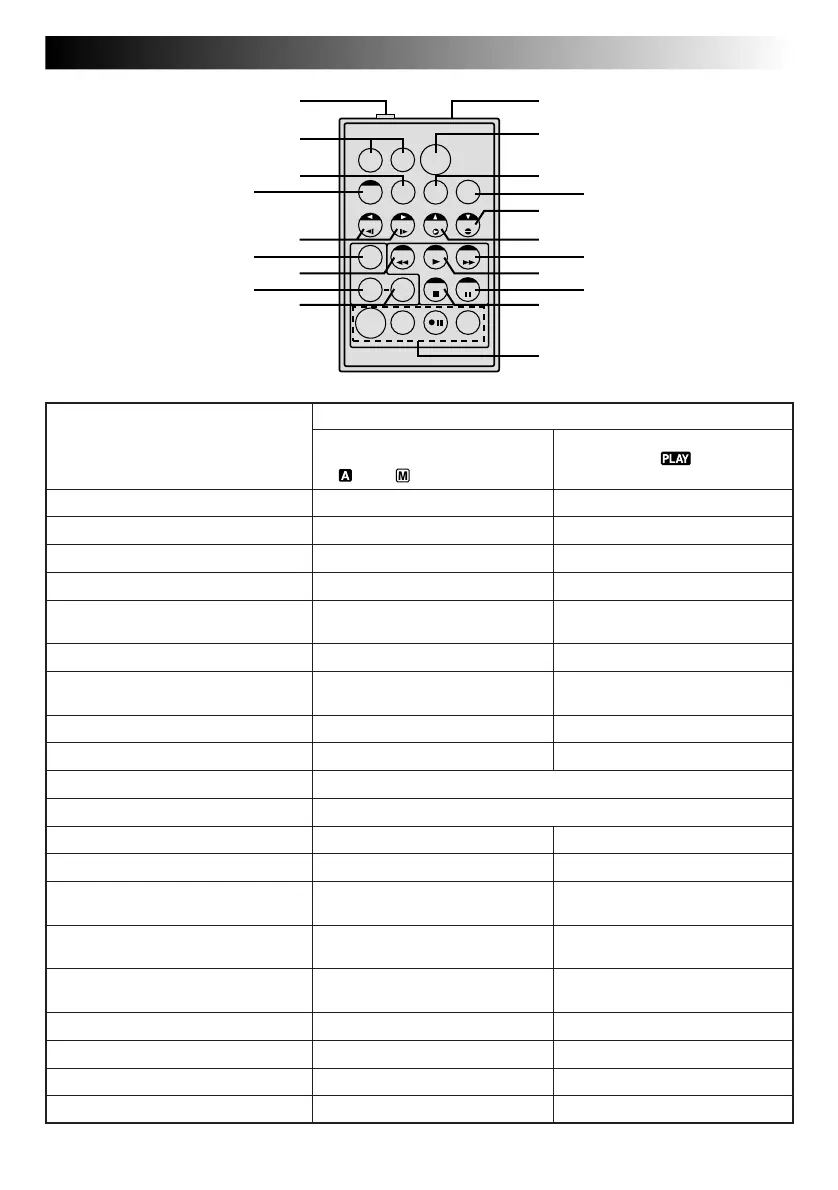

RM-V711U
(provided)
Buttons
1 PAUSE IN Connector
2 Zoom (T/W) Buttons
3 DISPLAY Button
4 SHIFT Button
5 SLOW Rewind/Forward Buttons
Left/Right Buttons
6 FADE/WIPE Button
7 REW Button
8 EFFECT Button
9 EFFECT ON/OFF Button
0 Infrared beam transmitting window
! START/STOP Button
@ AUDIO MONITOR Button
# MBR SET Button
$ Down Button
A. DUB Button
% Up Button
INSERT Button*
^ FF Button
& PLAY Button
* PAUSE Button
( STOP Button
) R.A.EDIT Buttons
Functions
With the camcorder’s Power
Switch set to the camera position
(“ ” or “ ”).
—
Zoom in/out (Z pg. 14)
—
—
—
—
—
—
—
—
Transmits the beam signal.
Functions same as the Recording Start/Stop button on the camcorder.
—
—
—
—
—
—
—
—
—
—
—
With the camcorder’s Power
Switch set to “ ”.
Z pg. 43
Zoom in/out (Z pg. 40)
Z pg. 20
Z pg. 40
Z pg. 40
Z pg. 40
Z pg. 43
Rewind, Reverse Shuttle Search
(Z pg. 29)
Z pg. 41
Z pg. 41
Z pg. 31
Z pg. 42
Z pg. 40
Z pg. 48
Z pg. 40
—
Fast-Forward, Forward Shuttle
Search (Z pg. 29)
Playback start (Z pg. 29)
Pause (Z pg. 29)
Stop (Z pg. 29)
Z pg. 42 – 47
* This function is unavailable.
