JVC GR-FXM270A User Manual

32 EN
PLAYBACK Connections And Tape Dubbing
A/V cable
(provided)
Yellow to
Video Output
Connector cover*
To TV or VCR
Yellow to Video
Input

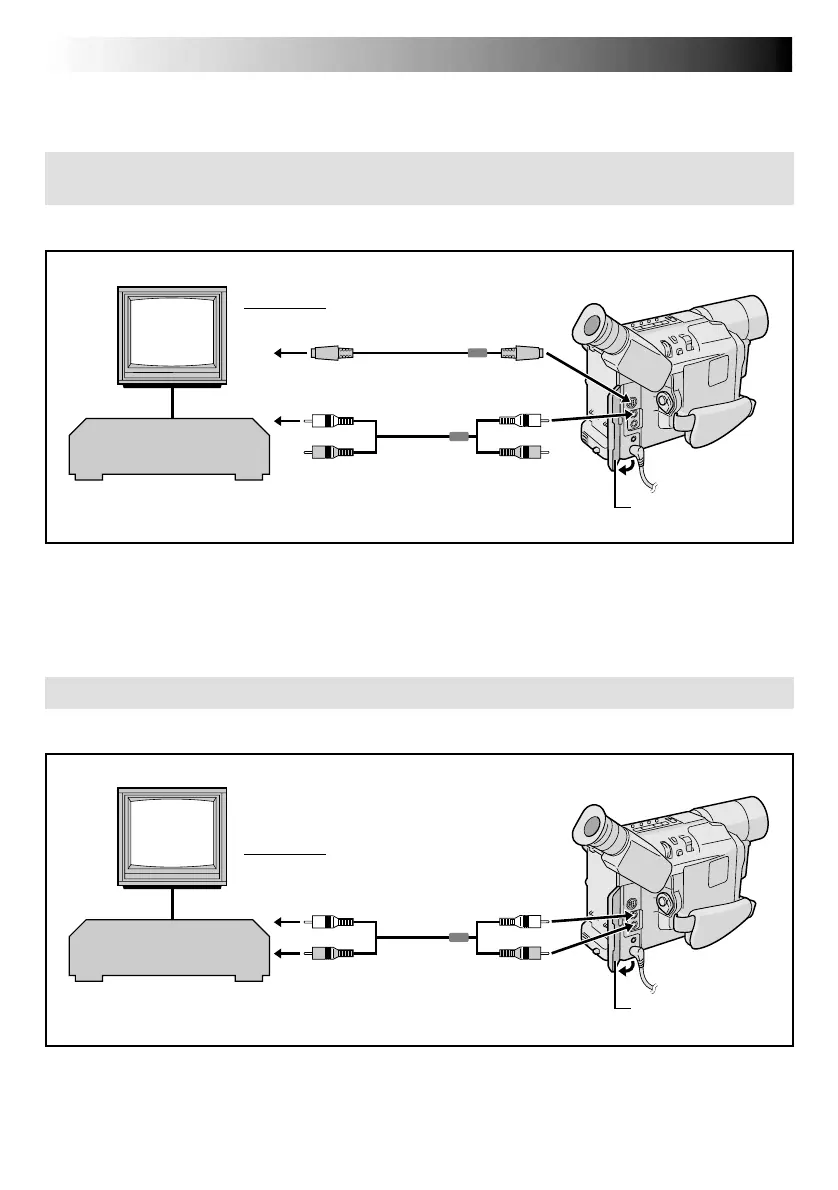

B. Connection to a TV or VCR equipped only with A/V input connectors
Use the provided A/V cable.
White to
Audio Output
White to Audio
Input
Yellow: not
connected
A. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input connectors
(GR-SXM470A/SXM27EA/SX22EA only)
Use the provided A/V cable and S-Video cable.
Yellow: not
connected
To S-Video Input
To S-Video
Output
To TV or VCR
* When connecting the cables, open this cover.
Connector cover*
White to
Audio Input
S-Video cable
(provided)
White to
Audio Output
A/V cable
(provided)
TV
VCR
* When connecting the cables, open this cover.
VCR
TV
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.
