2-21 2-22
MAIN(LCD)

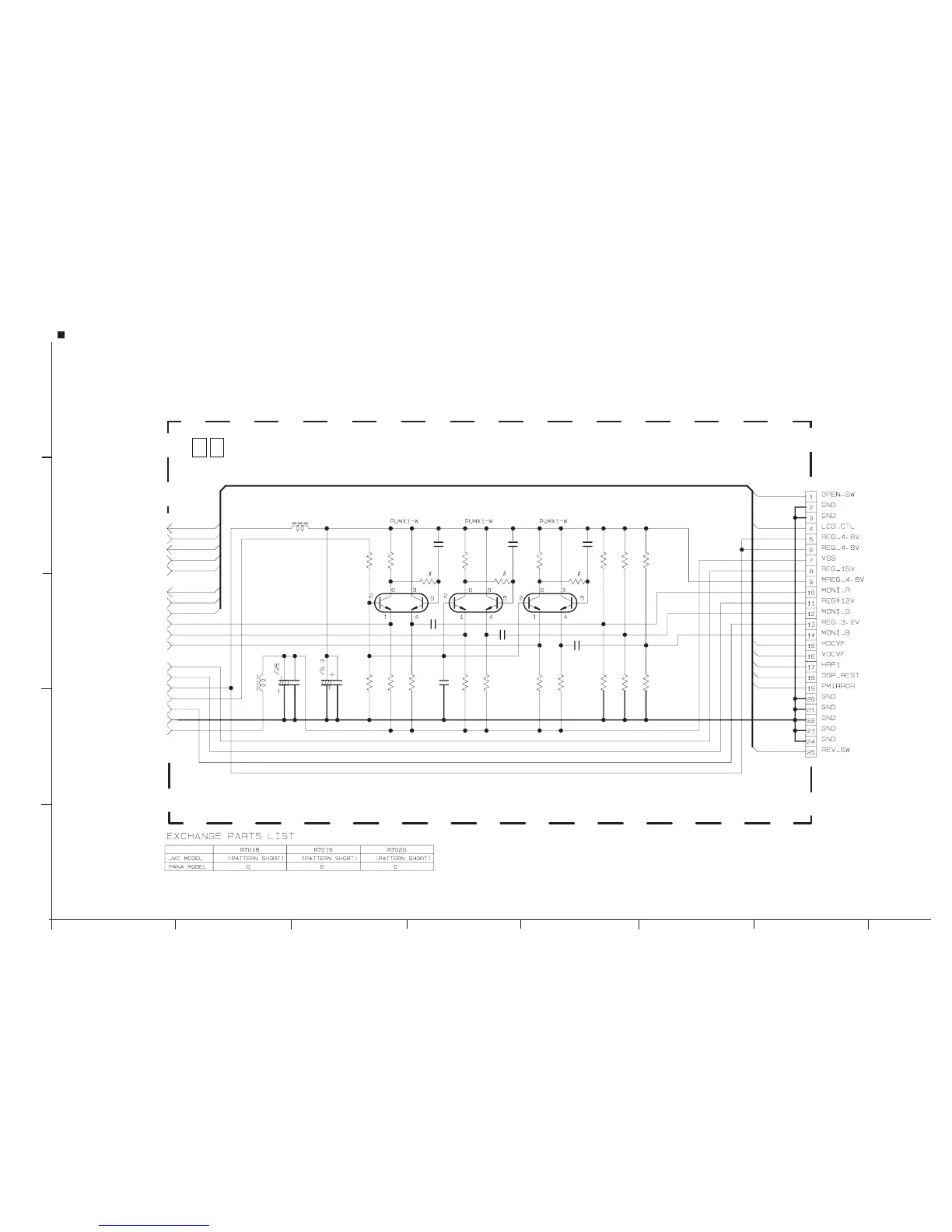

SCHEMATIC DIAGRAM
HRP1
VDCVF
R7018
OPEN_SW
CN16
R7019
LCD_CTL
R7020
REV_SW
HDCVF
PMIRROR
DSP_REST
Q7001 Q7002 Q7003
C7008
DAC_3.2V
REG+12V
C7006
C7007
ROUT
GOUT
BOUT
REG_4.8V
REG_3.2V
REG_15V
REG_-15V
GND
L7002
C7009 C7010 C7011
L7001 C7002 C7001 R7002 R7004 C7005 R7007
R7003
R7010 R7005
R7006 R7001
R7008
R7009
R7011
R7012R7013 R7014R7015 R7016R7017
C7004 C7003
1
11
22
µ
22µ 0.01 4. 7 10k 8.2k 0.01 8.2k
2.4k
8.2k 22K
2.4k 12k
22K
2.4k
22K
10k10k 10k10k 10k10k
0.01 10
HDCVF
OPEN_SW
LCD_CTL
REV_SW
PMIRROR
DSP_REST
HRP1
VDCVF
OPEN_SW
HDCVF
VDCVF
HRP1
DSP_REST
PMIRROR
REV_SW
LCD_CTL
0
1
MAIN(LCD)
y30259001a_rev0.1
NOTE : The parts with marked() is not used.
NOTES : ٨For the destination of each signal and further line connections that are cut off from this diagram,
refer to "BOARD INTERCONNECTIONS".
٨When ordering parts, be sure to order according to the Part Number indicated in the Parts List.



