ELECTRICAL ADJUSTMENT PROCEDURES
• WAVEFORM
• Attension and Reference
a) The PG checking must do when RF Level is Maximum and SERVO system is Locking (MTR MODE)
b) V.H/SW Level is 2Vpp.

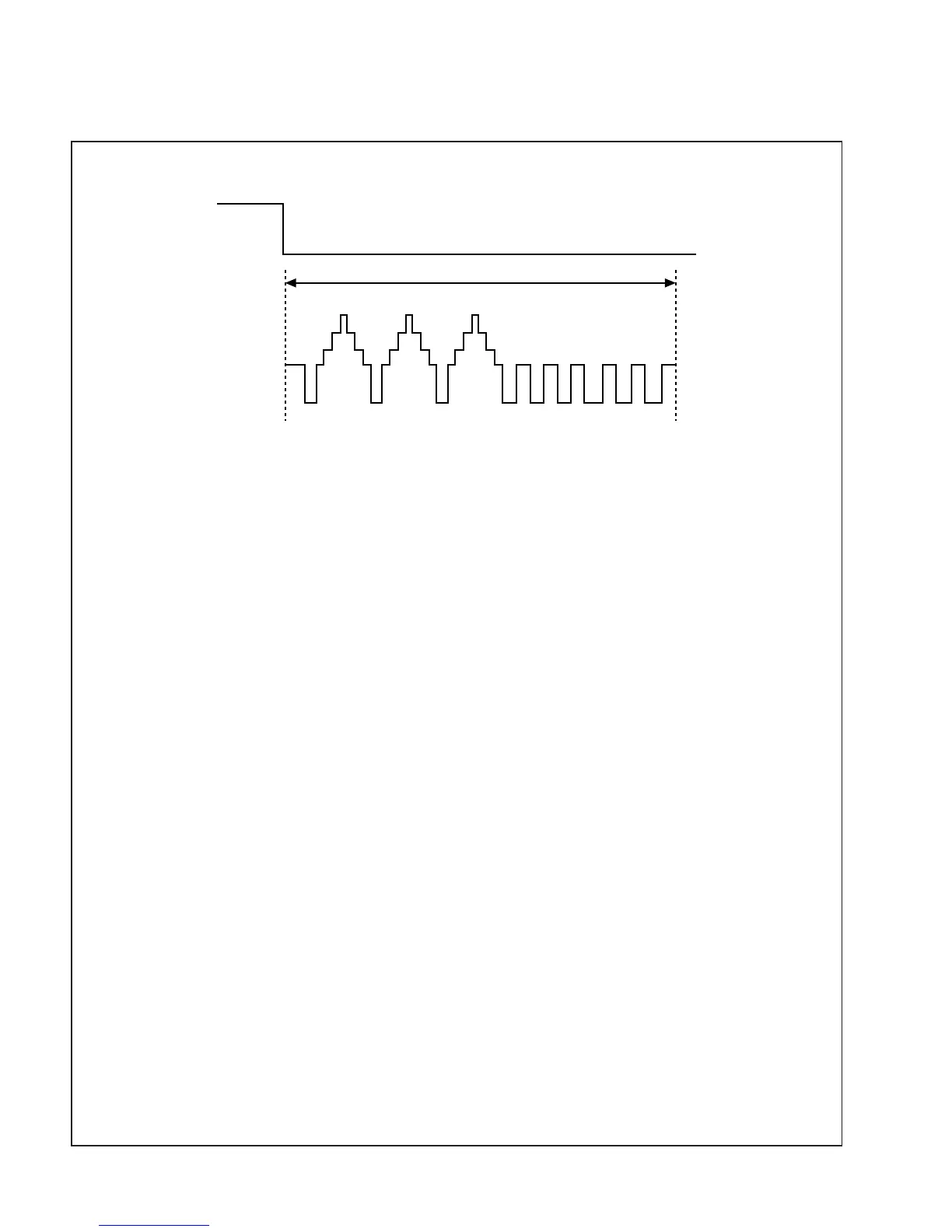

H/SW
Composite
VIDEO
6.5H(416us)
