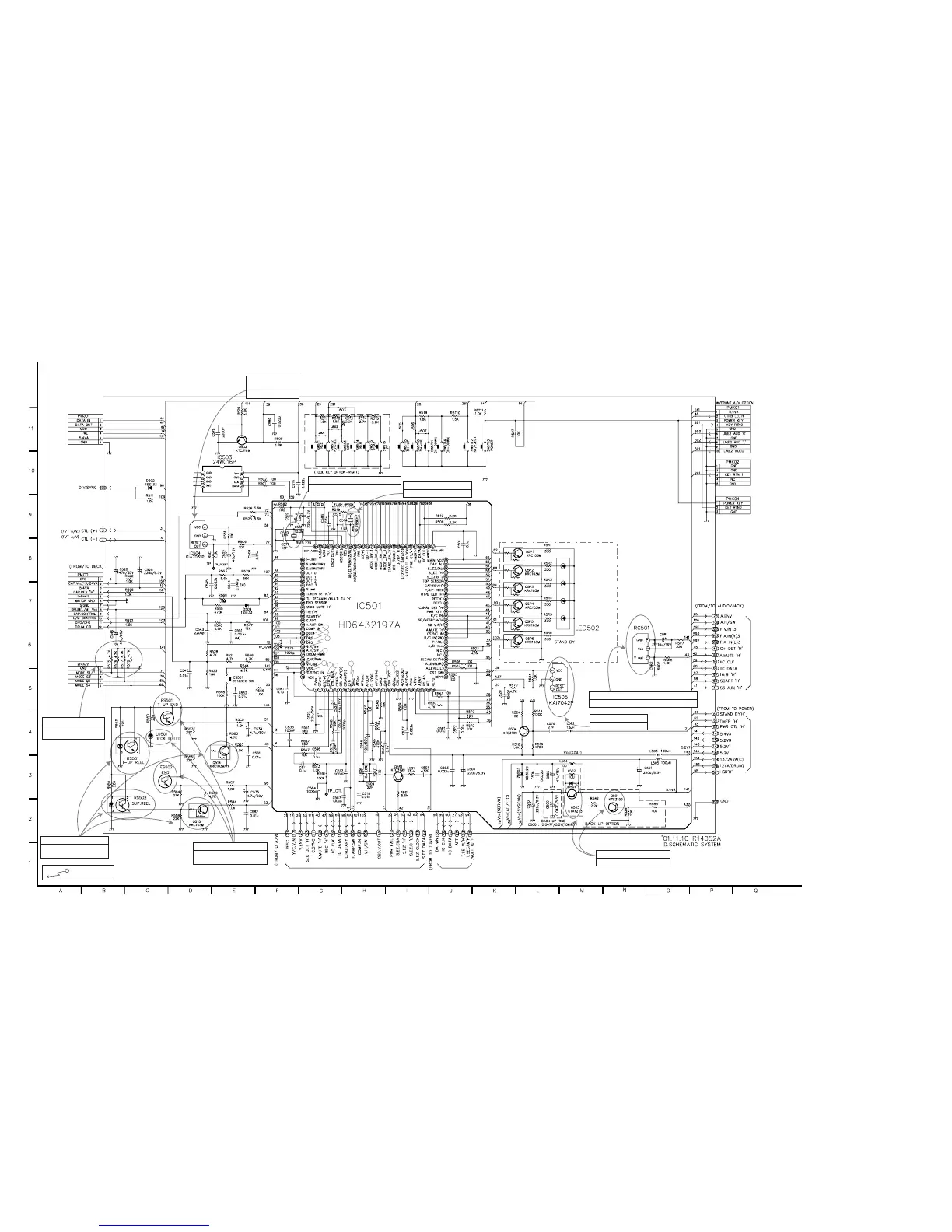

4. System Circuit Diagram
8
76
3
4
5
5
1
2
9
WAVEFORM
LED DOT MODEL ONLY
PWR
VCR
TIMER
REC/STANDBY
Q501, Q503 are defective.
µ-COM is unstable.
IC505 is defective.
VCR will not operate.
RC501 is defective.
Remote control’s Pulse will not received.
X501 is defective.
CLOCK SETTING will not operate.
X502 is defective.
µ-COM will not operate.
ES501, ES502, LD501 are
defective.
Auto Rew will not working.
RS501,RS502,Q514,
Q515 are defective.
Auto stop occures.
R575, R576, R577,
R578 are defective.
Deck will not operate.
IC504 is defective.
Reset is defective.
Set dead.
3-35 3-36
