JVC HR-J282EU - Waveform and Voltage Information; IC Waveform Examples and Voltage Charts

3-37

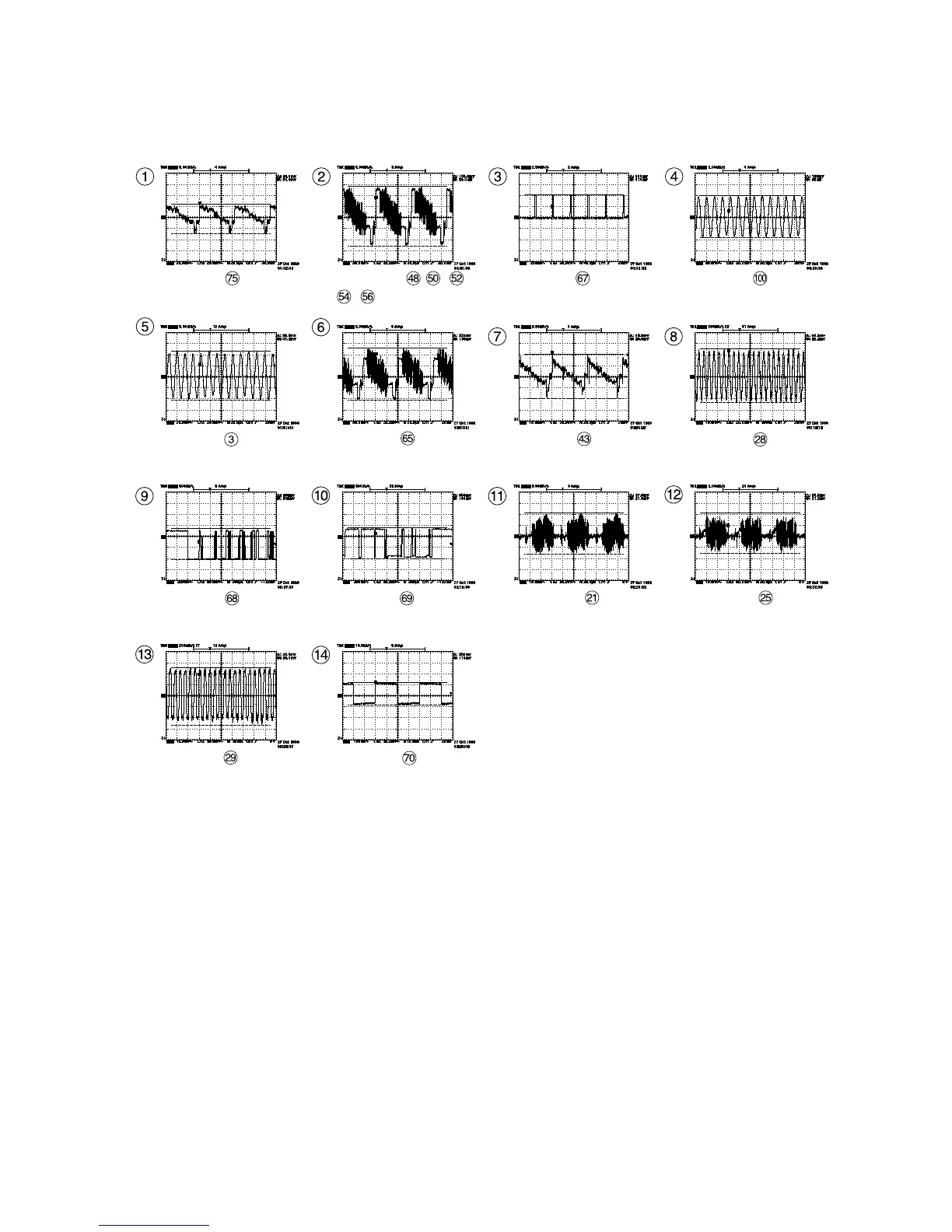

WAVEFORM & VOLTAGE SHEET
IC301 Pin 20
PB mode
500mvp-p
IC301 Pins 38,32,31
38, 38
Video in 1Vp-p
IC301 Pin 28
PB/REC mode
4.0Vp-p
IC301 Pin 7
REC mode
1.1Vp-p
IC301 Pin 6
REC mode
2.0Vp-p
IC301 Pin 29
PB mode
2.02Vp-p
IC301 Pin 41
PB mode
400mVp-p
IC301 Pin 64
PB mode
400mVp-p
IC301 Pin 23
PB/REC mode
5Vp-p
IC301 Pin 24
PB/REC mode
5Vp-p
IC301 Pins 71 72
REC mode
340mVp-p
IC301 Pins 51 54
PB mode
300mVp-p
IC301 Pin 63
PB mode
400mVp-p
IC301 Pin 11
PB mode
3.6Vp-p
_ IC301 Oscilloscope Waveform
