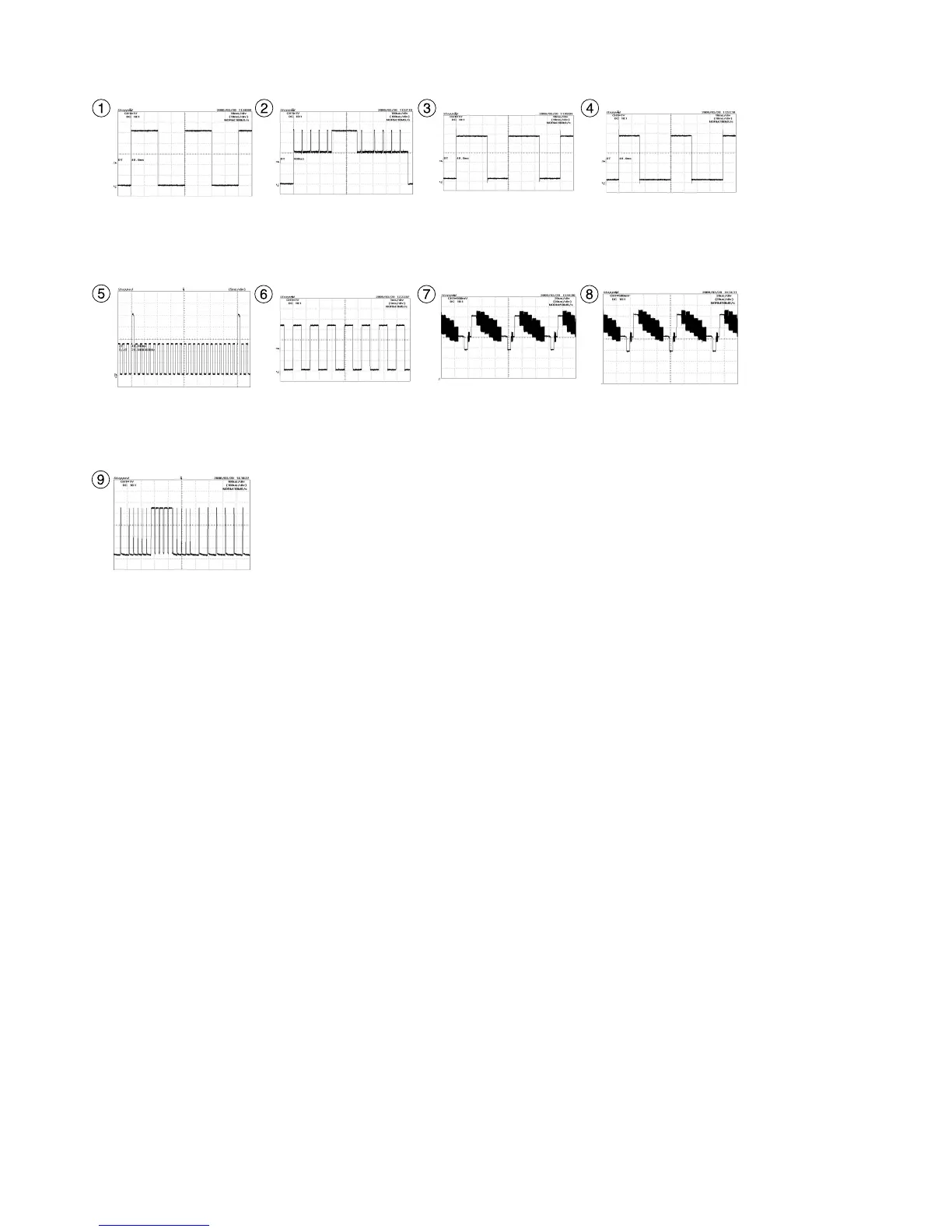

* IC501 Waveform Photographs
V.HSW
(IC501 Pin 105)
1V/10mS
REC/PB MODE
DV.SYNC
(IC501 PIN 109)
1V/100uS
QUE/REV MODE
CTL(+)
(IC501 Pin 3)
1V/10mS
CTL(-)
(IC501 Pin4)
1V/10mS
DFG/FG
(IC501 PIN 103,104)
1V/10mS
REC/PB MODE
CFG
(IC501 Pin9)
1V/10mS
V.IN
(IC501 Pin 17)
500mV/20uS
V.OUT
(IC501 Pin 19)
500mV/20uS
EE/PB MODE
C.SYNC
(IC501 Pin 111)
1.0V/100uS
EE/PB MODE
3-38
