4-2
DECK MECHANISM DISASSEMBLY
(S3)
(S2)
(S2)
(S3)
(A)
Stator
Carbon Brush
Drum Motor
Rotor
Drum Sub Assembly
Drum FPC
(S1)
(S1)
(S1)
Holder FPC
H1
H2

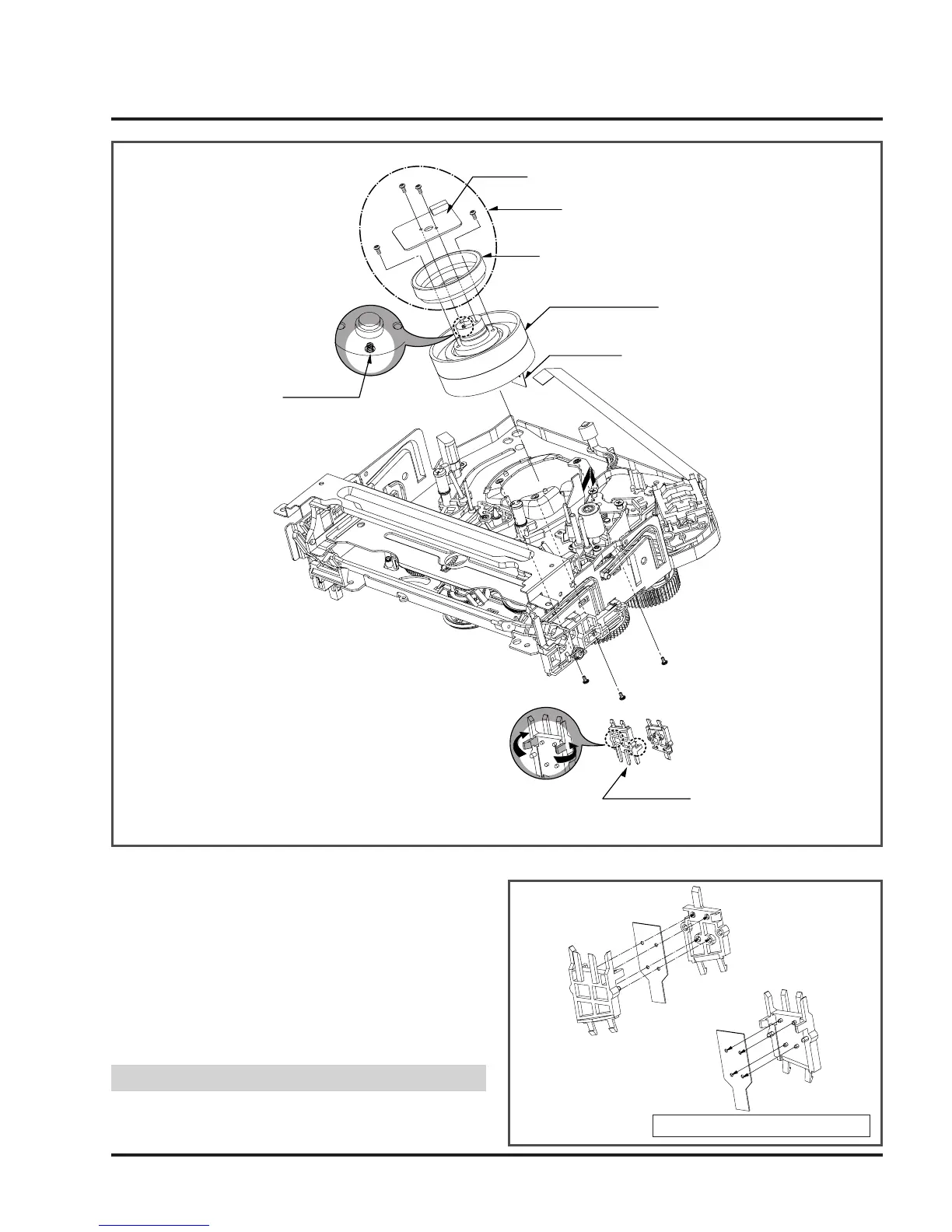

1. Drum Assembly (Fig. A-1-1)
1) Unplug the Drum FPC Connector.
2) Remove three Screws(S1) on bottom side and separate
the Drum assembly.
3) Unhook (H1), (H2) and separate the Holder FPC and
Cap FPC.
1-1. Drum Motor
1) Remove two Screws(S2) and disassemble the Stator of
the Drum Motor.
(2) Remove two Screws(S3) and separate the Rotor of the
Drum Motor from the Drum Sub assembly.
When reassembling, confirm (A) portion of the Drum Sub
assembly whether the Carbon Brush is in there or not.
Fig. A-1
NOTE
(Fig. B-1)
Holder FPC
Drum FPC
Cap FPC
Figure in the opposite direction
To Next Page
