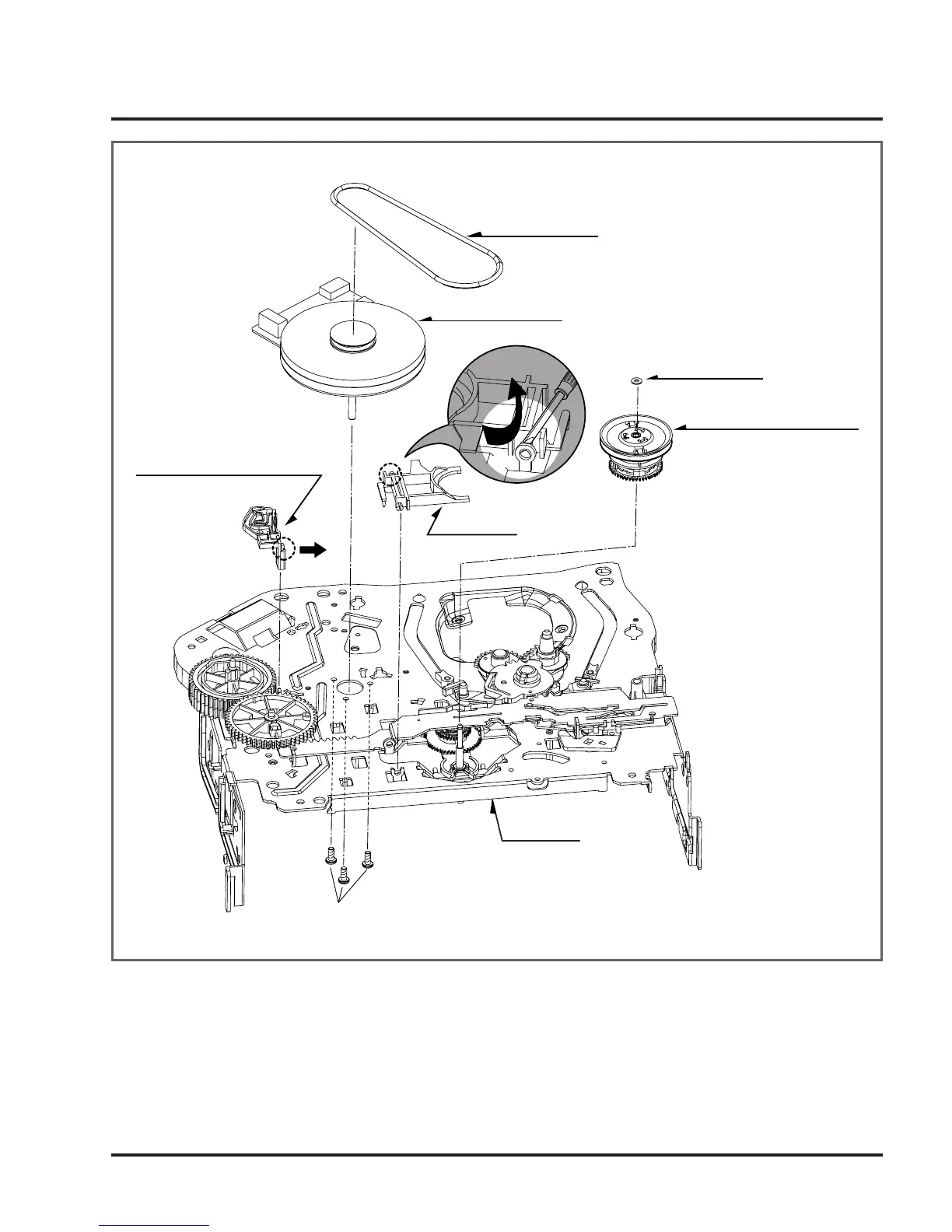

DECK MECHANISM DISASSEMBLY
Chassis
(S5)
Belt Capstan
Motor Capstan
Washer(W1)
Lever F/R
Clutch Assembly D35
Brake Assembly Capstan
(L1)
(L2)
(L1)
Fig. A-6
20. Belt Capstan (Fig. A-6-1)/
Motor Capstan (Fig. A-6-2)
1) Remove the Belt Capstan.
2) Remove the three Screws(S5) on bottom Chassis and lift
the Motor Capstan up.
21. Lever F/R (Fig. A-6-3)
1) Unlock the Locking Tab(L1) as Fig. A-6-3 and lift the
Lever F/R up.
22. Clutch assembly D35 (Fig. A-6-4)
1) Remove the Washer(W1) and lift the Clutch assembly
D35 up.
23. Brake assembly Capstan
(Fig. A-6-5)
1) Pull the Locking Tab(L2) back in direction of arrow and lift
it up.
(Fig. A-6-1)
(Fig. A-6-2)
(Fig. A-6-3)
(Fig. A-6-5)
(Fig. A-6-4)
