5
English

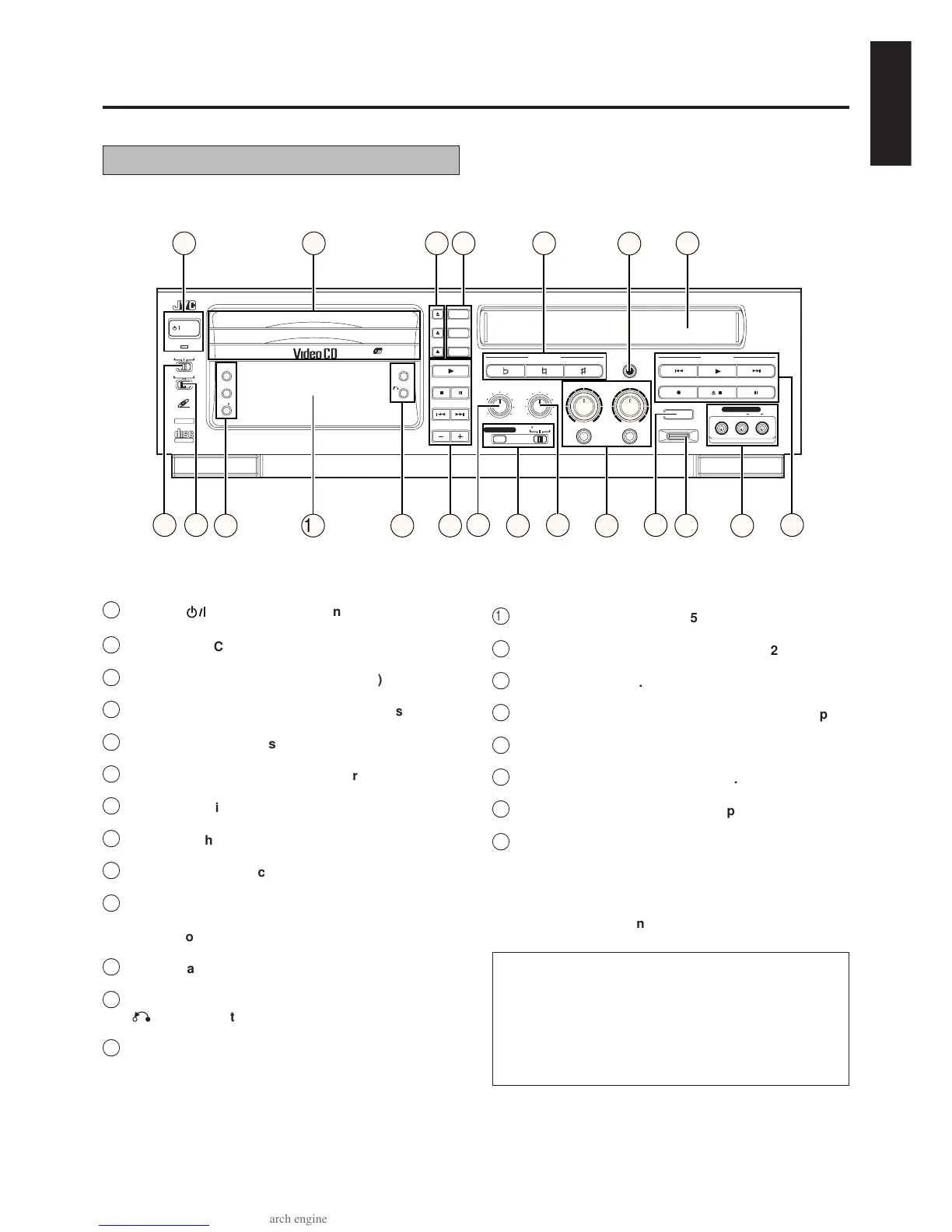

Controls, Indicators and Terminals
Front panel
$
DIGITAL ECHO knob Z p.25
%
SPATIALIZER switch and indicator Z p.20
^
MIX VOL knob Z p.29
&
MIC 1 and MIC2 knobs and MIC input terminals
Z p.25
*
SP/LP/EP button Z p.20
(
CD REC button with indicator Z p.27,29
)
VIDEO/AUDIO input terminals Z p.26,28
q
VHS CONTROL buttons
4 / ¢ Karaoke search buttons Z p.20
‰ Play button
Z p.18
¶ Record button
Z p.20
§ Stop/Eject button
Z p.18
8 Pause/Still button Z p.20
1
POWER button / STANDBY indicator
2
DISC 1 to DISC 3 trys
3
Open/Close buttons (Disc number 1 to 3) Z p.11
4
DISC 1 through DISC 3 buttons with indicators
Z p.10
5
KEY CONTROL buttons Z p.25
6
WIRELESS MIC button with indicator Z p.23
7
Cassette loading slot
8
MODE switch Z p.10
9
Video out select switch Z p.9
0
VOCAL REPLACE button Z p.25
VOCAL MASKING button Z p.25
MPX button
Z p.14
!
Display panel Z p.8
@
VIDEO INTRO button Z p.14
RETURN button Z p.16
#
‰ SELECT button Z p.11
7 Stop button
Z p.12
8
STILL button Z p.12
4 PREV / ¢ NEXT buttons
Z p.12
VCD NUMBER -/+ buttons
Z p.16
WARNING of cassette loading slot
n Do not insert fingers or foreign objects into the
cassette loading slot since this could lead to injury
or damage to the mechanism. Be especially careful
with children.
n Do not try to pull out a cassette once automatic
loading has started.
.
VHS VideoCD COMBO HR-VCD1
DISC
3
DISC
2
STANDBY
KARAOKE NORMALPBC OFF
PAL
NTSC
VIDEO CD
DIGITAL VIDEO
COMPACT
GRAPHICS
VOCAL
REPLACE
VOCAL
MASKING
MPX
NTSC/PAL COMPATIBILITY
DISC
1
3
-
DISC
TRIPLE TRAY
VIDEO
INTRO
RETURN
3
2
1
SELECT
STILL
NEXTPREV
VCD NUMBER
KEY CONTROL
DOWN NORMAL UP
DIGITAL ECHO
MIN MAX VCD
MIX VOL
MIN MAX
MIC 1
MIN MAX
MIC 2
OFF ON S.ST
WIRELESS MIC
VHS CONTROL
SP / LP / EP
CD REC
VIDEO
(
MONO
)
L AUDIO R
SPATIALIZER
LIVE RECORDING
/
4 5 7
6
321
16 21
9
14
8
18
201917121110 13 15
FRONT AV
/ POWER
