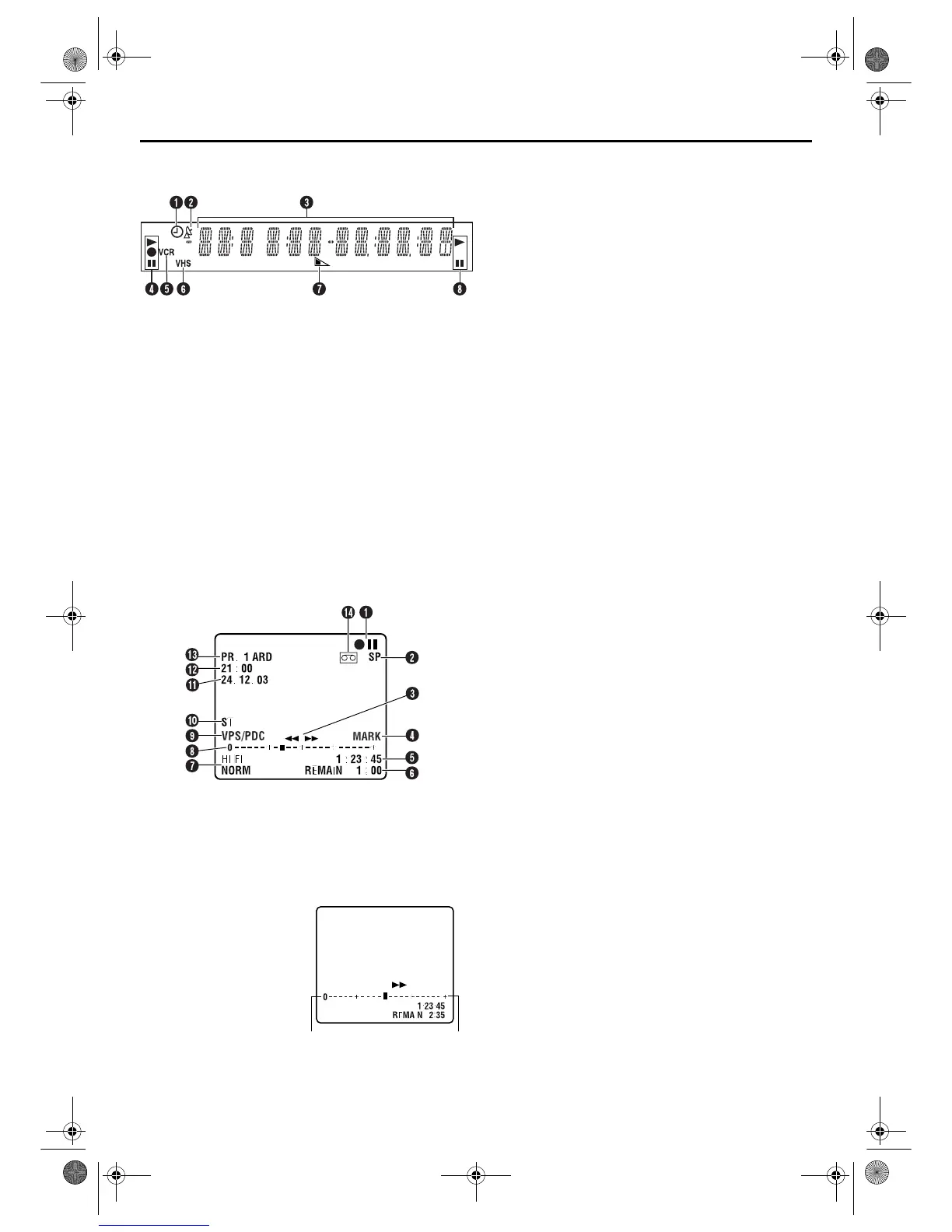

FRONT DISPLAY PANEL
A “Timer” Indicator 墌 pg. 25, 26
B Automatic Satellite Programme Recording Indicator
(N) 墌 pg. 28
C Channel/Clock Display
Mode Display (L-1, L-2, F-1 or SAT*)
* When “L-2 SELECT” is set to “SAT” (墌 pg. 64), “SAT” appears
instead of “L-2”.
Counter Display
Tape Speed (SP/LP)
墌 pg. 21
Multi-information window*
* The current group/title/track/chapter number(s), time and status
information.
D VCR Mode Indicator
E VCR Indicator
墌 pg. 22
F Cassette Type Indicator
G Tape Remaining Time Indicator 墌 pg. 22
H DVD Mode Indicator
ON-SCREEN DISPLAY (VHS deck)
If you press ––:–– on the remote control when “O.S.D.”
is set to “ON” (
墌 pg. 63), various operational indicators
appear on the TV screen.
For On-screen display for DVD deck, refer to “Using the
on-screen bar” (
墌 pg. 35).
A Operation Mode Indicators
B Tape Speed (SP/LP)
C Tape Direction
D Index Mark Indicator (MARK)
墌 pg. 21
E Counter Display
F Tape Remaining Time Indicator
墌 pg. 22
G Audio Mode Display
墌 pg. 20
H Tape Position Indicator
The tape position indicator
appears on the TV screen
when you press 3 or
5 from the Stop mode or
perform an Index Search.
(
墌 pg. 19) The position of
“q” in relation to “0”
(beginning) or “+” (end)
shows you where you are
on the tape.
NOTE:
Depending on the type of tape being used, the tape position
indicator may not appear correctly.
I VPS/PDC Indicator 墌 pg. 24, 26
J Type of Broadcast
墌 pg. 23
K Current Day/Month/Year
L Clock Display
M Channel Position Number and Station Name/Auxiliary
Input Indicator (L-1, L-2, F-1 or SAT*)
* When “L-2 SELECT” is set to “SAT” (墌 pg. 64), “SAT” appears
instead of “L-2”.
N “Cassette Loaded” Mark
Beginning End
