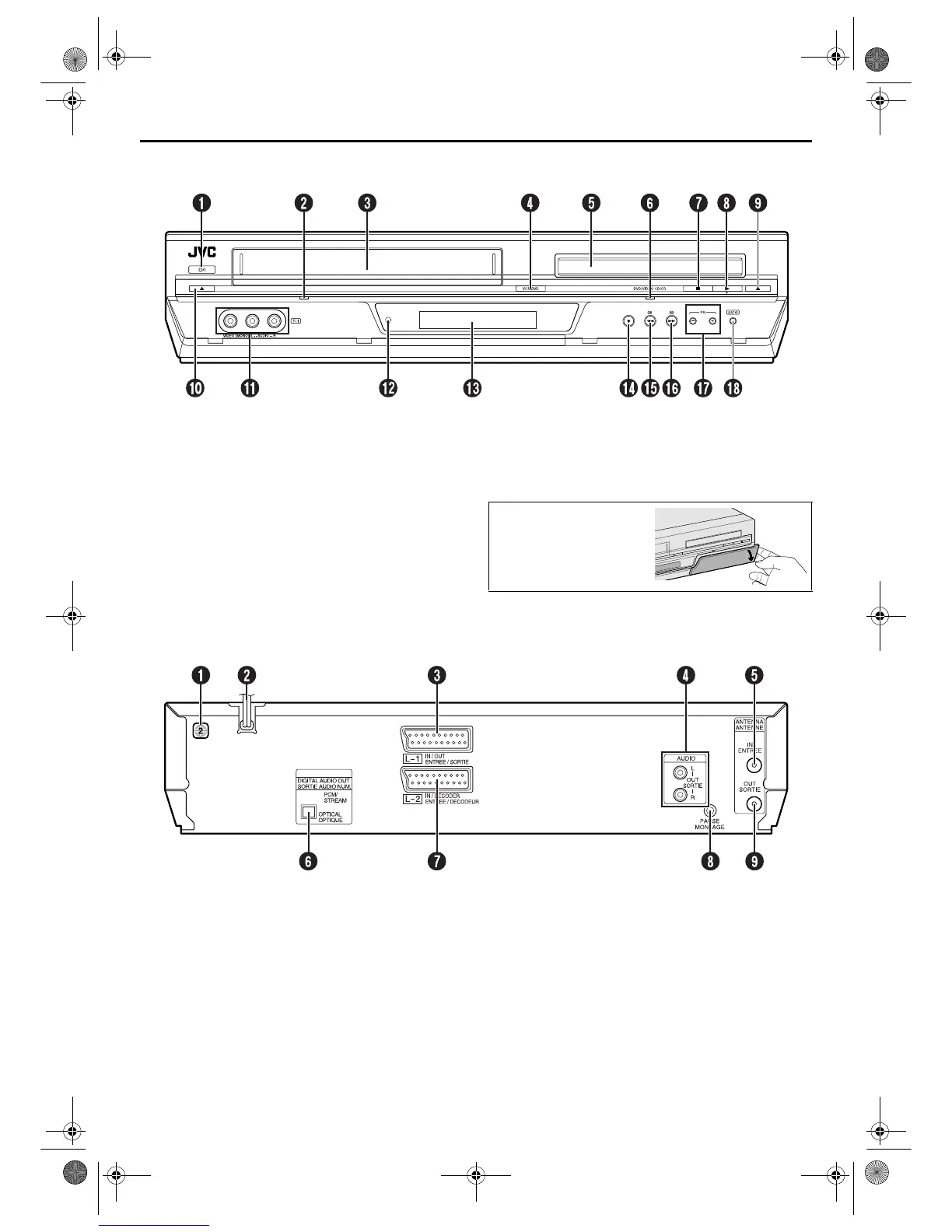

INDEX
FRONT VIEW
A STANDBY/ON Button (1) 墌 pg. 10
B VCR Indicator
墌 pg. 18, 21
C Cassette Loading Slot
D VCR/DVD Button 墌 pg. 18, 21, 30
E Disc Tray
F DVD Indicator 墌 pg. 30
G Stop Button (8)
墌 pg. 18, 21, 30
H Play Button (4)
墌 pg. 18, 30
I DVD Open/Close Button (x)
墌 pg. 30
J Cassette Eject Button (x)
墌 pg. 18, 21
K Video/Audio Input Connectors (VIDEO/AUDIO)
墌 pg. 54
L Infrared Beam Receiving Window
M Front Display Panel
墌 pg. 7
N Record Button (7)
墌 pg. 21
O Rewind Button (3)
墌 pg. 18, 19, 32
P Fast Forward Button (5)
墌 pg. 18, 19, 32
Q Programme Button (PR +/–)
墌 pg. 21
R Automatic Satellite Programming Button (SAT#)
墌 pg. 28
REAR VIEW
A Region Number Label 墌 pg. 4
B Mains Power Cord
墌 pg. 9
C L-1 Input/Output Connector (L-1 IN/OUT)
墌 pg. 9,
55, 60, 61
D Audio Output Connectors (AUDIO OUT (L/R))
E Antenna Input Connector (ANTENNA IN)
墌 pg. 9
F Digital Audio Output Connector
(DIGITAL AUDIO OUT)
墌 pg. 57, 61
G L-2 Input/Decoder Connector
(L-2 IN/DECODER) 墌 pg. 55, 60, 61
H Remote Pause Connector (PAUSE)
墌 pg. 54
I
Antenna Output Connector (ANTENNA OUT)
墌
pg. 9
To access covered
connectors or buttons, pull
and open the cover.
DVD
