JVC JL-A15 Service Manual

*

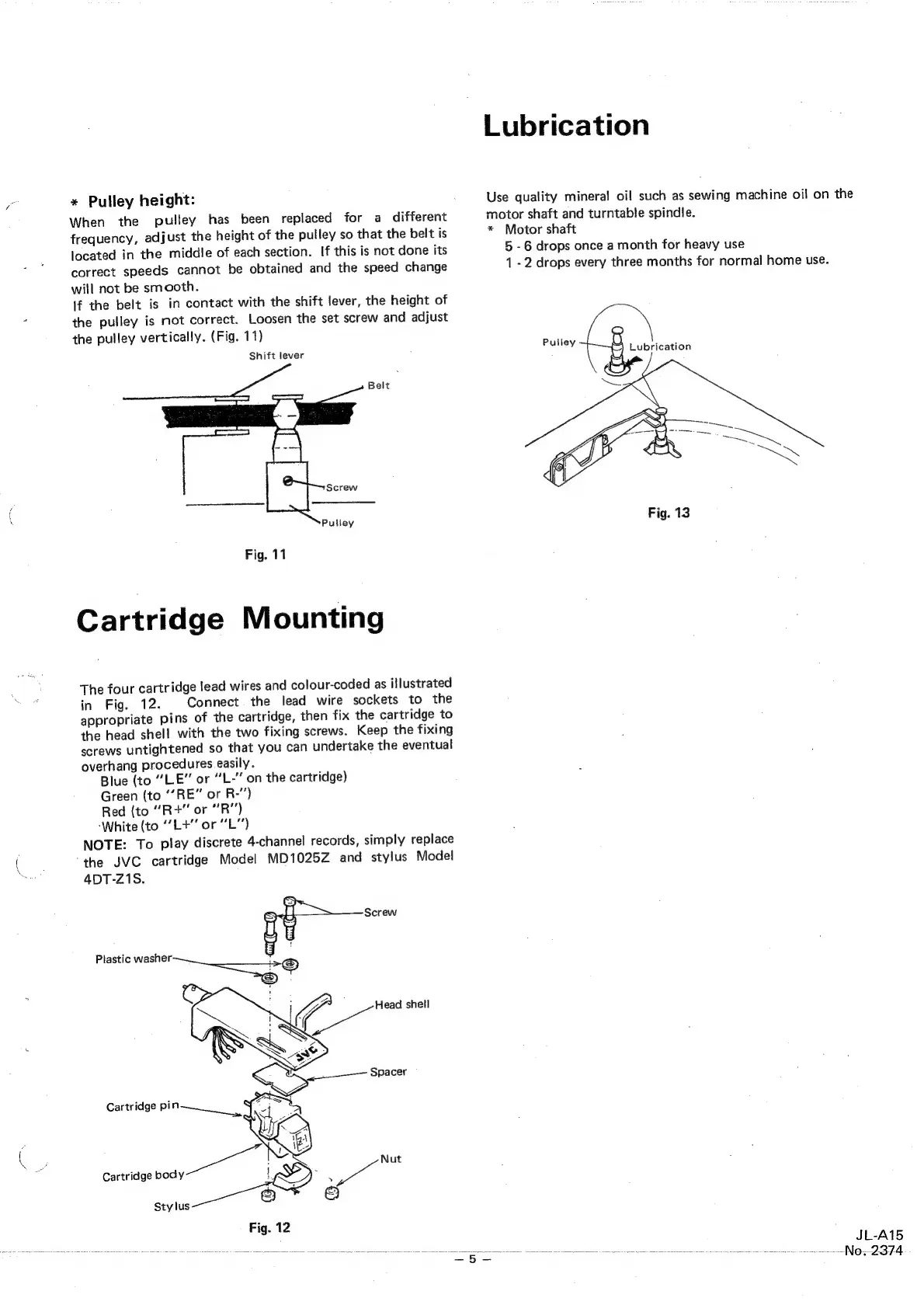

Pulley
height:
When
the
pulley
has
been
replaced
for
a
different
frequency,
adjust
the
height
of
the
pulley
so
that
the
belt
is
located
in
the
middle
of
each
section.
If
this
is
not
done
its
correct
speeds
cannot
be
obtained
and
the
speed
change
will
not
be
smooth.
lf
the
belt
is
in
contact
with
the
shift
lever,
the
height
of
the
pulley
is
mot
correct.
Loosen
the
set
screw
and
adjust
the
pulley
vertically.
(Fig.
11)
Shift lever
Beit
Cartridge
Mounting
The
four
cartridge
lead
wires
and
colour-coded
as
illustrated
in
Fig.
12.
Connect
the
lead
wire
sockets
to
the
appropriate
pins
of
the
cartridge,
then
fix
the
cartridge
to
the
head
shell
with
the
two
fixing
screws.
Keep
the
fixing
screws
untightened
so
that
you
can
undertake
the
eventual
overhang
procedures
easily.
Blue
(to
“LE”
or
“L-”’
on
the
cartridge)
Green
(to
‘“RE”
or
R-”)
Red
(to
“R+"
or
“R")
‘White
(to
““L+"
or
“L”)
NOTE:
To
play
discrete
4-channel
records,
simply
replace
“the
JVC
cartridge
Model
MD10252
and
stylus
Model
4DT-Z15S.
Oy
aa shell
at
Cartridge body
Stylus
Lubrication
Use
quality
mineral
oi!
such
as
sewing
machine
oil
on
the
motor
shaft
and
turntable
spindle.
*
Motor
shaft
5 -6 drops once a month for heavy use
1
-2
drops
every
three
months
for
normal
home
use.
Pulley
Lubrication
JL-A15
a NO:-2374
