JVC JX-S100 User Manual

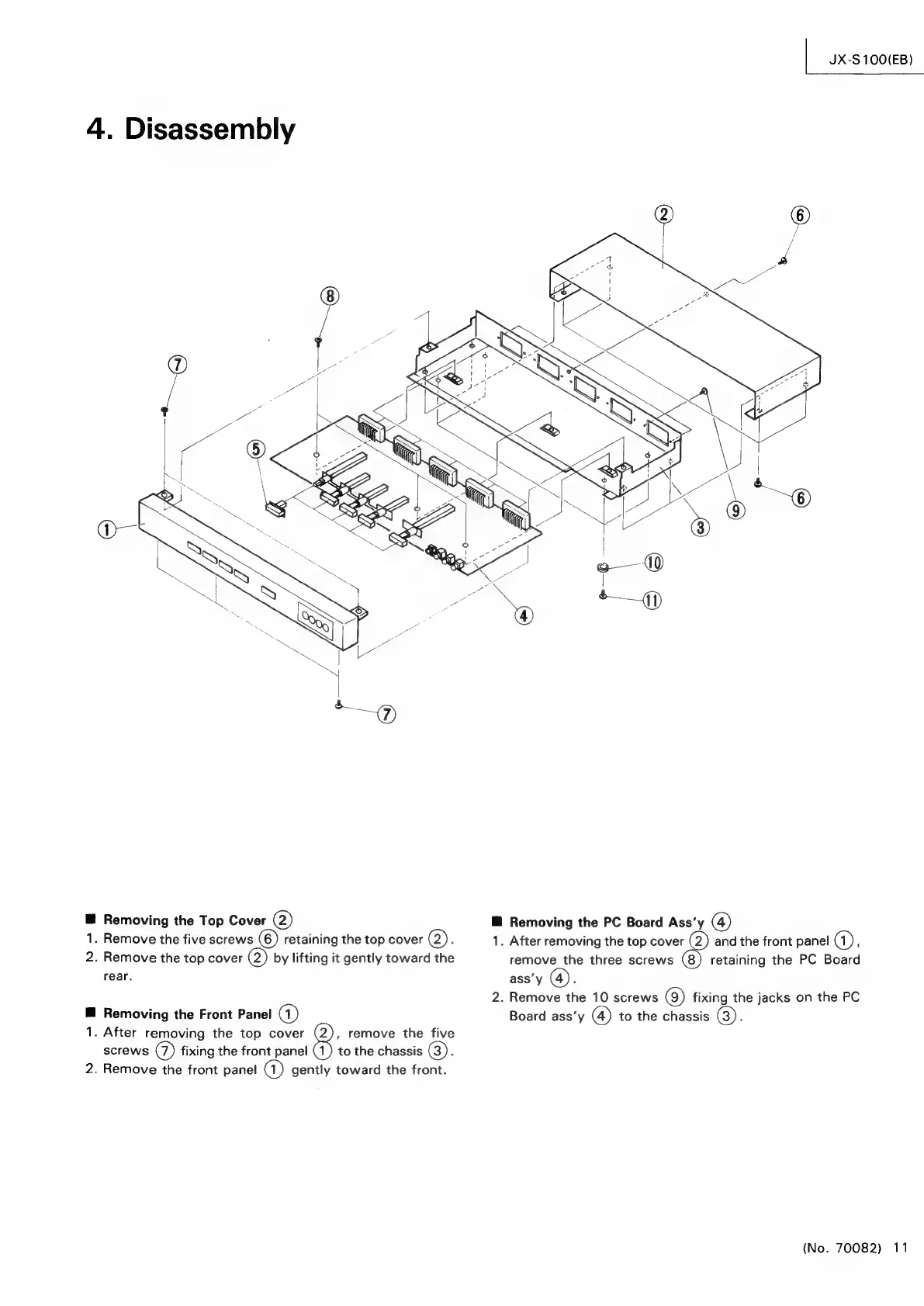

4. Disassembly
| JX-S100(EB)
@ Removing the Top Cover 2)
1. Remove the five screws 6) retaining the top cover 2) ;
2. Remove the top cover (2) by lifting it gently toward the
rear.
M@ Removing the Front Panel @)
1. After removing the top cover , remove the five
screws @® fixing the front panel eS to the chassis 3) B
2. Remove the front panel @) gently toward the front.
@ Removing the PC Board Ass’y (4)
1. After removing the top cover (2) and the front panel QQ) i
remove the three screws retaining the PC Board
ass’y ).
2. Remove the 10 screws (9) fixing the jacks on the PC
Board ass’y @) to the chassis
(No. 70082) 11
