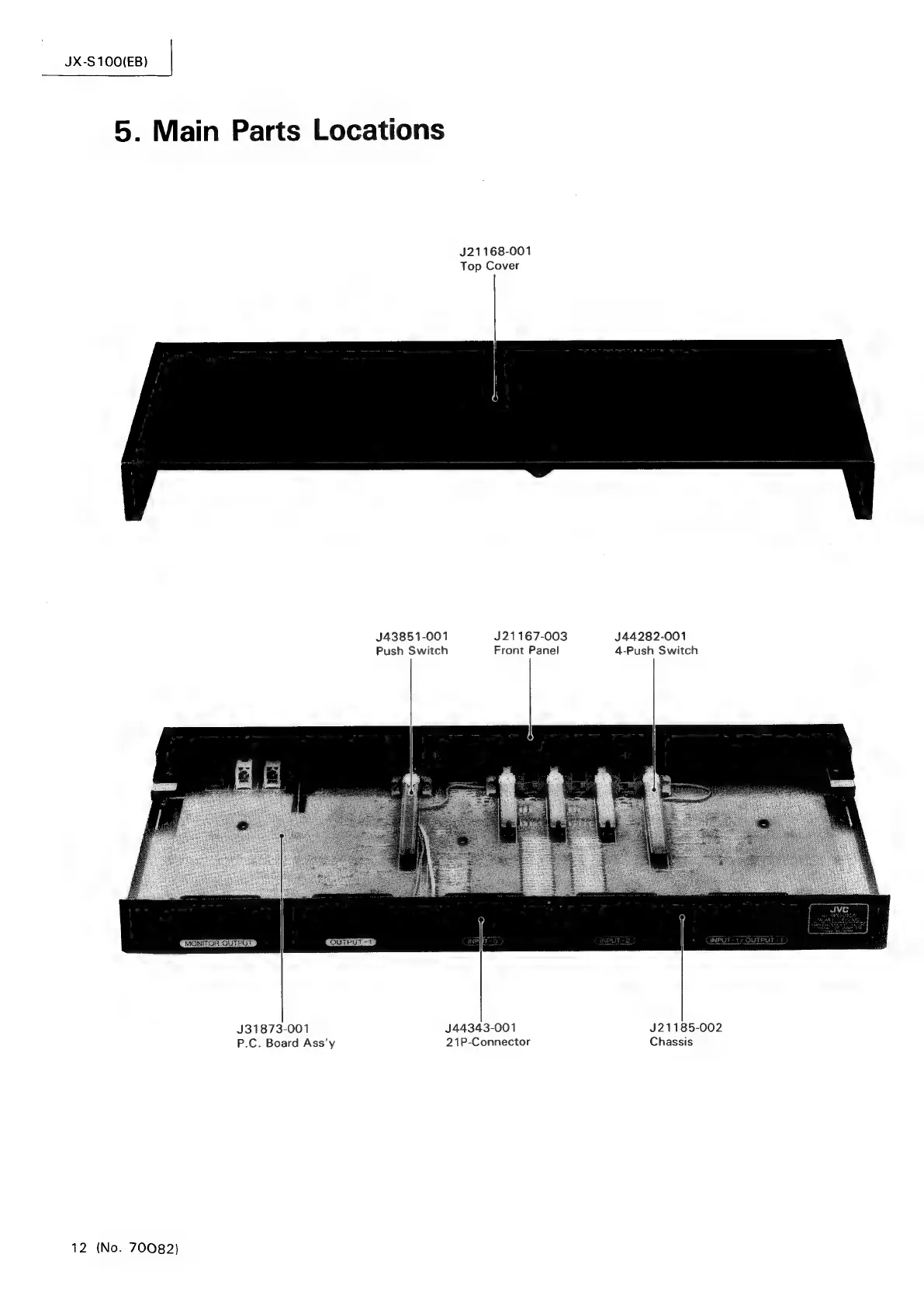

JX-S
100(EB)
5.
Main
Parts
Locations
J21168-001
Top
Cover
J43851-001
J21167-003
J44282-001
Push
Switch
Front
Panel
4-Push
Switch
J31873-001
J44343-001
J21185-002
P.C.
Board
Ass’y
21P-Connector
Chassis
12
(No.
70082)
